Pioneer XV-E51 - Loading Mechanism Assy

XV-EV51
12
1234
1234
C
D
F
A
B
E

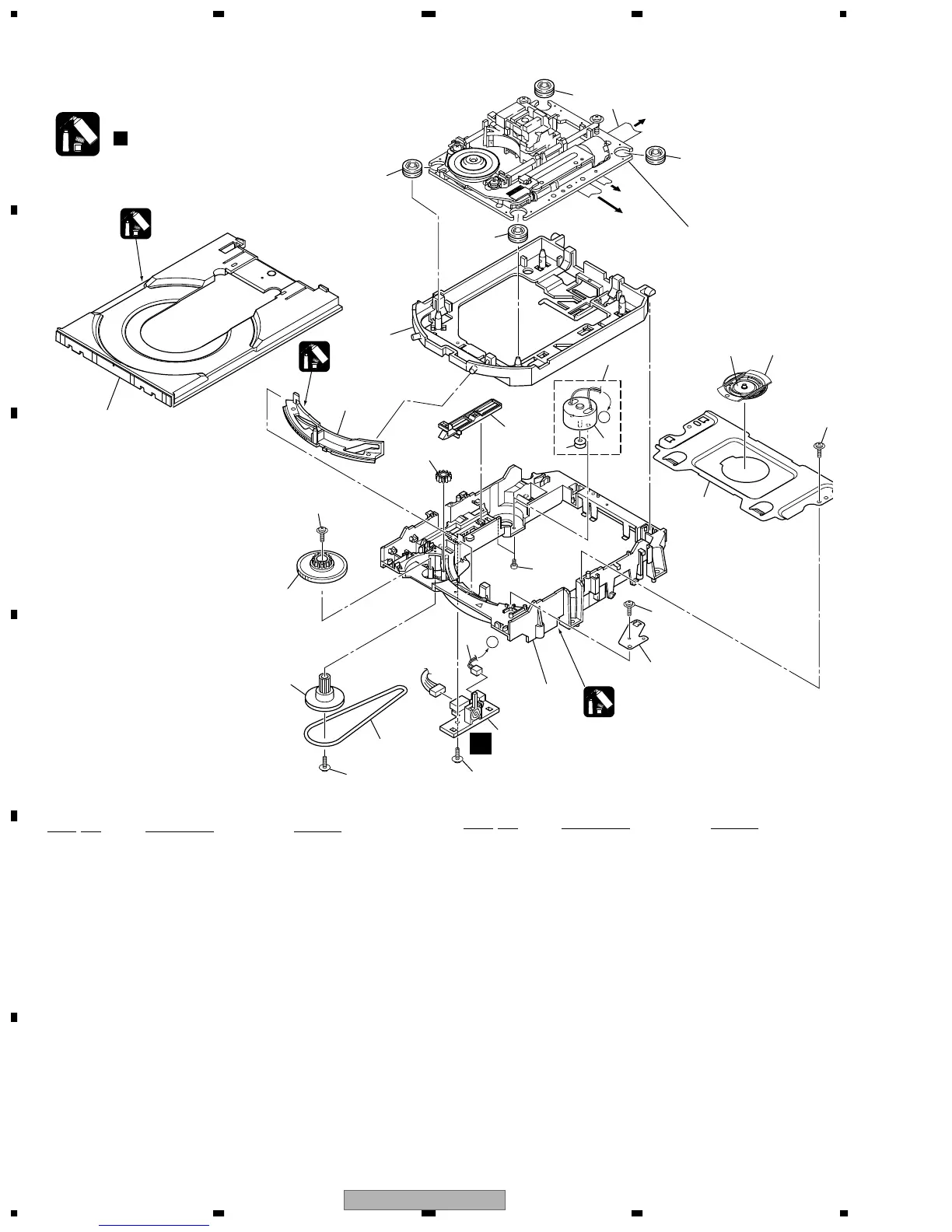

2.4 LOADING MECHANISM ASSY
LOADING MECHANISM ASSY parts List
A
A
To
DVDM
CN8
To DVDM
CN4
To DVDM
CN2
2
3
5
4
12
23
13
17
21
16
22
15
14
22 22
22
2
2
20
18
19
9
1
7
11
10
6
8
8
8
8
D
Refer to
"2.5 TRAVERSE MECHANISM
ASSY-S".
Lubricating Oil
GYA1001
Daifree
GEM1036
Refer to
" Application of Lubricant".
Note :
Lubricating Oil
GYA1001
Mark No. Description Part No.
NSP 1 LOAB Assy VWG2346
2 Traverse Mechanism Assy-S VXX2858
3 Loading Motor Assy VXX2505
4 Motor Pulley PNW1634
5 Carriage DC Motor / 0.3W PXM1027
6 Flexible Cable (26P) VDA1864
7 Connector Assy 2P VKP2253
8 Float Rubber VEB1327
9 Belt VEB1330
10 Stabilizer VNE2253
11 Loading Base VNL1917
12 Float Base DVD VNL1918
13 Drive Cam VNL1919
14 Gear Pulley VNL1921
15 Loading Gear VNL1922
16 Drive Gear VNL1923
17 SW Lever VNL1925
18 Clamper Plate VNE2251
19 Bridge VNE2252
20 Clamper VNL1924
21 Screw JGZ17P028FMC
22 Screw Z39-019
23 Tray VNL1920
Mark No. Description Part No.
