Pioneer XV-E51 - DVD Section Adjustment Items; Mechanism and Electrical Adjustments; Mechanism Adjustment Points

XV-EV51
76
1234
1234
C
D
F
A
B
E

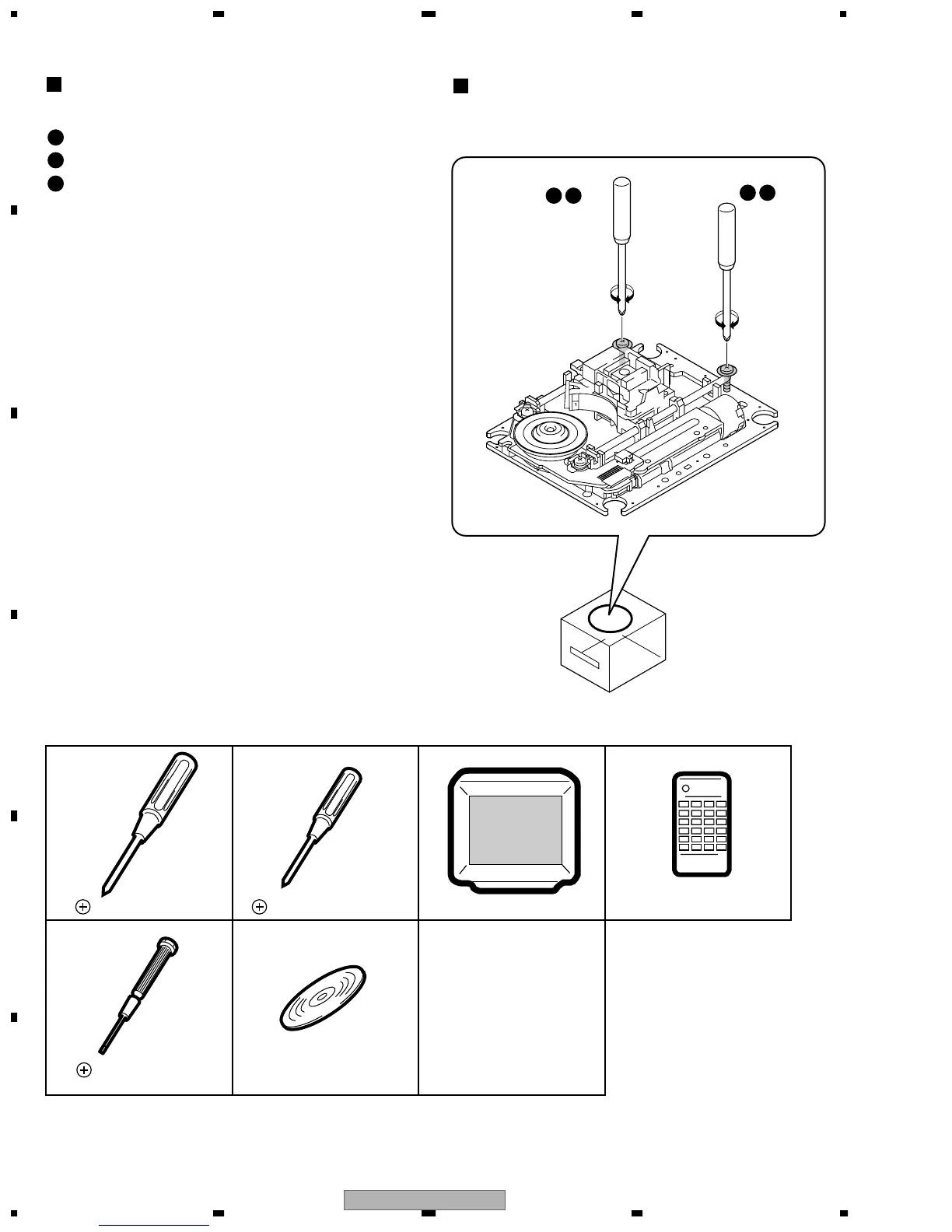

6.3 DVD SECTION ADJUSTMENT ITEMS ana LOCATION
6.4 JIGS and MEASURING INSTRUMENTS
1
1 2
2
3
Tangential
adjustment
screw
1 2
Radial
adjustment
screw
Adjustment Items
[Mechanism Part]
[Electrical Part]
Tangential and Radial Height Coarse Adjustment
DVD Jitter Adjustment
Initialize the Focus Sweep Setting
Electrical adjustments are not required.
Adjustment Points (Mechanism Part)
Cautions: After adjustment, adjustment screw locks with the
Screw tight.
Screwdriver (large)
TV monitor
Precise screwdriver
DVD test disc
(GGV1025)
Test mode remote control
unit (GGF1067)
Screw tight
(GYL1001)
Screwdriver (medium)
