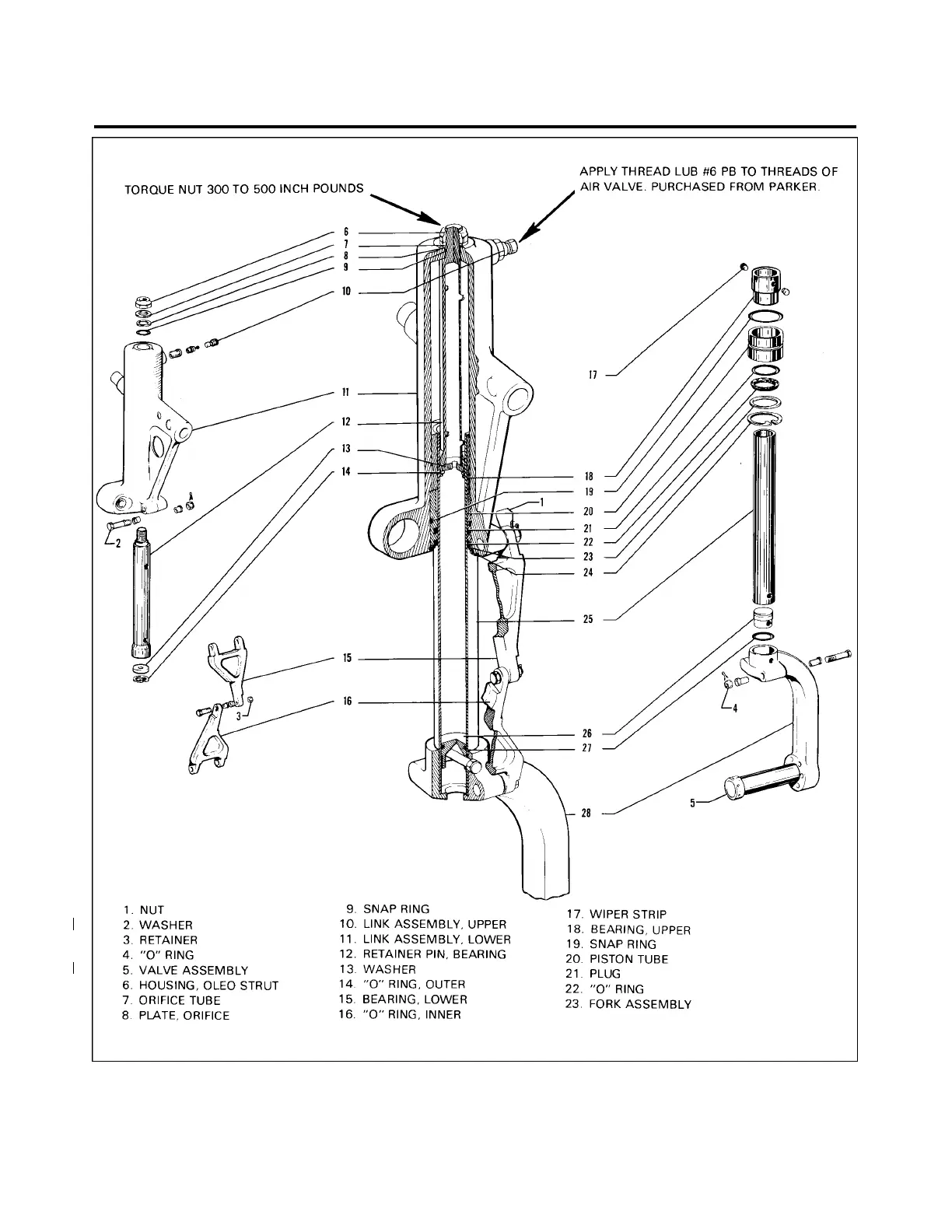

Figure 32-1. Main Gear Oleo Strut Assembly
32-10-02
Page 32-09
Revised: July 13, 1983
2D16
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
