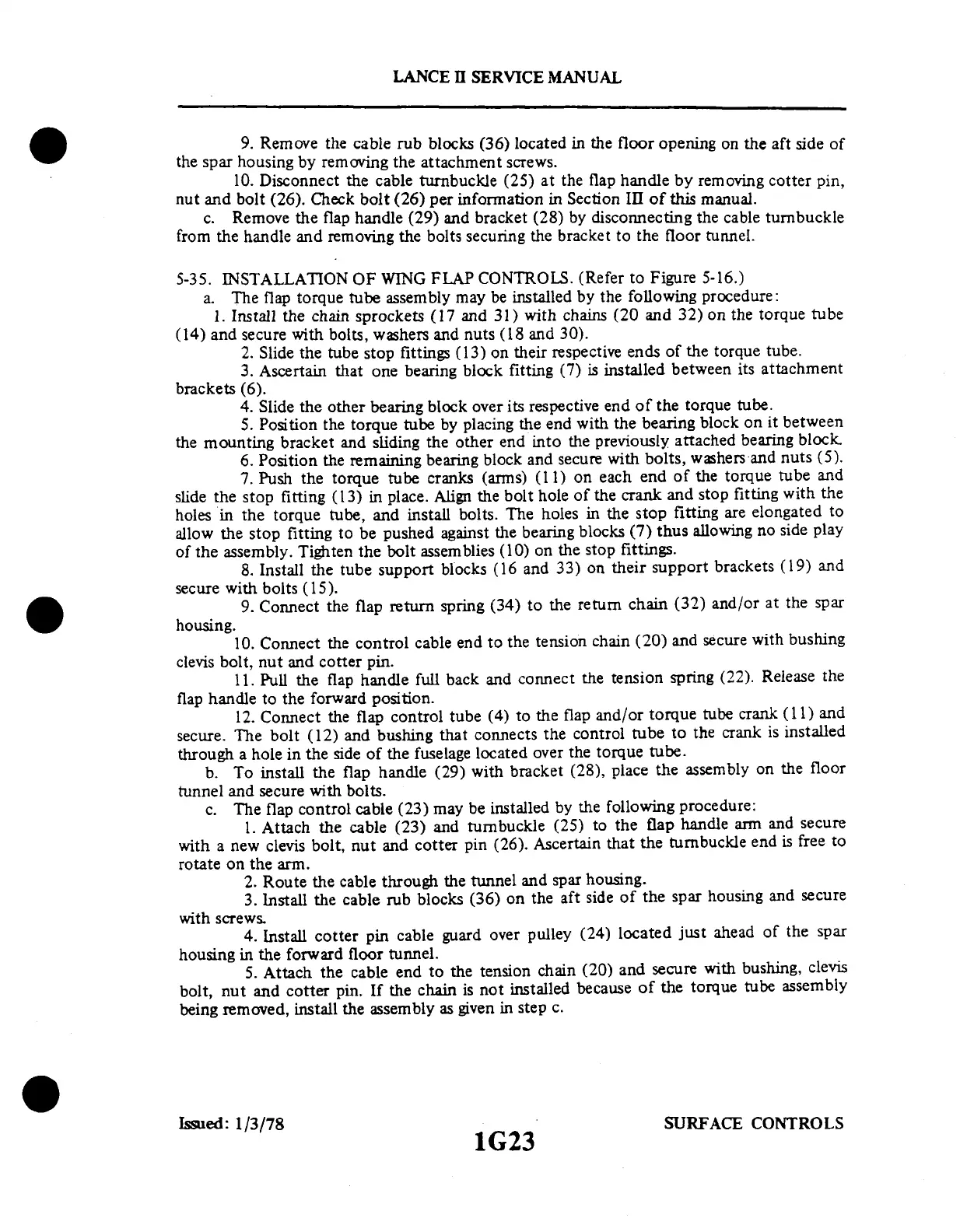

LANCE
II SERVICE
MANUAL
9. Remove
the cable
rub blocks
(36) located
in the
floor opening
on the aft
side of
the
spar
housing
by
removing
the
attachment
screws.
10.
Disconnect
the cable
turnbuckle
(25) at
the flap
handle
by
removing
cotter
pin,
nut
and bolt
(26).
Check
bolt
(26) per
information
in Section
III
of this
manual.
c. Remove
the
flap handle
(29) and
bracket
(28) by
disconnecting
the
cable turnbuckle
from
the handle
and removing
the
bolts securing
the bracket
to the floor
tunnel.
5-35.
INSTALLATION
OF WING
FLAP CONTROLS.
(Refer to Figure
5-16.)
a. The flap
torque tube assembly
may be installed
by the following
procedure:
1. Install
the chain
sprockets (17
and 31)
with chains
(20 and 32)
on the torque
tube
(14) and
secure
with bolts,
washers
and
nuts (18
and 30).
2. Slide
the tube
stop fittings
(13) on
their respective
ends
of the torque
tube.
3. Ascertain
that one
bearing block fitting
(7) is installed
between its attachment
brackets
(6).
4. Slide
the other
bearing
block over
its respective
end
of the torque
tube.
5.
Position the
torque tube
by placing
the end with
the bearing
block on
it between
the
mounting
bracket
and sliding
the other
end
into the previously
attached
bearing block.
6. Position the
remaining bearing
block and secure
with bolts, washers
and nuts (5).
7. Push the
torque tube cranks
(arms) (11)
on each end of
the torque tube
and
slide the
stop fitting (13)
in place.
Align the bolt
hole of the
crank and stop
fitting with
the
holes in the
torque tube, and install
bolts. The holes
in the stop fitting
are elongated
to
allow
the stop fitting
to be pushed against
the bearing blocks
(7) thus allowing
no side play
of the assembly.
Tighten
the bolt assemblies
(10) on
the stop fittings.
8. Install the tube
support blocks (16 and 33) on their
support brackets (19) and
secure
with bolts
(15).
9. Connect the
flap return spring
(34) to the return
chain (32) and/or
at the spar
housing.
10.
Connect the control
cable end to
the tension chain
(20) and secure with
bushing
clevis bolt, nut and cotter pin.
11. Pull the flap
handle full back
and connect the
tension spring (22).
Release the
flap
handle
to the
forward
position.
12. Connect
the flap control tube (4) to the flap
and/or torque tube crank (11) and
secure. The bolt (12) and
bushing that connects the control tube
to the crank is installed
through a hole in the
side of the fuselage located over
the torque tube.
b. To install the flap handle
(29) with bracket (28), place the
assembly on the floor
tunnel
and secure
with bolts.
c. The flap control
cable (23) may be installed
by the following procedure:
1. Attach the cable
(23) and turnbuckle
(25) to
the flap handle
arm and secure
with
a new clevis bolt, nut and cotter pin
(26). Ascertain that the turnbuckle end
is free to
rotate on the arm.
2.
Route the cable through
the tunnel and spar housing.
3. Install
the cable rub
blocks (36) on the
aft side of the
spar housing and
secure
with screws.
4.
Install cotter pin
cable guard over
pulley (24) located
just ahead
of the spar
housing in the
forward floor
tunnel.
5. Attach
the cable end
to the tension
chain (20) and secure
with bushing,
clevis
bolt,
nut and cotter pin. If the chain is not
installed because of the torque tube
assembly
being removed,
install the assembly
as given in step c.
Issued:
1/3/78
SURFACE
CONTROLS
1G23
