LANCE
II
SERVICE
MANUAL
NOTE
ON
McCAULEY
NOSE
WHEEL
ASSEMBLIES
ONLY,
BUSHING
(19)
IS
REQUIRED
TO
PREVENT
TUBE
MOVEMENT.
19
17
3
5
1.
SNAP
RING
2.
RING,
GREASE
RETAINER
3. FELT
RING
4.
RING.
GREASE
SEAL
S. BEARING
CUP
6.
BEARING
CONE
7. WHEEL
HALF
8. NUT
9.
WASHER
10. WHEEL
HALF
11. BEARING
CUP
12. BEARING
CONE
13.
RING.
GREASE
SEAL
14. FELT RING
IS.
RING.
GREASE
RETAINER
16. SNAP RING
17. WASHER
18. BOLT
19. RUBBER
BUSHING
12
13
14
IS

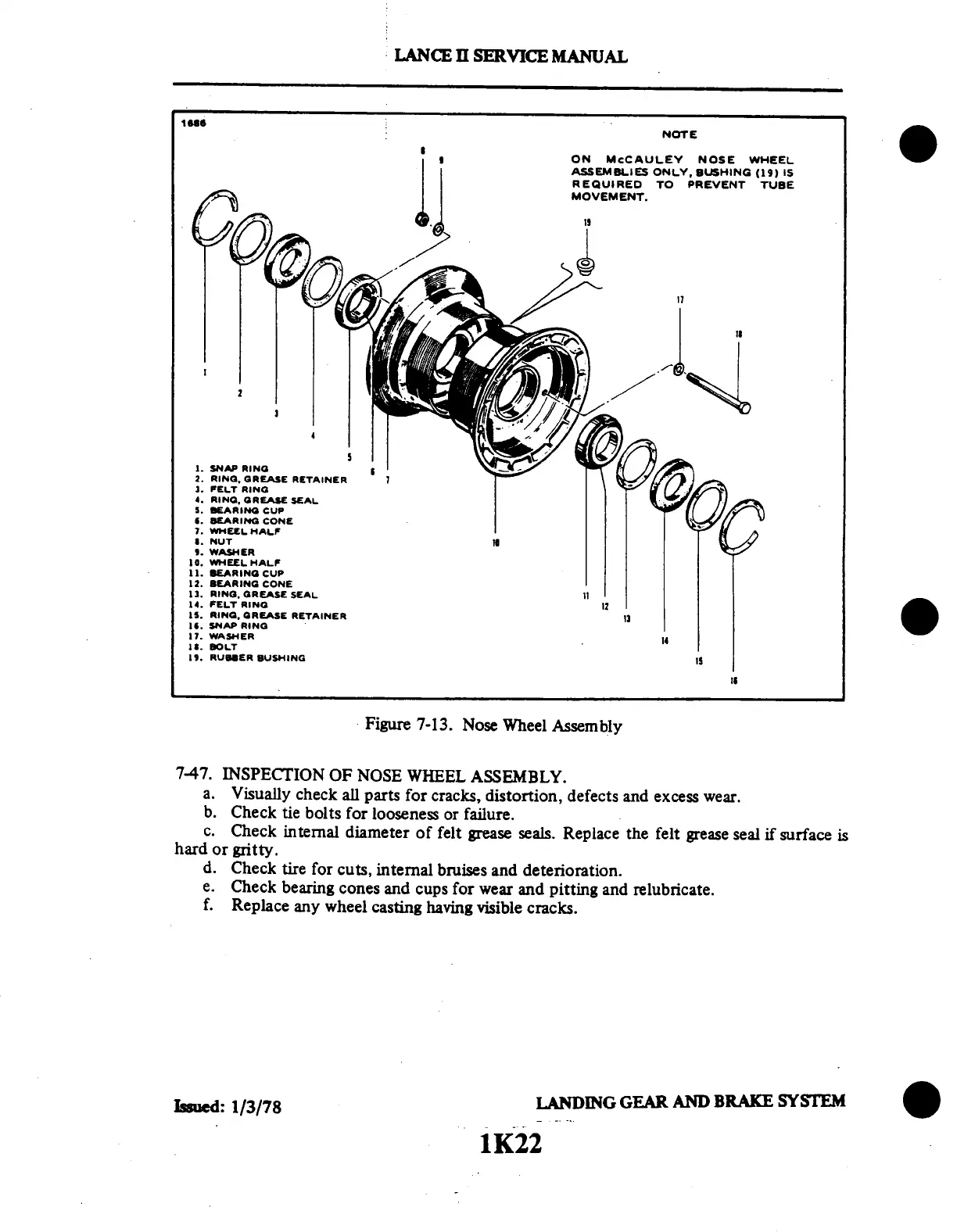

Figure
7-13.
Nose
Wheel
Assembly
7-47.
INSPECTION
OF
NOSE
WHEEL
ASSEMBLY.
a.
Visually
check
all
parts
for
cracks,
distortion,
defects
and
excess
wear.
b.
Check
tie
bolts
for
looseness
or
failure.
c.
Check
internal
diameter
of
felt
grease
seals.
Replace
the
felt
grease
seal
if
surface
is
hard
or gritty.
d.
Check
tire
for
cuts,
internal
bruises
and
deterioration.
e.
Check
bearing
cones
and
cups
for
wear
and
pitting
and
relubricate.
f.
Replace
any
wheel
casting
having
visible
cracks.
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1K22
