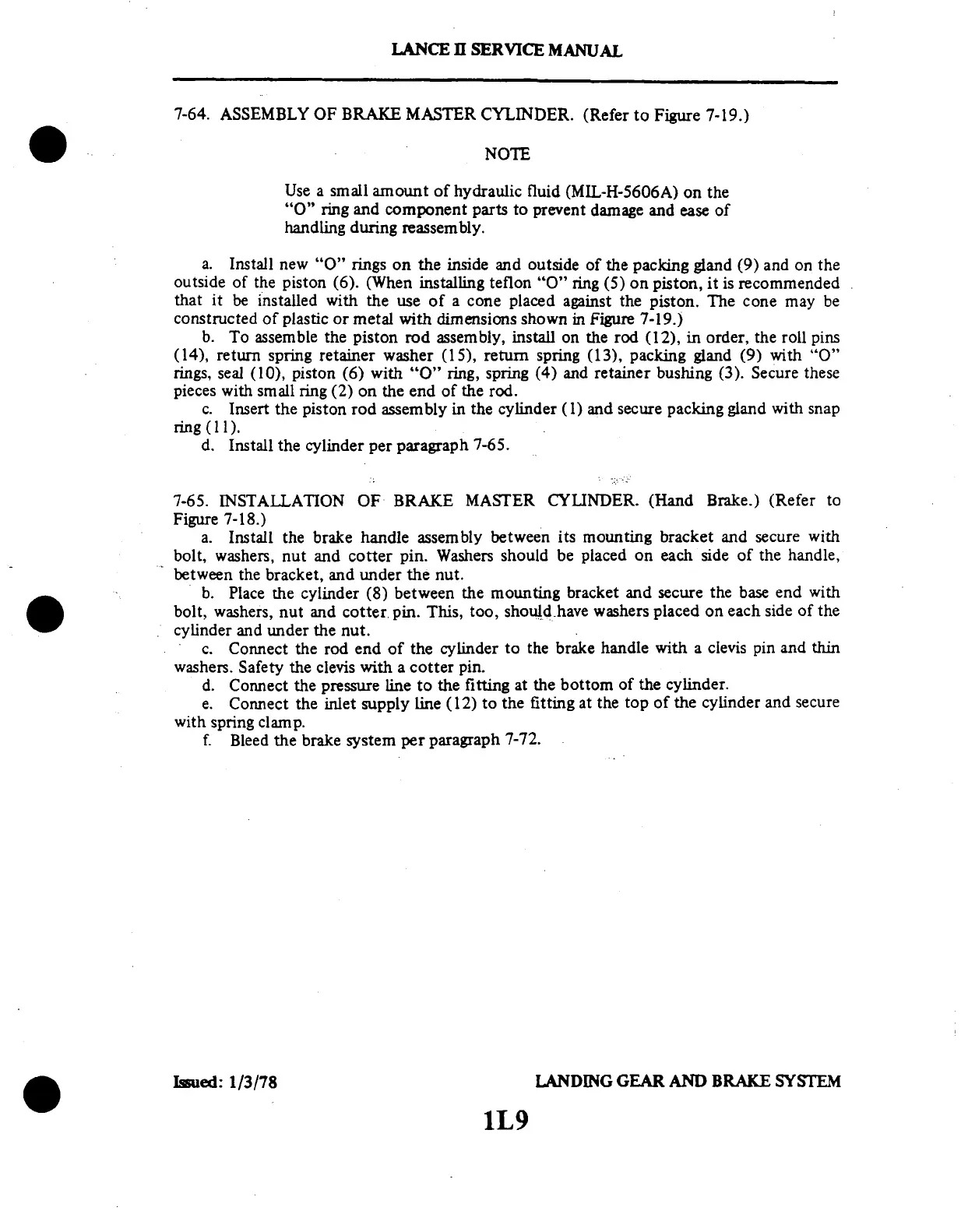

LANCE
II
SERVICE
MANUAL
7-64.
ASSEMBLY
OF
BRAKE
MASTER
CYLINDER.
(Refer
to
Figure
7-19.)
NOTE
Use
a
small
amount
of
hydraulic
fluid
(MIL-H-5606A)
on
the
"O"
ring
and
component
parts
to
prevent
damage
and
ease
of
handling
during
reassembly.
a.
Install
new
"0"
rings
on the
inside and
outside
of
the
packing
gland
(9)
and
on
the
outside
of
the
piston
(6).
(When
installing
teflon
"0"
ring
(5)
on
piston,
it
is
recommended
that
it
be
installed
with
the
use
of
a
cone
placed
against
the
piston.
The cone
may
be
constructed
of
plastic
or
metal
with
dimensions
shown
in
Figure 7-19.)
b.
To
assemble
the
piston
rod
assembly,
install
on
the
rod
(12),
in order,
the
roll
pins
(14),
return
spring
retainer
washer
(15),
return
spring
(13),
packing
gland
(9)
with
"O"
rings,
seal
(10),
piston
(6)
with
"0"
ring,
spring
(4) and
retainer
bushing
(3). Secure
these
pieces
with small
ring
(2)
on
the
end
of
the rod.
c.
Insert
the piston
rod
assembly
in
the
cylinder
(1)
and secure
packing
gland
with
snap
ring(ll).
d.
Install
the cylinder
per paragraph
7-65.
7-65.
INSTALLATION
OF
BRAKE
MASTER
CYLINDER.
(Hand
Brake.)
(Refer
to
Figure
7-18.)
a.
Install
the brake
handle
assembly
between
its
mounting
bracket
and
secure
with
bolt,
washers,
nut
and
cotter
pin.
Washers
should
be
placed
on
each
side
of
the
handle,
between
the
bracket,
and
under
the
nut.
b.
Place
the
cylinder
(8)
between
the
mounting
bracket
and
secure the
base
end
with
bolt,
washers,
nut
and
cotter
pin.
This,
too,
should-have
washers
placed
on
each
side
of
the
cylinder
and
under
the
nut.
c.
Connect
the rod
end
of
the
cylinder
to
the
brake
handle
with
a
clevis
pin
and
thin
washers.
Safety
the
clevis
with
a
cotter
pin.
d.
Connect
the
pressure
line
to
the
fitting
at
the
bottom
of
the
cylinder.
e.
Connect
the
inlet
supply
line
(12)
to
the
fitting
at
the
top
of
the
cylinder
and secure
with
spring clamp.
f.
Bleed
the
brake
system
per
paragraph
7-72.
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1L9
