LANCE
II SERVICE
MANUAL
16
1. SPRING CLIP . CLEVIS PIN, WASHER & COTTER PIN
2. TOE BRAKE PEDAL 10. CLEVIS PIN, WASHER & COTTER PIN
3.
ARM, TRIM CONTROL ATTACHMENT
11. SPRING,
RETURN
4. CLEVIS PIN, WASHER & COTTER PIN 12. BRACKET
5. CLEVIS ASSEMBLY 13. BRACE ASSEMBLY
.
CLEVIS PIN
14. CYLINDER ASSEMBLY,
HYDRAULIC
7. ARM, IDLER
15. TUBE ASSEMBLY,
LEFT
8.
JAM NUT
17. CLEVIS PIN &
COTTER PIN
17. HOSE ASSEMBLY - FLEXIBLE
18. TUBE ASSEMBLY, RIGHT
19. PEDAL
PADS

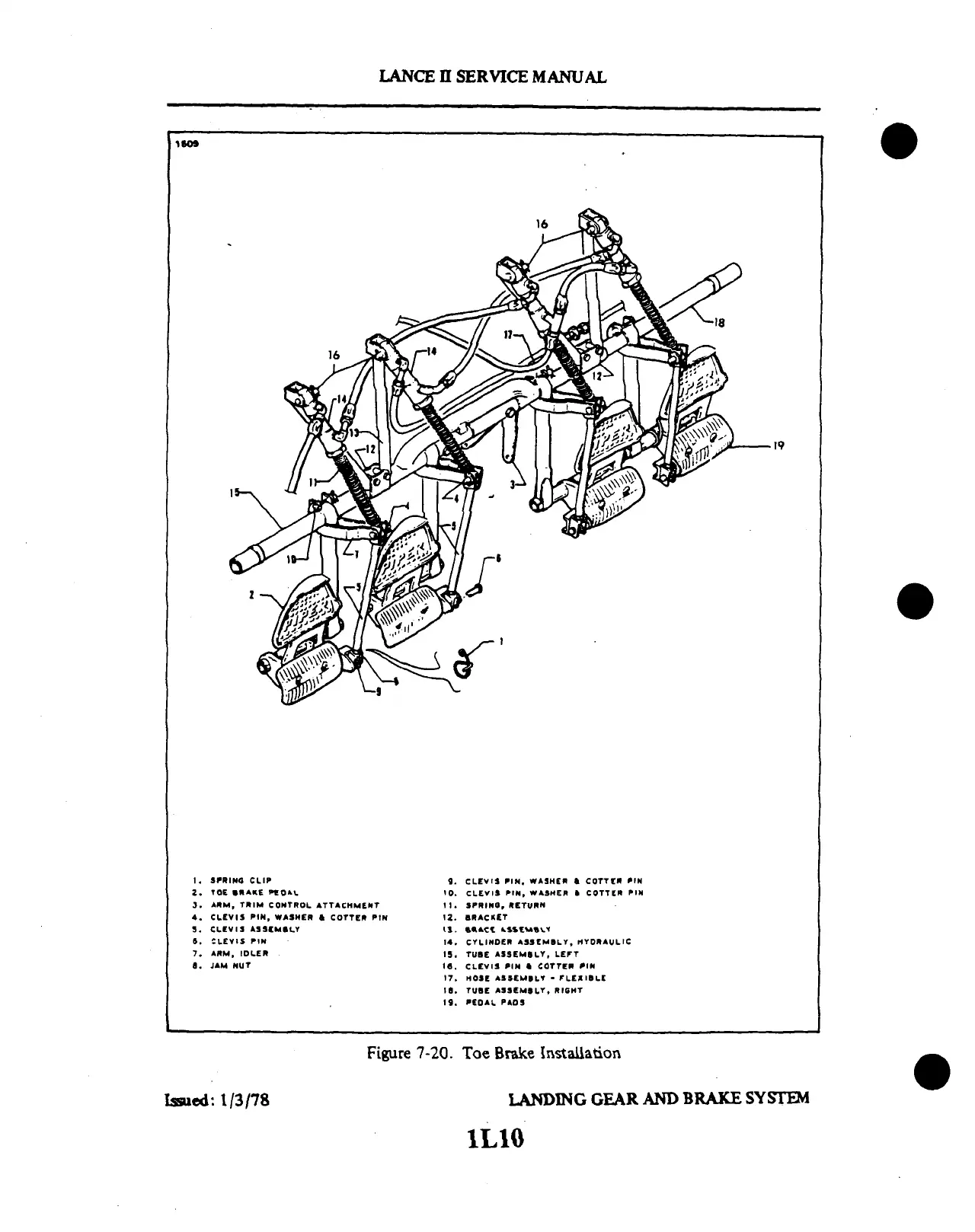

Figure
7-20. Toe
Brake
Installation
Issued:
1/3/78
LANDING GEAR AND BRAKE
SYSTEM
1L10
