LANCE IISERVICE MANUAL

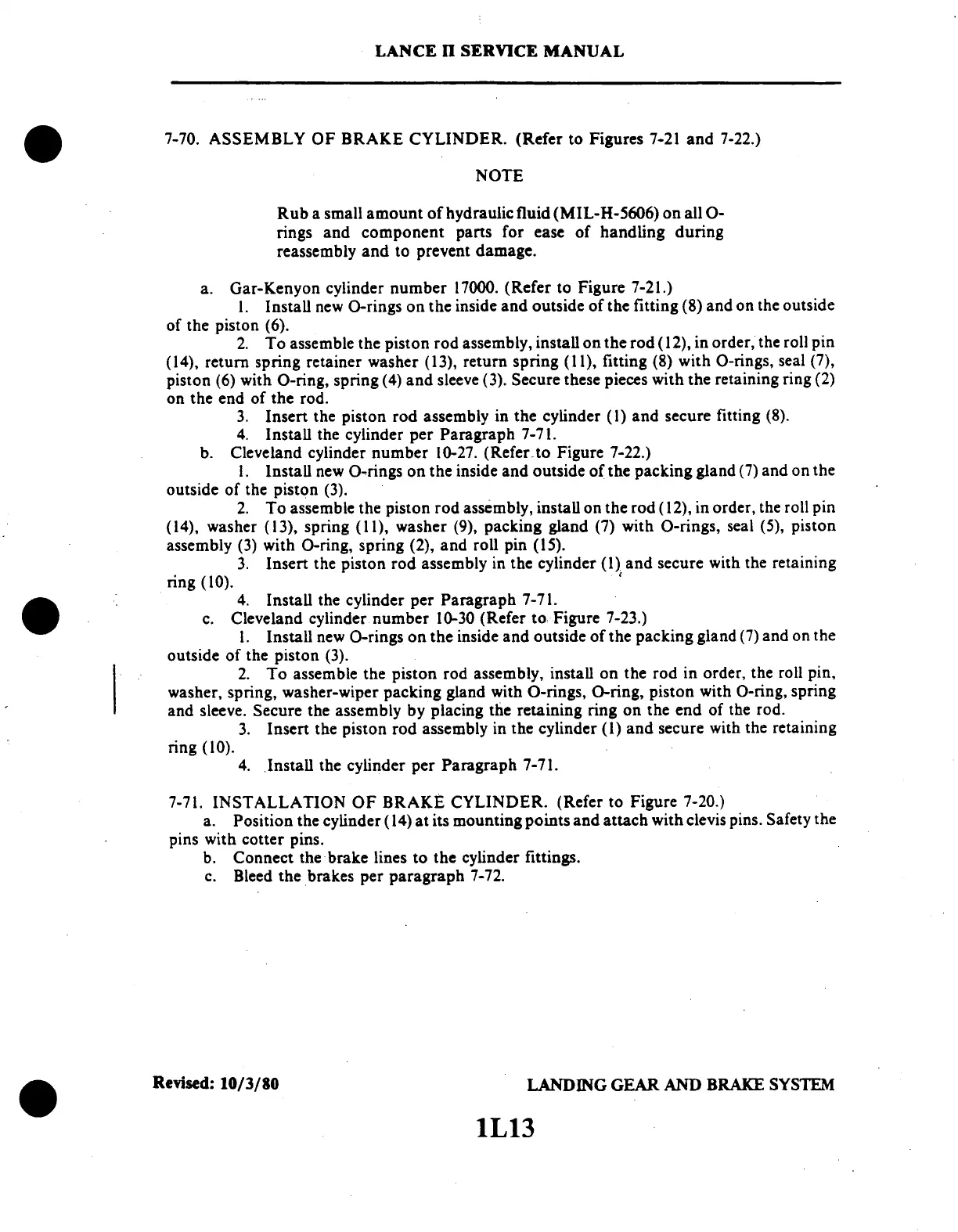

7-70. ASSEMBLY OF BRAKE
CYLINDER. (Refer to Figures
7-21 and 7-22.)
NOTE
Rub
a small amount
of hydraulic
fluid (MIL-H-5606)
on all O-
rings
and component
parts
for ease
of handling
during
reassembly
and
to prevent
damage.
a. Gar-Kenyon
cylinder
number 17000.
(Refer to
Figure 7-21.)
1. Install
new -rings
on the inside
and outside
of the fitting
(8) and
on the outside
of the
piston
(6).
2.
To assemble
the piston
rod assembly,
install
on the rod (12),
in order,
the roll pin
(14),
return spring
retainer
washer (13),
return spring
(11), fitting
(8) with O-rings,
seal (7),
piston (6) with O-ring, spring (4) and sleeve (3). Secure these pieces with the retaining ring (2)
on the end of the rod.
3. Insert the piston rod
assembly in the cylinder (1)
and secure fitting (8).
4. Install
the cylinder
per
Paragraph
7-71.
b.
Cleveland cylinder number
10-27. (Refer-to Figure
7-22.)
1. Install new
O-rings on the
inside and outside
of the packing gland
(7) and on the
outside of the piston (3).
2.
To assemble
the piston
rod assembly,
install on
the rod (12),
in order, the
roll pin
(14),
washer
(13), spring
(11), washer
(9),
packing
gland (7)
with O-rings,
seal
(5), piston
assembly (3)
with O-ring,
spring
(2), and roll
pin (15).
3.
Insert the piston
rod assembly in
the cylinder (1)
and secure with the
retaining
ring
(10).
4.
Install the
cylinder
per Paragraph
7-71.
c. Cleveland
cylinder number
10-30
(Refer to Figure
7-23.)
1.
Install new O-rings
on the inside
and outside of the
packing gland (7)
and on the
outside
of the
piston
(3).
2. To assemble
the
piston rod
assembly,
install on the
rod in order,
the roll
pin,
washer,
spring, washer-wiper
packing gland
with O-rings,
O-ring, piston
with O-ring,
spring
and sleeve.
Secure the assembly
by placing
the retaining ring
on the end of the
rod.
3.
Insert the
piston rod
assembly in
the cylinder
(1) and secure
with
the retaining
ring (10).
4. Install
the cylinder
per Paragraph 7-71.
7-71.
INSTALLATION
OF BRAKE
CYLINDER.
(Refer to Figure
7-20.)
a. Position
the cylinder
(14) at its
mounting points
and attach
with clevis
pins. Safety
the
pins with
cotter
pins.
b.
Connect the
brake lines
to the
cylinder fittings.
c. Bleed
the brakes per paragraph
7-72.
Revised:
10/3/80
LANDING
GEAR
AND BRAKE
SYSTEM
1L13
