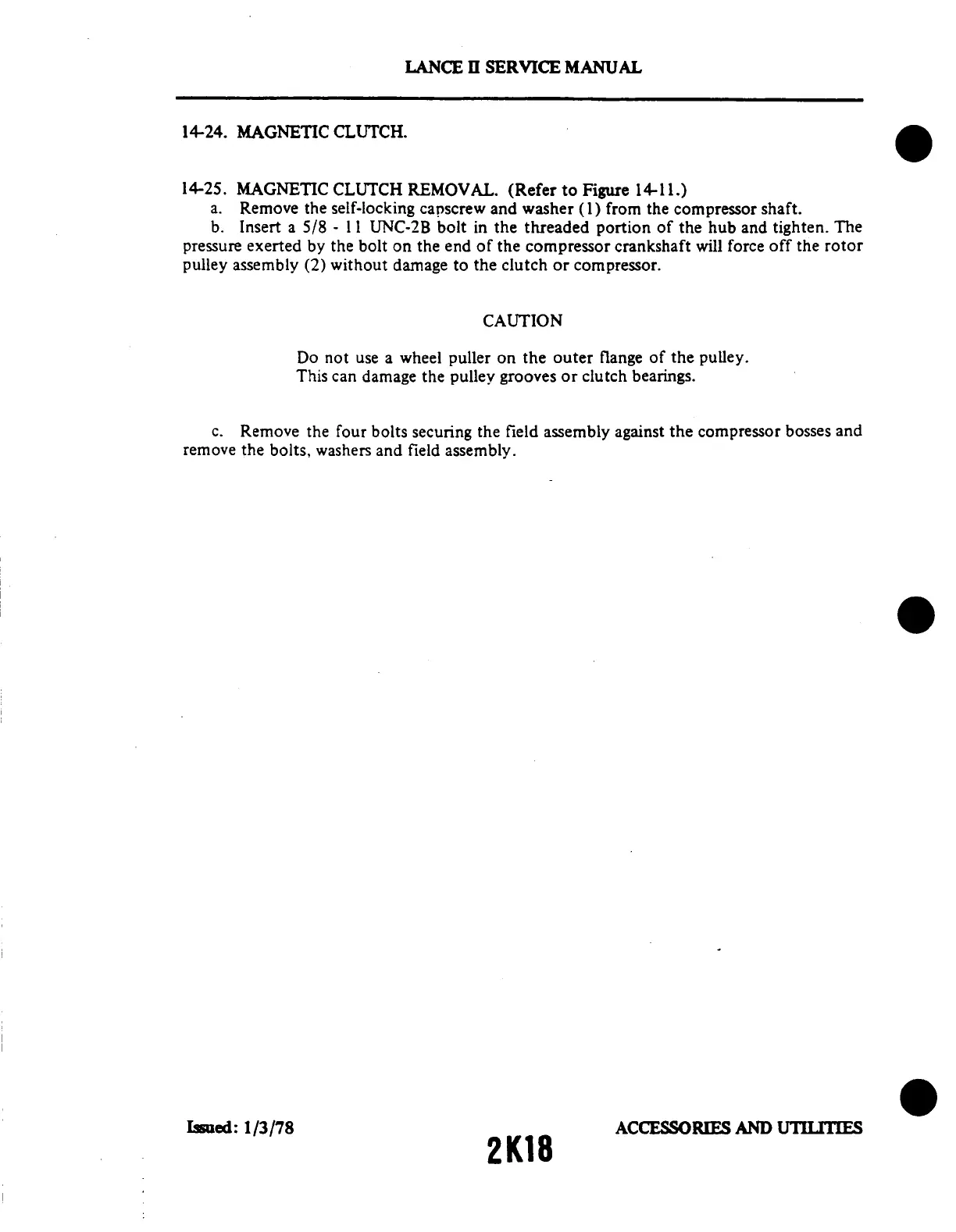

LANCE II SERVICE MANUAL
14-24. MAGNETIC CLUTCH.
14-25. MAGNETIC
CLUTCH REMOVAL. (Refer
to Figure 14-11.)
a. Remove the self-locking capscrew and washer (1) from the compressor shaft.
b. Insert a 5/8 - 11 UNC-2B bolt
in the threaded portion of the hub
and tighten. The
pressure exerted by the bolt on the end of the compressor crankshaft will force off the rotor
pulley assembly (2) without
damage to the clutch or
compressor.
CAUTION
Do not use a wheel puller on the outer flange of the pulley.
This can damage the pulley grooves or clutch bearings.
c. Remove the four bolts
securing the field assembly against the
compressor bosses and
remove the bolts, washers and field assembly.
Issued: 1/3/78
2K18
ACCESSORIES AND UTILITIES
