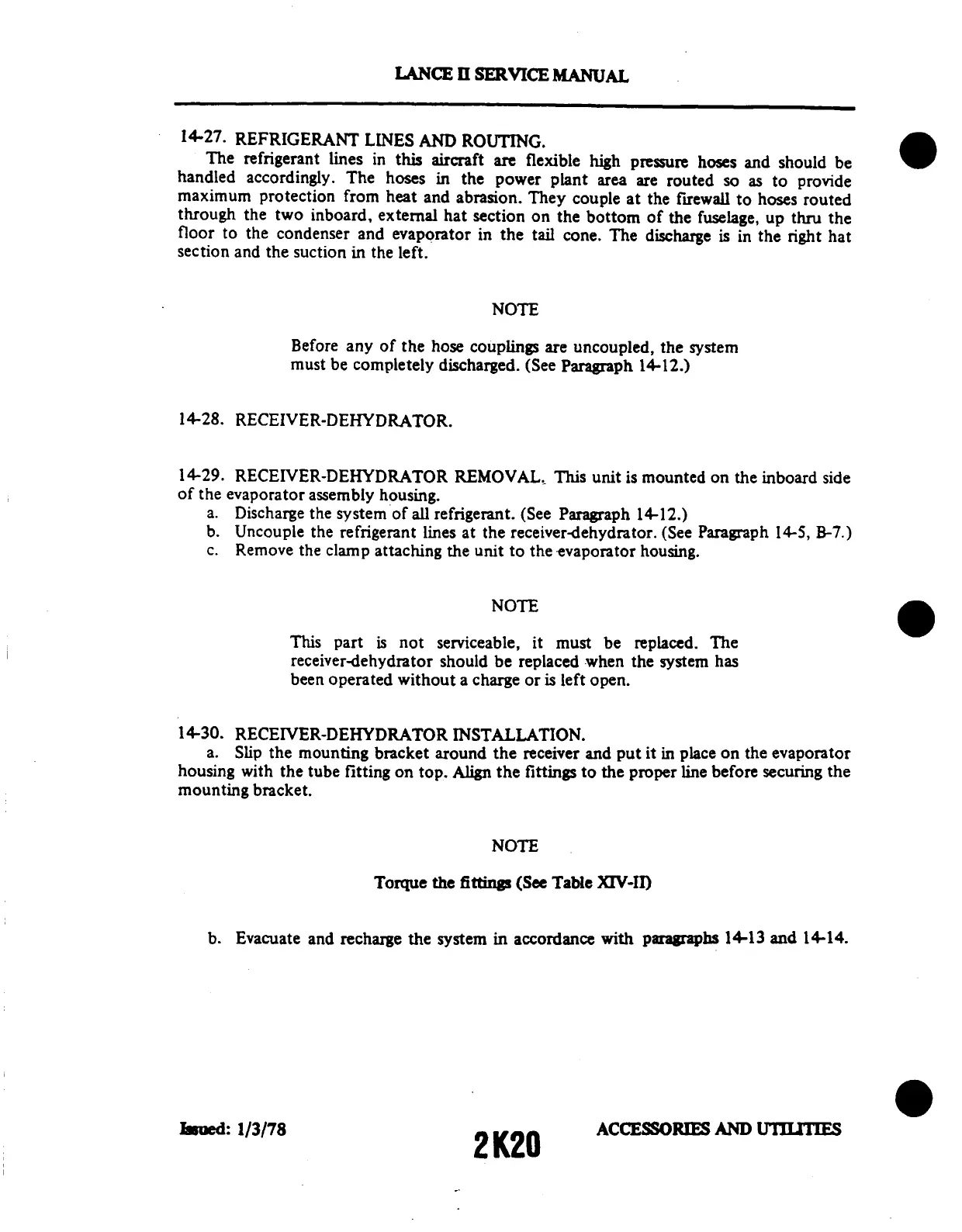

LANCE
II SERVICE
MANUAL
14-27.
REFRIGERANT
LINES
AND
ROUTING.
The refrigerant
lines in this aircraft
are flexible
high pressure hoses
and should be
handled
accordingly.
The hoses in the
power plant area
are routed so as
to provide
maximum protection
from heat
and abrasion. They
couple at the firewall
to hoses routed
through
the two inboard,
external hat
section on the bottom
of the fuselage,
up thru the
floor to the
condenser and evaporator
in the tail
cone. The discharge
is in the right hat
section
and the
suction in the
left.
NOTE
Before any
of the hose couplings
are uncoupled, the system
must be completely
discharged. (See Paragraph
14-12.)
14-28.
RECEIVER-DEHYDRATOR.
14-29. RECEIVER-DEHYDRATOR
REMOVAL. This unit is mounted
on the inboard side
of the evaporator
assembly
housing.
a. Discharge the system of all refrigerant. (See Paragraph 14-12.)
b. Uncouple the refrigerant
lines at the receiver-dehydrator. (See
Paragraph 14-5, B-7.)
c.
Remove the clamp attaching
the unit to the evaporator
housing.
NOTE
This part is not serviceable, it must be replaced. The
receiver-dehydrator should be replaced when the system has
been operated without a charge or is left open.
14-30.
RECEIVER-DEHYDRATOR
INSTALLATION.
a. Slip the mounting bracket around the receiver and put it in place on the evaporator
housing with the tube fitting on top. Align the fittings to the proper line before securing the
mounting bracket.
NOTE
Torque
the fittings
(See Table XIV-II)
b.
Evacuate and recharge the system in
accordance with paragraphs 14-13
and 14-14.
Issued: 1/3/78 2K20 ACCESSORIES AND UTILITIES
