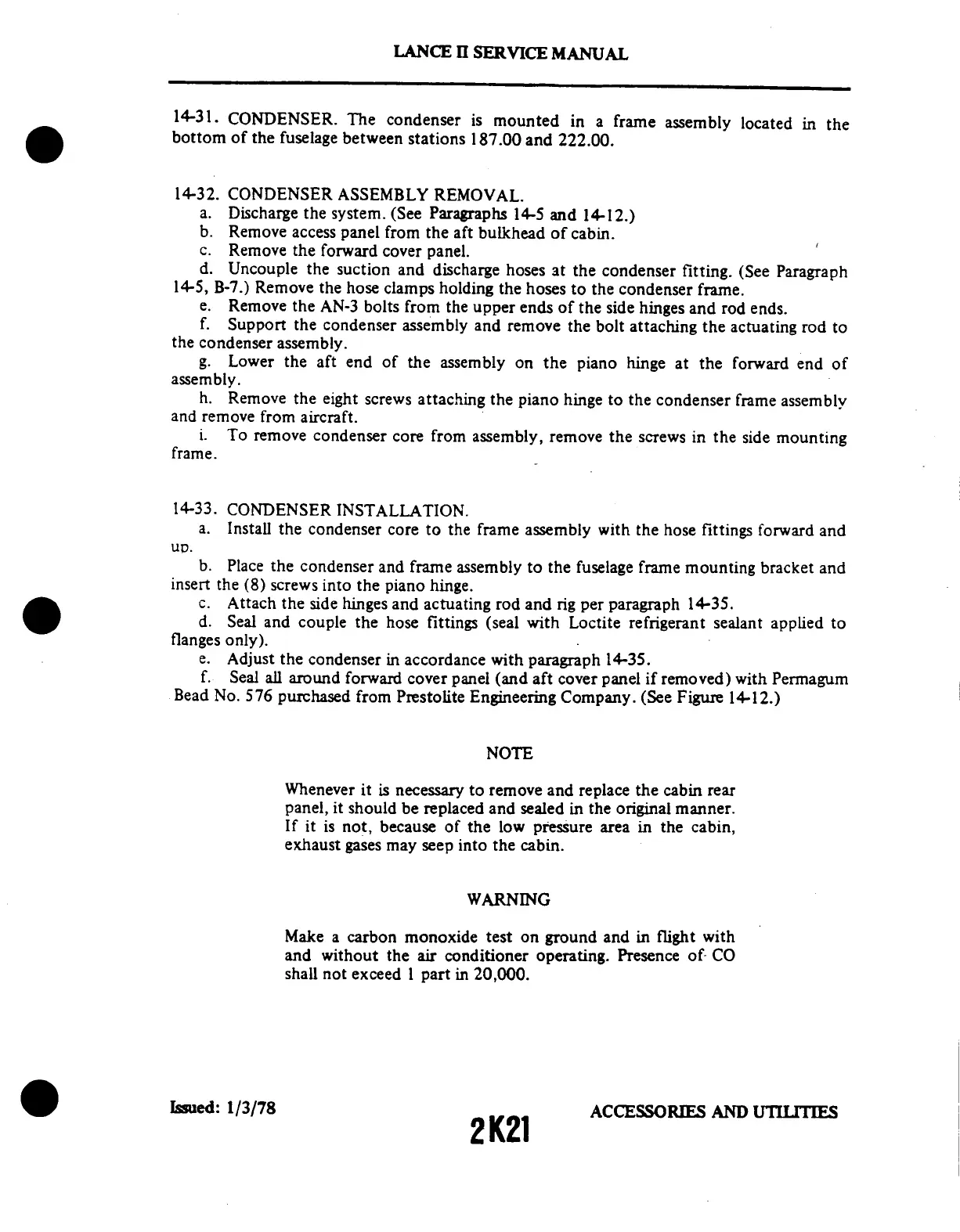

14-31.
CONDENSER.
The
condenser
is
mounted
in
a
frame
assembly
located
in
the
bottom
of
the
fuselage
between
stations
187.00
and
222.00.
14-32.
CONDENSER
ASSEMBLY
REMOVAL.
a.
Discharge
the
system.
(See
Paragraphs
14-5
and
14-12.)
b.
Remove
access
panel
from
the
aft bulkhead
of cabin.
c.
Remove
the
forward
cover
panel.
d. Uncouple
the
suction
and
discharge
hoses
at
the
condenser
fitting.
(See
Paragraph
14-5,
B-7.)
Remove
the
hose
clamps
holding
the
hoses
to
the condenser
frame.
e.
Remove
the
AN-3
bolts
from
the
upper
ends
of the
side
hinges
and
rod
ends.
f.
Support
the condenser
assembly
and
remove
the bolt
attaching
the
actuating
rod
to
the
condenser
assembly.
g.
Lower
the
aft
end of
the
assembly
on
the
piano
hinge
at
the forward
end of
assembly.
h.
Remove
the eight
screws
attaching
the piano
hinge
to the
condenser
frame
assembly
and
remove
from
aircraft.
i.
To remove
condenser
core
from
assembly,
remove
the
screws
in the
side
mounting
frame.
14-33.
CONDENSER
INSTALLATION.
a.
Install
the
condenser
core
to the
frame
assembly
with
the
hose
fittings
forward
and
up.
b. Place
the
condenser
and frame
assembly
to the
fuselage
frame
mounting
bracket
and
insert
the
(8) screws
into
the
piano
hinge.
c.
Attach
the side
hinges
and actuating
rod and
rig per
paragraph
14-35.
d.
Seal
and couple
the hose
fittings
(seal
with Loctite
refrigerant
sealant
applied
to
flanges
only).
e.
Adjust
the
condenser
in accordance
with
paragraph
14-35.
f.
Seal
all around
forward
cover
panel
(and
aft cover
panel
if removed)
with
Permagum
Bead
No.
576 purchased
from
Prestolite
Engineering
Company.
(See
Figure
14-12.)
NOTE
Whenever
it
is necessary
to
remove
and
replace
the cabin
rear
panel,
it should
be
replaced
and
sealed
in the
original
manner.
If
it is not,
because
of the
low pressure
area
in the
cabin,
exhaust
gases
may
seep into
the
cabin.
WARNING
Make
a carbon
monoxide
test
on ground
and
in flight
with
and
without
the
air conditioner
operating.
Presence
of- CO
shall
not
exceed
1
part
in 20,000.
Issued:
1/3/78
ACCESSORIES
AND
UTILITIES
2 K21
LANCE
II
SERVICE
MANUAL
