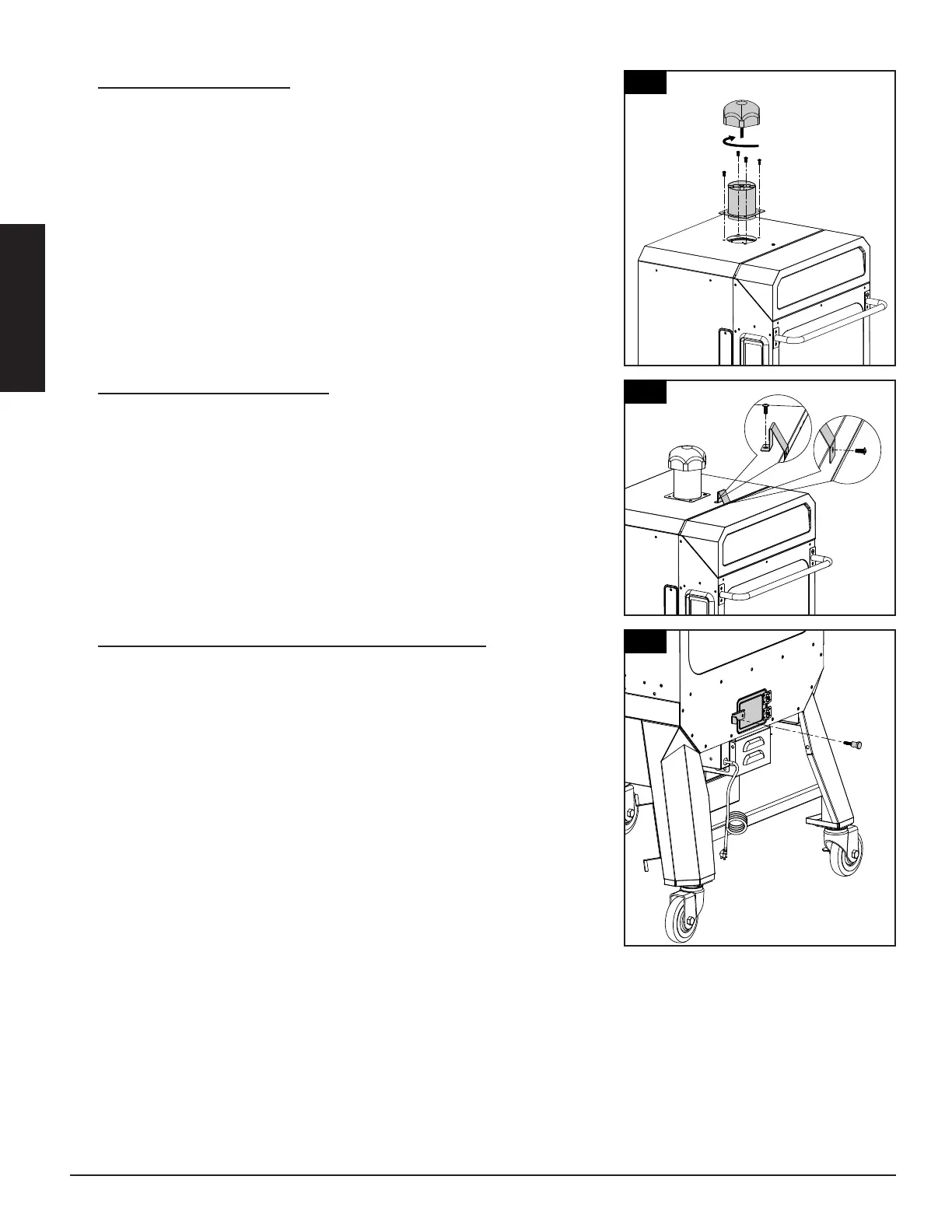

Parts Required:
1 x Chimney Cap (#3)
1 x Chimney Stack (#4)
4 x Screw (#C)
Installation:
• Locate the Chimney Opening on the top of the Main Cabinet. From the
outside, secure the Chimney Stack to the top panel using four screws.
The screw will fasten to the self-clinching nut on the inside of the
cabinet. Next, twist the Chimney Cap onto the top of the Chimney Stack.
NOTE: Adjust the Chimney Cap to affect the airflow inside the main
grill. If cooking at low temperature, keep the Chimney Cap more open.
8.
Parts Required:
1 x Lid Stopper (#2)
2 x Screw (#C)
Installation:
• Install the Lid Stopper onto the top of the Main Cabinet near the
hopper lid, using one screw on the top side and one screw on the
inside edge between the hopper lid hinges.
9.
Parts Required:
1 x Door Knob (#A)
Installation:
• Attach the Door Knob to the hopper clean-out door by rotating the
part into the hole on the door. Rotate until completely fastened and
clean-out door latch is secured.
NOTE: To use the hopper clean-out feature, simply loosen the Door
Knob, raise the clean-out door latch and open the door.
7
8
9
3
4
2
