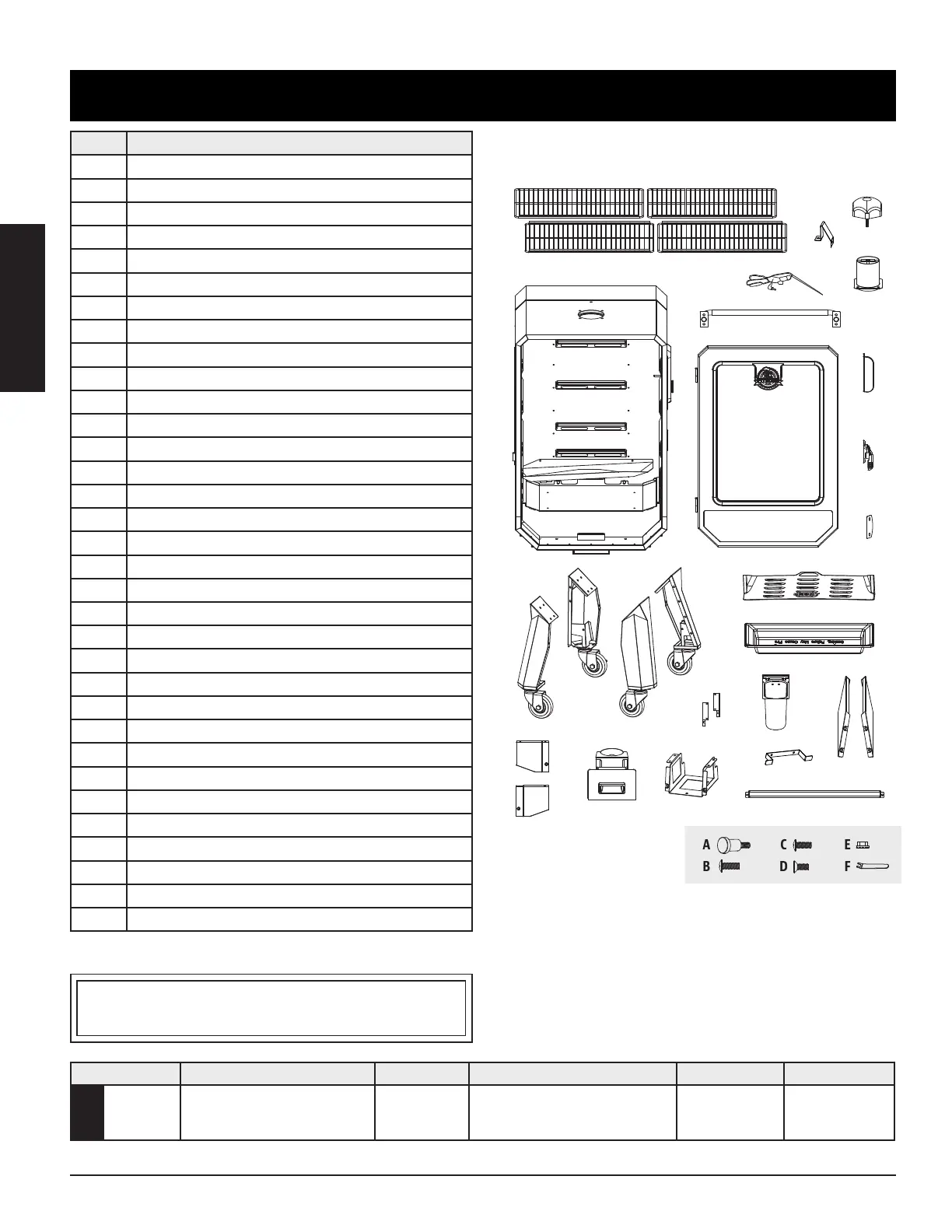

Pit Boss PBV4PS2 - Parts & Specs

ENGLISH
6
MODEL ASSEMBLED (WxDxH) WEIGHT COOKING AREA HOPPER SIZE TEMPERATURE

42
679   682   1,394 
/ 26.7 .  26.8 .  54.9 .
70 
/ 154.32 
  0.09 
3
/ 3.5 
3
  6,948  / 1,077.08 
29.4 
/ 65 
54215°
/ 130420°
  
1
2
4
3
10
11
12
15
14
17
18
20
21
22
23
24
25
26
  
  
19
16
8
6
7
9
5
Part# Description
1 Cooking Grids (x4)
2 Lid Stopper (x1)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Meat Probe (x1)
6 Hopper Handle (x1)
7 Main Cabinet (x1)
8 Cabinet Door (x1)
9 Cabinet Door Handle (x1)
10 Cabinet Door Latch (x1)
11 Cabinet Door Heat Filter (x1)
12 Left Support Leg - Front (x1)
13 Left Support Leg - Back (x1)
14 Right Support Leg - Front (x1)
15 Right Support Leg - Back (x1)
16 Heat Deflector Plate (x1)
17 Water Pan (x1)
18 Support Panel (x2)
19 Grease Tray (x1)
20 Grease Tray Bracket (x2)
21 Ash Clean-out Housing (x1)
22 Ash Clean-out Tray (x1)
23 Left Front Panel (x1)
24 Right Front Panel (x1)
25 Power Cord Bracket (x1)
26 Support Bar (x1)
A Door Knob (x1)
B Screw (x4)
C Screw (x34)
D Screw (x4)
E Nut (x16)
F Wrench (x1)
- Spare Parts (Cx2)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
   
110120, 60z, 250, 3  
