Pit Boss PBV4PS2 - Replacement Parts

ENGLISH
28
  
1
2
4
3
10
11
12
15
14
17
18
20
21
22
23
24
25
26
27
28
29
30
  
  
19
16
8
6
7
9
5

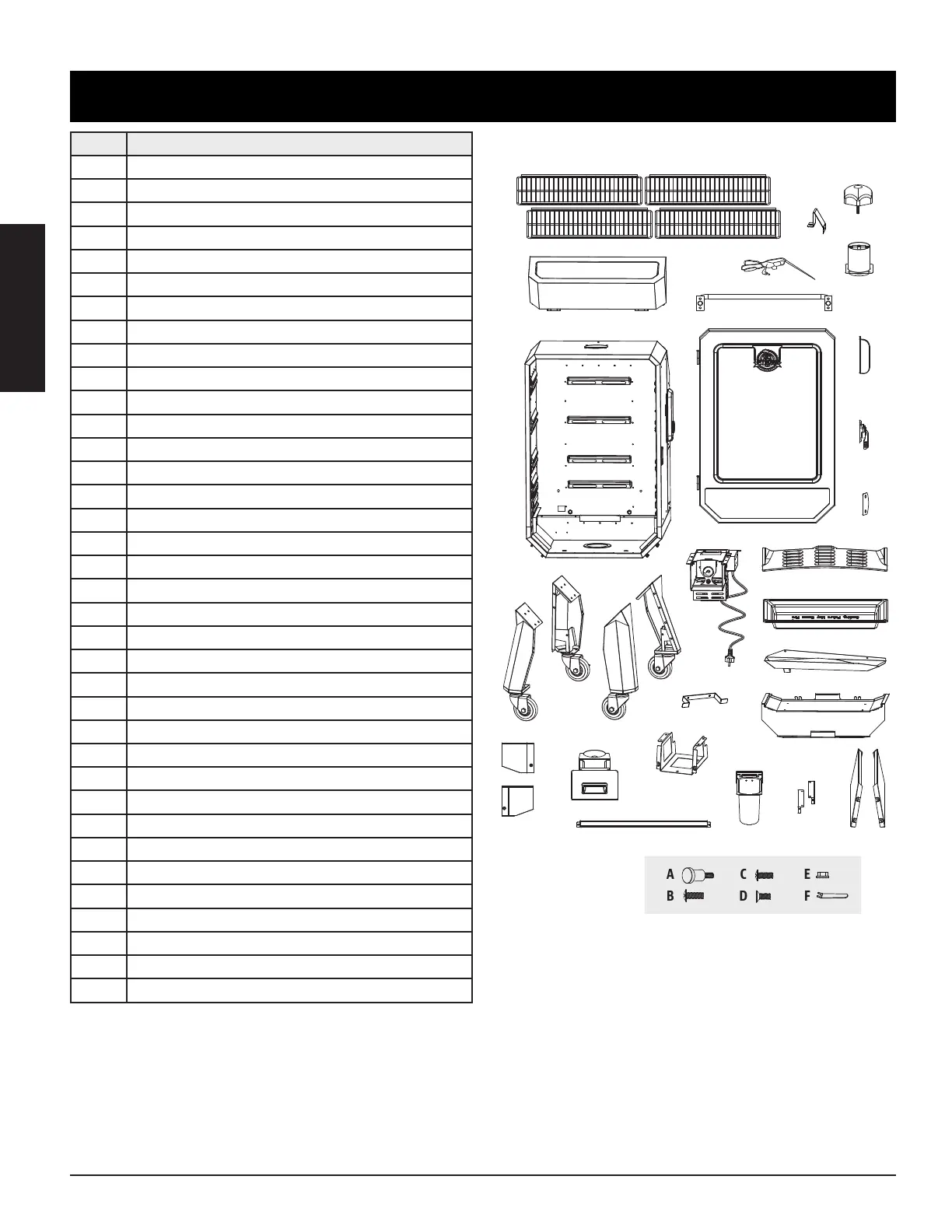

Part# Description
1 Cooking Grids (x4)
2 Lid Stopper (x1)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Meat Probe (x1)
6 Hopper Handle (x1)
7 Hopper Lid (x1)
8 Main Cabinet (x1)
9 Cabinet Door (x1)
10 Cabinet Door Handle (x1)
11 Cabinet Door Latch (x1)
12 Cabinet Door Heat Filter (x1)
13 Left Support Leg - Front (x1)
14 Left Support Leg - Back (x1)
15 Right Support Leg - Front (x1)
16 Right Support Leg - Back (x1)
17 Feed System (x1)
18 Heat Deflector Plate (x1)
19 Water Pan (x1)
20 Grease Plate (x1)
21 Flame Tamer (x1)
22 Power Cord Bracket (x1)
23 Ash Clean-out Housing (x1)
24 Ash Clean-out Tray (x1)
25 Left Front Panel (x1)
26 Right Front Panel (x1)
27 Grease Tray (x1)
28 Grease Tray Bracket (x2)
29 Support Panel (x2)
30 Support Bar (x1)
A Door Knob (x1)
B Screw (x4)
C Screw (x34)
D Screw (x4)
E Nut (x16)
F Wrench (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice.
