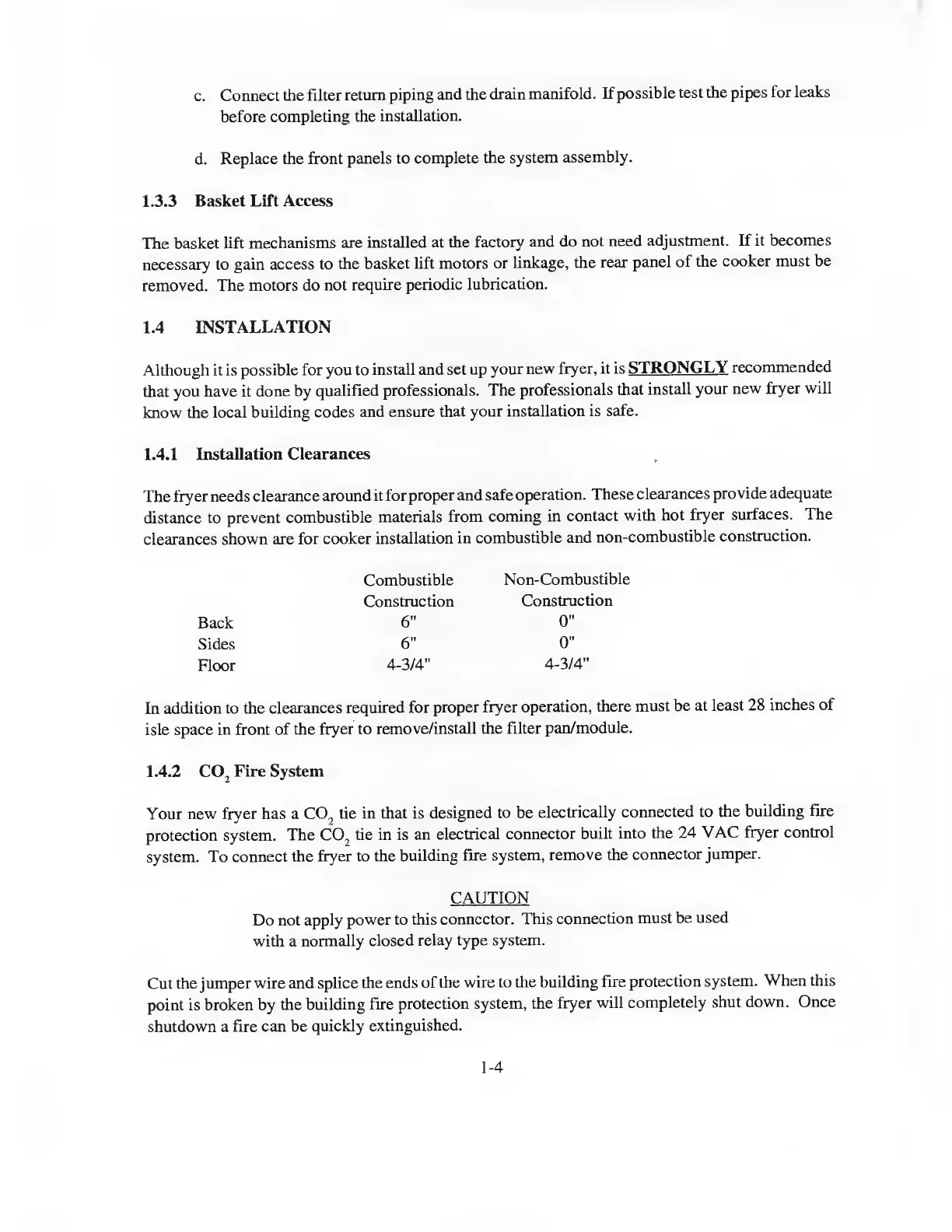

c. Connect the filter return piping and the drain manifold. If possible test the pipes for leaks
before completing the installation.
d. Replace the front panels to complete the system assembly.
1.3.3 Basket Lift Access
The basket lift mechanisms are installed at the factory and do not need adjustment. If it becomes
necessary to gain access to the basket lift motors or linkage, the rear panel of the cooker must be
removed. The motors do not require periodic lubrication.
1.4 INSTALLATION
Although it is possible for you to install and set up your new fryer, it is STRONGLY recommended
that you have it done by qualified professionals. The professionals that install your new fryer will
know the local building codes and ensure that your installation is safe.
1.4.1 Installation Clearances
The fryer needs clearance around it for proper and safe operation. These clearances provide adequate
distance to prevent combustible materials from coming in contact with hot fryer surfaces. The
clearances shown are for cooker installation in combustible and non-combustible construction.
Combustible Non-Combustible
Construction Construction
Back 6" 0"
Sides 6" 0"
Floor 4-3/4" 4-3/4"
In addition to the clearances required for proper fryer operation, there must be at least 28 inches of
isle space in front of the fryer to remove/install the filter pan/module.
1.4.2 C0 2 Fire System
Your new fryer has a C0 2 tie in that is designed to be electrically connected to the building fire
protection system. The C0 2 tie in is an electrical connector built into the 24 VAC fryer control
system. To connect the fryer to the building fire system, remove the connector jumper.
CAUTION
Do not apply power to this connector. This connection must be used
with a normally closed relay type system.
Cut the jumper wire and splice the ends of the wire to the building fire protection system. When this
point is broken by the building fire protection system, the fryer will completely shut down. Once
shutdown a fire can be quickly extinguished.
1-4
