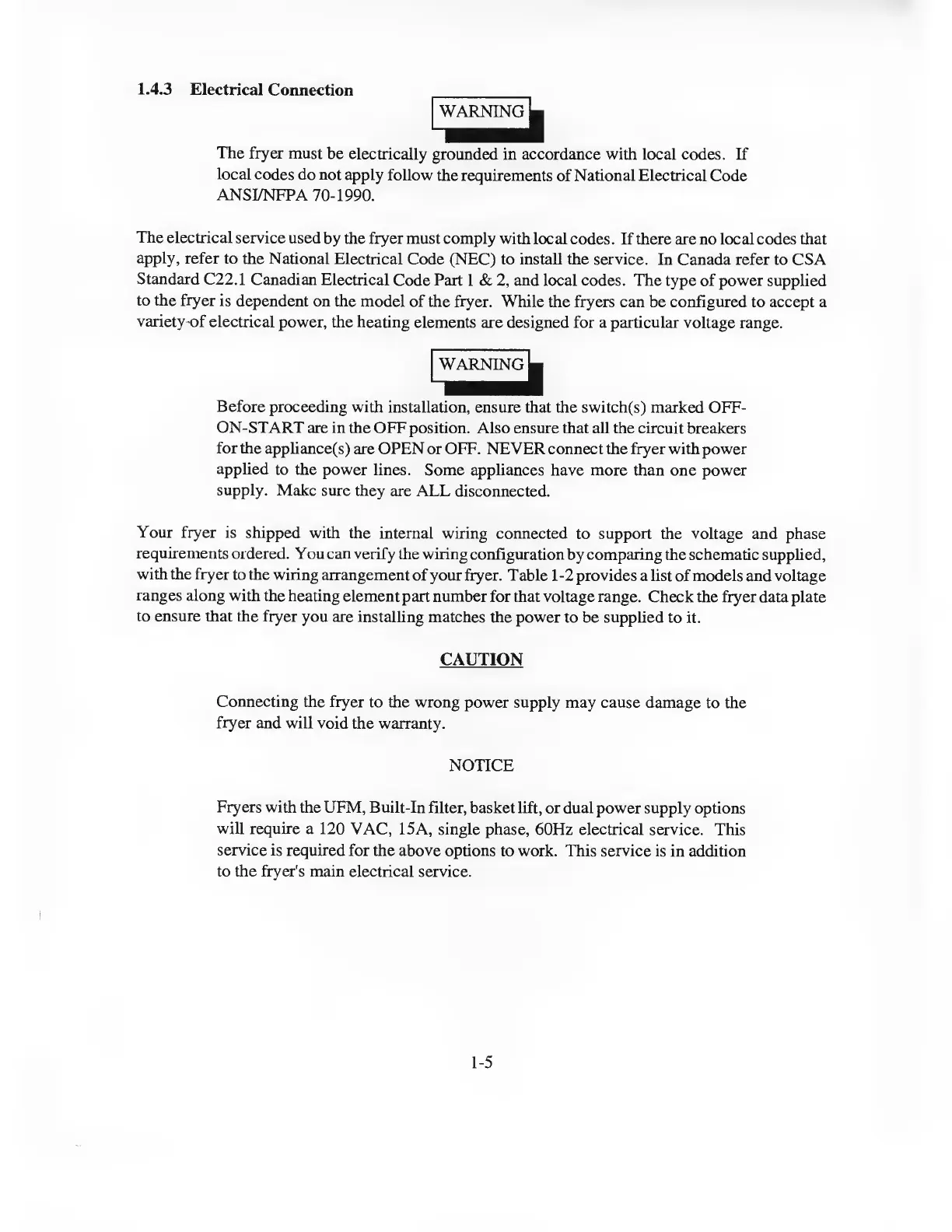

1.4.3 Electrical Connection
The fryer must be electrically grounded in accordance with local codes. If
local codes do not apply follow the requirements of National Electrical Code
ANSI/NFPA 70-1990.
The electrical service used by the fryer must comply with local codes. If there are no local codes that
apply, refer to the National Electrical Code (NEC) to install the service. In Canada refer to CSA
Standard C22.1 Canadian Electrical Code Part 1 & 2, and local codes. The type of power supplied
to the fryer is dependent on the model of the fryer. While the fryers can be configured to accept a
variety-of electrical power, the heating elements are designed for a particular voltage range.
Before proceeding with installation, ensure that the switch(s) marked OFF-
ON-START are in the OFF position. Also ensure that all the circuit breakers
for the appliance(s) are OPEN or OFF. NEVER connect the fryer with power
applied to the power lines. Some appliances have more than one power
supply. Make sure they are ALL disconnected.
Your fryer is shipped with the internal wiring connected to support the voltage and phase
requirements ordered. You can verify the wiring configuration by comparing the schematic supplied,
with the fryer to the wiring arrangement of your fryer. Table 1 -2 provides a list of models and voltage
ranges along with the heating element part number for that voltage range. Check the fryer data plate
to ensure that the fryer you are installing matches the power to be supplied to it.
CAUTION
Connecting the fryer to the wrong power supply may cause damage to the
fryer and will void the warranty.
NOTICE
Fryers with the UFM, Built-In filter, basket lift, or dual power supply options
will require a 120 VAC, 15A, single phase, 60Hz electrical service. This
service is required for the above options to work. This service is in addition
to the fryer's main electrical service.
