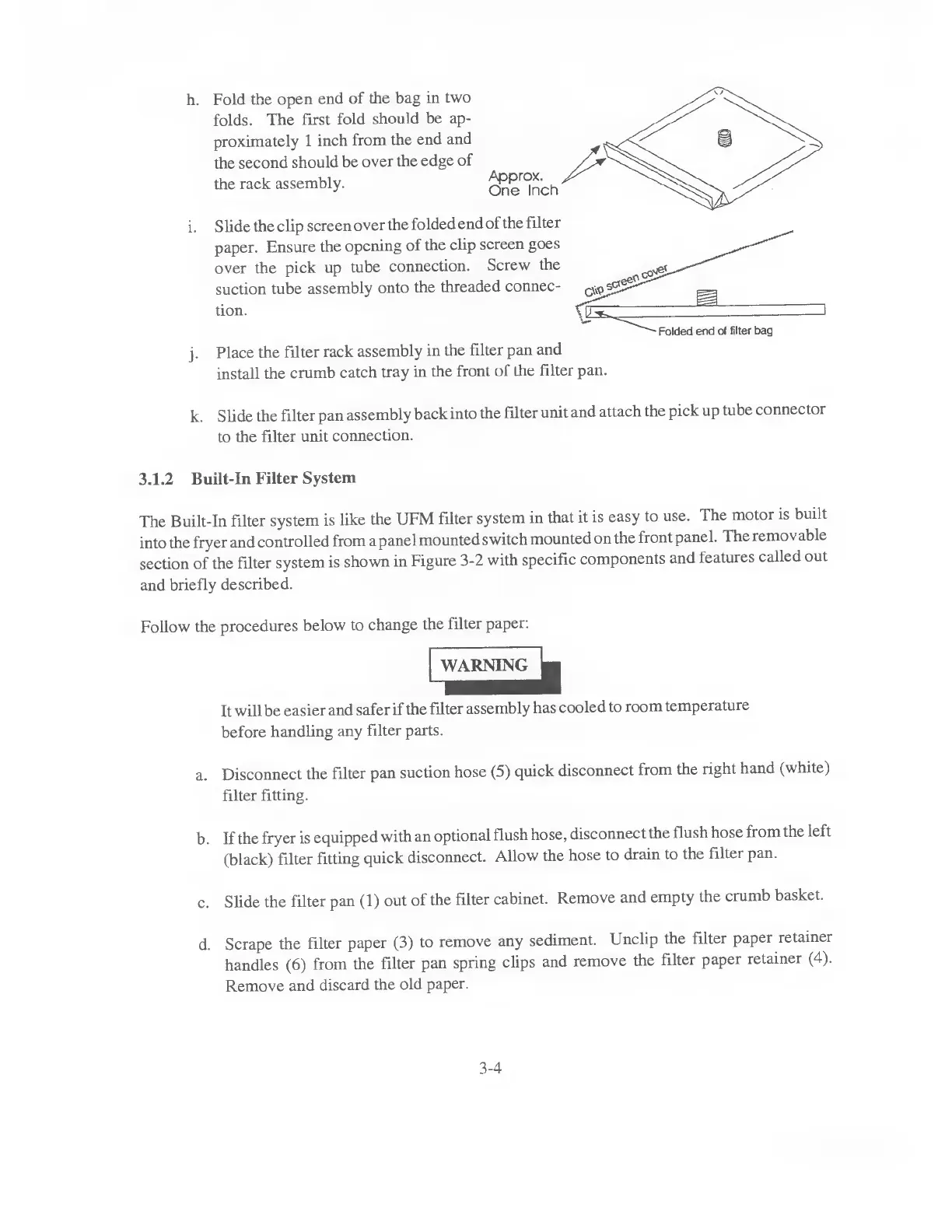

h. Fold the open end of the bag in two
folds. The first fold should be ap¬
proximately 1 inch from the end and
the second should be over the edge of
the rack assembly.
i. Slide the clip screen over the folded end of the filter
paper. Ensure the opening of the clip screen goes
over the pick up tube connection. Screw the
suction tube assembly onto the threaded connec¬
tion.
j. Place the filter rack assembly in the filter pan and
install the crumb catch tray in the front of the filter pan.
k. Slide the filter pan assembly back into the filter unit and attach the pick up tube connector
to the filter unit connection.
3.1.2 Built-In Filter System
The Built-In filter system is like the UFM filter system in that it is easy to use. The motor is built
into the fryer and controlled from a panel mounted switch mounted on the front panel. The removable
section of the filter system is shown in Figure 3-2 with specific components and features called out
and briefly described.
Follow the procedures below to change the filter paper:
It will be easier and safer if the filter assembly has cooled to room temperature
before handling any filter parts.
a. Disconnect the filter pan suction hose (5) quick disconnect from the right hand (white)
filter fitting.
b. If the fryer is equipped with an optional flush hose, disconnect the flush hose from the left
(black) filter fitting quick disconnect. Allow the hose to drain to the filter pan.
c. Slide the filter pan (1) out of the filter cabinet. Remove and empty the crumb basket.
d. Scrape the filter paper (3) to remove any sediment. Unclip the filter paper retainer
handles (6) from the filter pan spring clips and remove the filter paper retainer (4).
Remove and discard the old paper.
3-4
