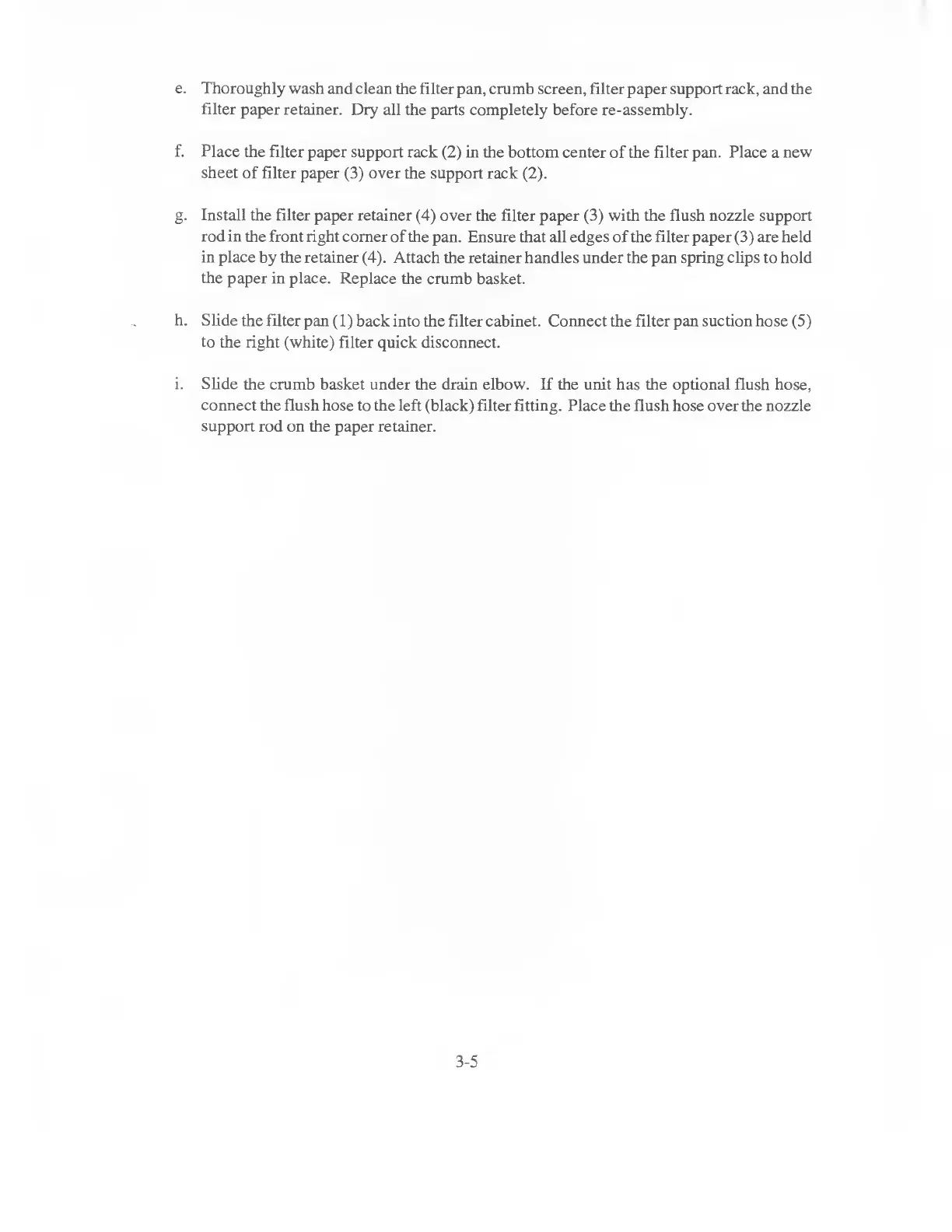

e. Thoroughly wash and clean the filter pan, crumb screen, filter paper support rack, and the
filter paper retainer. Dry all the parts completely before re-assembly.
f. Place the filter paper support rack (2) in the bottom center of the filter pan. Place a new
sheet of filter paper (3) over the support rack (2).
g. Install the filter paper retainer (4) over the filter paper (3) with the flush nozzle support
rod in the front right comer of the pan. Ensure that all edges of the filter paper (3) are held
in place by the retainer (4). Attach the retainer handles under the pan spring clips to hold
the paper in place. Replace the crumb basket.
h. Slide the filter pan (1) back into the filter cabinet. Connect the filter pan suction hose (5)
to the right (white) filter quick disconnect.
i. Slide the crumb basket under the drain elbow. If the unit has the optional flush hose,
connect the flush hose to the left (black) filter fitting. Place the flush hose over the nozzle
support rod on the paper retainer.
3-5
