Pitco E7 User Manual

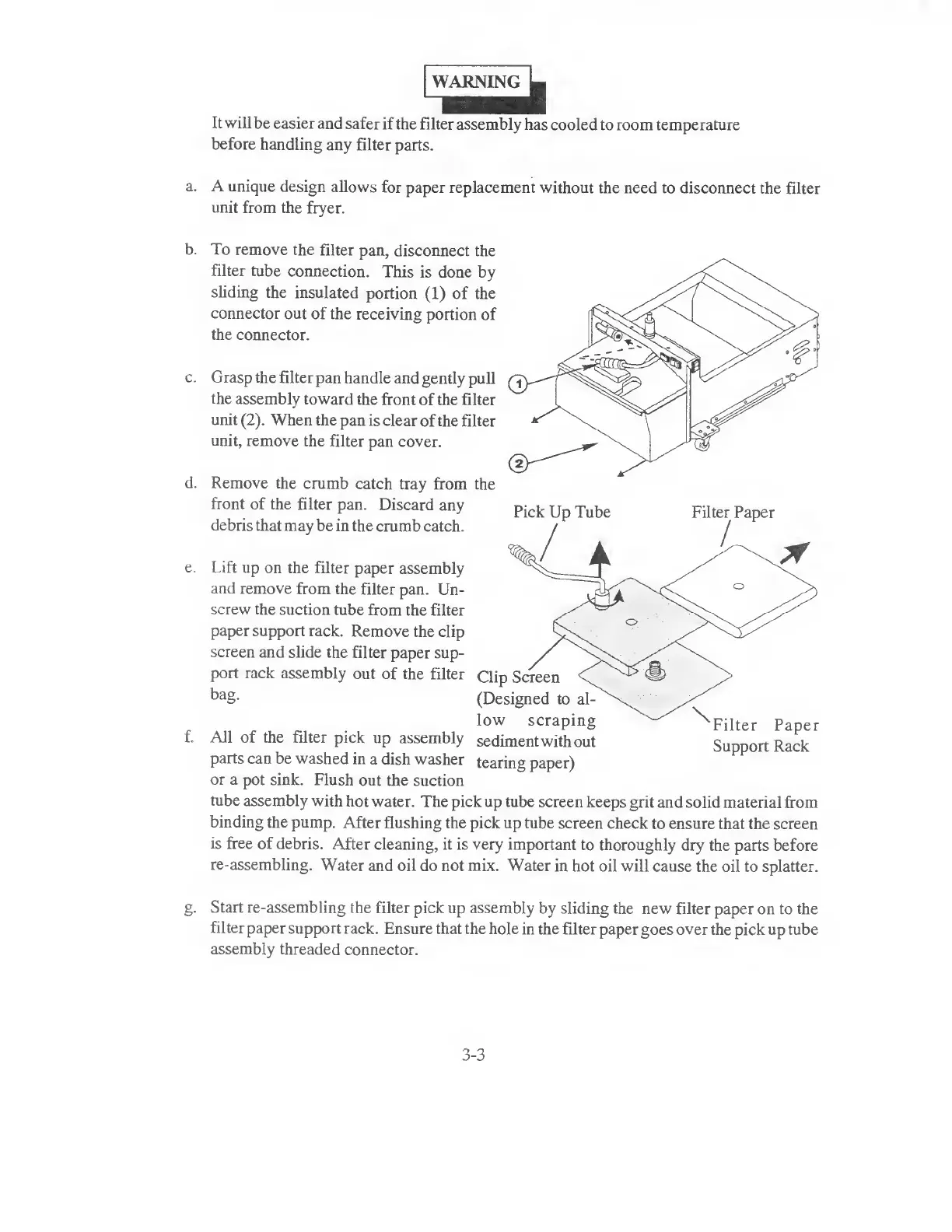

It will be easier and safer if the filter assembly has cooled to room temperature
before handling any filter parts.
a. A unique design allows for paper replacement without the need to disconnect the filter
unit from the fryer.
b.
c.
d.
e.
f.
To remove the filter pan, disconnect the
filter tube connection. This is done by
sliding the insulated portion (1) of the
connector out of the receiving portion of
the connector.
Grasp the filter pan handle and gently pull
the assembly toward the front of the filter
unit (2). When the pan is clear of the filter
unit, remove the filter pan cover.
Remove the crumb catch tray from the
front of the filter pan. Discard any
debris that may be in the crumb catch.
Lift up on the filter paper assembly
and remove from the filter pan. Un¬
screw the suction tube from the filter
paper support rack. Remove the clip
screen and slide the filter paper sup¬
port rack assembly out of the filter
bag.
Filter Paper
L
Clip Screen
(Designed to al¬
low scraping
sediment with out
tearing paper)
Filter Paper
Support Rack
All of the filter pick up assembly
parts can be washed in a dish washer
or a pot sink. Flush out the suction
tube assembly with hot water. The pick up tube screen keeps grit and solid material from
binding the pump. After flushing the pick up tube screen check to ensure that the screen
is free of debris. After cleaning, it is very important to thoroughly dry the parts before
re-assembling. Water and oil do not mix. Water in hot oil will cause the oil to splatter.
g. Start re-assembling the filter pick up assembly by sliding the new filter paper on to the
filter paper support rack. Ensure that the hole in the filter paper goes over the pick up tube
assembly threaded connector.
3-3
