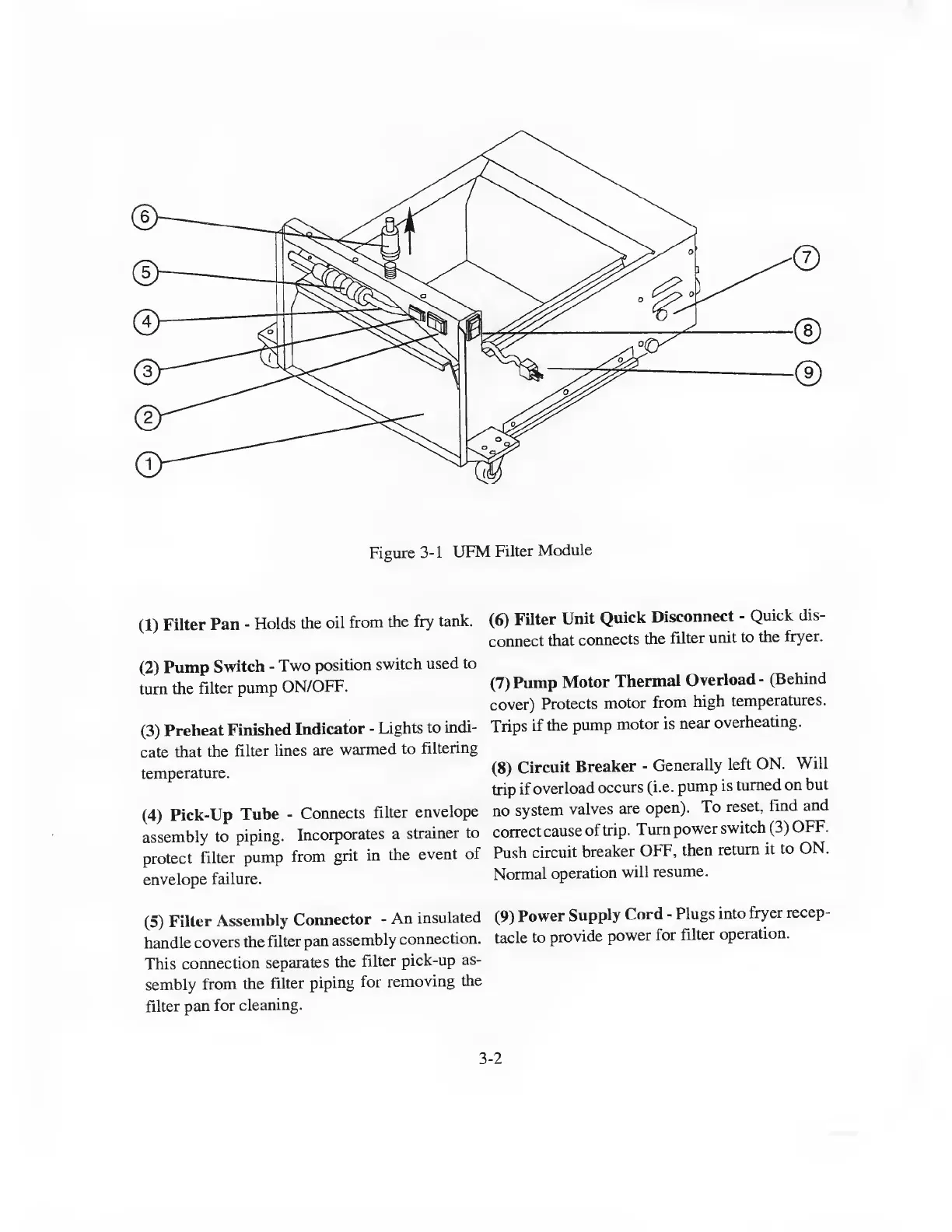

Figure 3-1 UFM Filter Module
(1) Filter Pan - Holds the oil from the fry tank.
(2) Pump Switch - Two position switch used to
turn the filter pump ON/OFF.
(3) Preheat Finished Indicator - Lights to indi¬
cate that the filter lines are warmed to filtering
temperature.
(4) Pick-Up Tube - Connects filter envelope
assembly to piping. Incorporates a strainer to
protect filter pump from grit in the event of
envelope failure.
(6) Filter Unit Quick Disconnect - Quick dis¬
connect that connects the filter unit to the fryer.
(7) Pump Motor Thermal Overload - (Behind
cover) Protects motor from high temperatures.
Trips if the pump motor is near overheating.
(8) Circuit Breaker - Generally left ON. Will
trip if overload occurs (i.e. pump is turned on but
no system valves are open). To reset, find and
correct cause of trip. Turn power switch (3) OFF.
Push circuit breaker OFF, then return it to ON.
Normal operation will resume.
(5) Filter Assembly Connector - An insulated (9) Power Supply Cord - Plugs into fryer recep-
handle covers the filter pan assembly connection, tacle to provide power for filter operation.
This connection separates the filter pick-up as¬
sembly from the filter piping for removing the
filter pan for cleaning.
