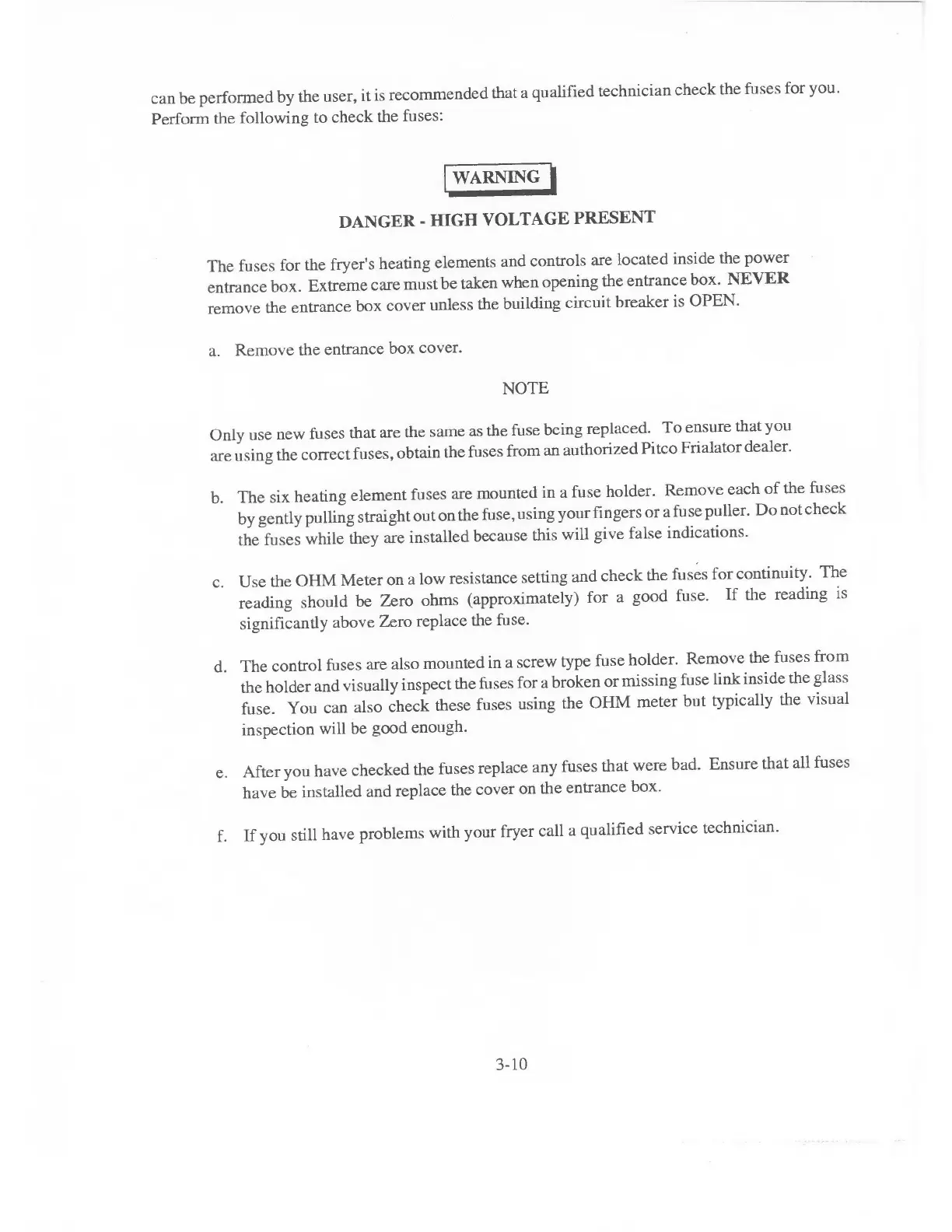

can be performed by the user, it is recommended that a qualified technician check the fuses for you.
Perform the following to check the fuses:
WARNING |
DANGER - HIGH VOLTAGE PRESENT
The fuses for the fryer's heating elements and controls are located inside the power
entrance box. Extreme care must be taken when opening the entrance box. NEVER
remove the entrance box cover unless the building circuit breaker is OPEN.
a. R emove the entrance box cover.
NOTE
Only use new fuses that are the same as the fuse being replaced. To ensure that you
are using the correct fuses, obtain the fuses from an authorized Pitco Fnalator dealer.
b. The six heating element fuses are mounted in a fuse holder. Remove each of the fuses
by gently pulling straight out on the fuse, using your fingers or a fuse puller. Do not check
the fuses while they are installed because this will give false indications.
c. Use the OHM Meter on a low resistance setting and check the fuses for continuity. The
reading should be Zero ohms (approximately) for a good fuse. If the reading is
significantly above Zero replace the fuse.
d. The control fuses are also mounted in a screw type fuse holder. Remove the fuses from
the holder and visually inspect the fuses for a broken or missing fuse link inside the glass
fuse. You can also check these fuses using the OHM meter but typically the visual
inspection will be good enough.
e. After you have checked the fuses replace any fuses that were bad. Ensure that all fuses
have be installed and replace the cover on the entrance box.
f. If you still have problems with your fryer call a qualified service technician.
3-10
