Pitney Bowes DA50S - Usb;Ethernet Input Board

5-4 SV61831 Rev. A DA50S/DA55S/DA70S/DA75S AddressRight™ Printers Service Manual
5 • Removal & Replacement
DA50S/DA55S (WS51/WS56) Parts Removal
1. Remove operator side cover (see section 5.2).
2. Remove P3, P4, P5 from USB/Ethernet board.
3. Remove two phillips screws fastening board to chassis.
5.5 USB/
Ethernet Input
Board

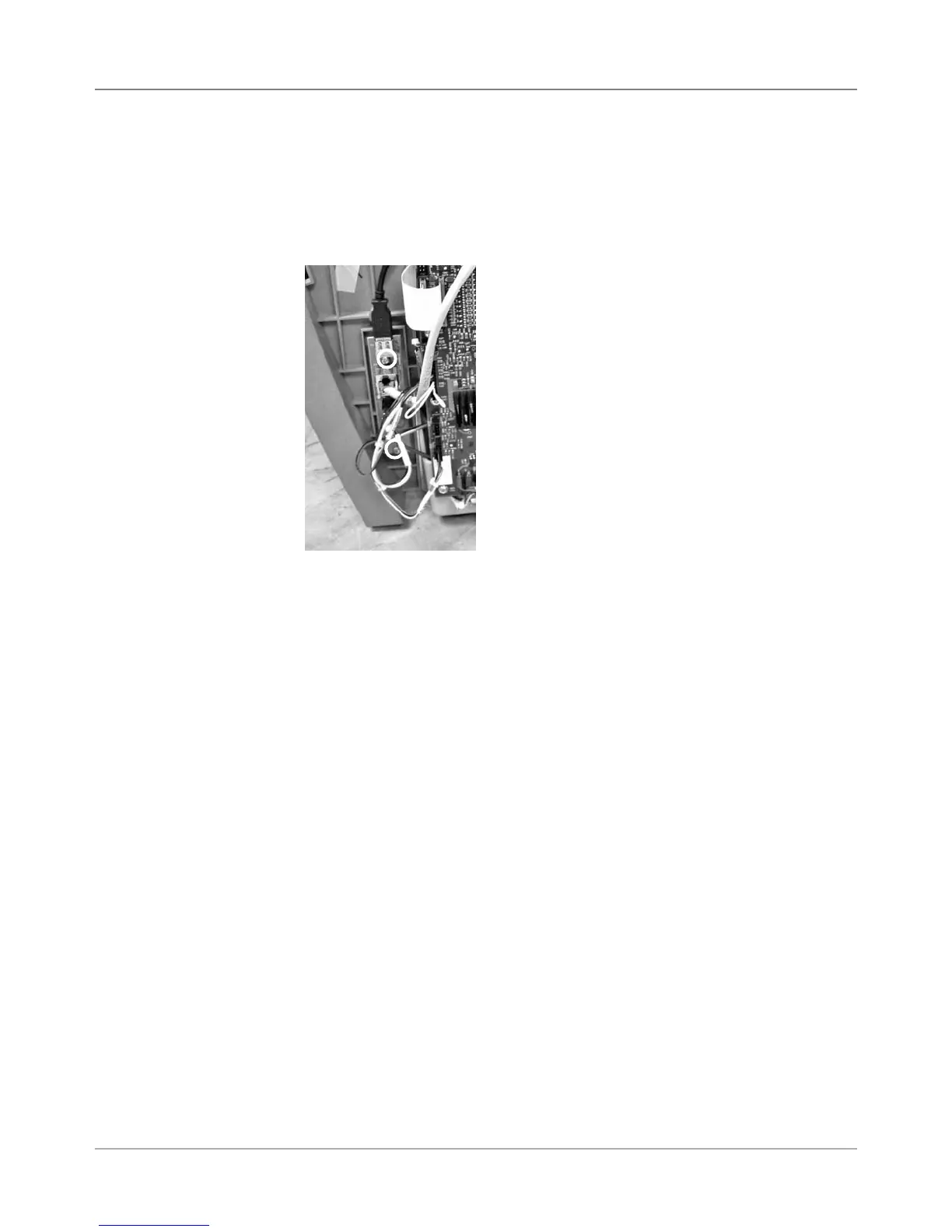

USB/Ethernet Board
(screw locations in circles)
