DA50S/DA55S (WS51/WS56) Adjustments
Use a Phillips screwdriver and a feeler gauge to adjust the brake gap to
0.100” ± 0.020” (about 3/32”) between the two legs as shown below.
If stream feeding occurs after you set the proper gap, replace the brake as-
sembly (see Chapter 5 for instructions).
6.4 Main Brake

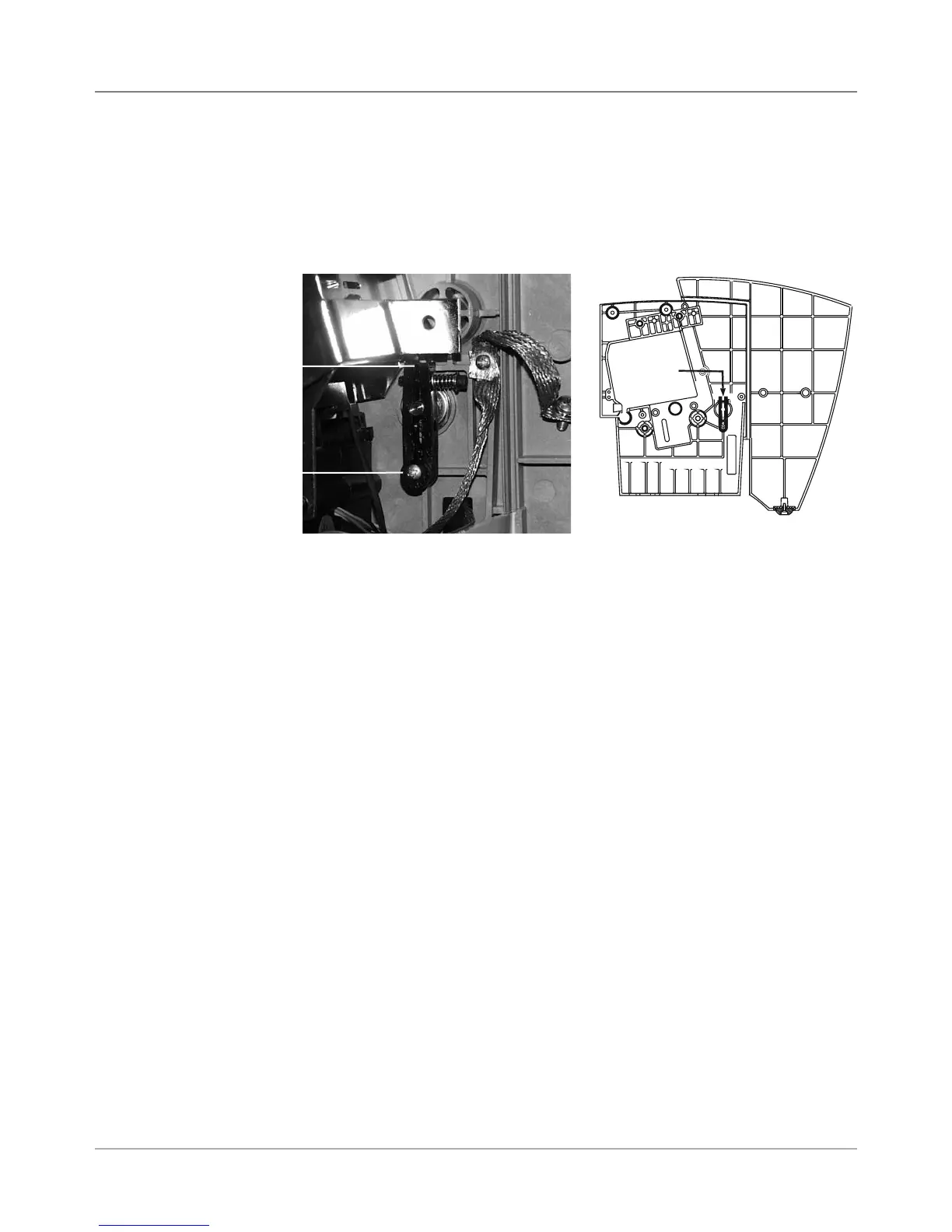

Figure 6-2 Brake Assembly
Measure
here
HERE
-EASURE
2EAR3UPPORT0LATE!SSEMBLY
Adjustment
Screw
