5-8 SV61831 Rev. A DA50S/DA55S/DA70S/DA75S AddressRight™ Printers Service Manual
5 • Removal & Replacement
DA50S/DA55S (WS51/WS56) Parts Removal
8. Loosen main drive belt by idler pulley screw (circled).

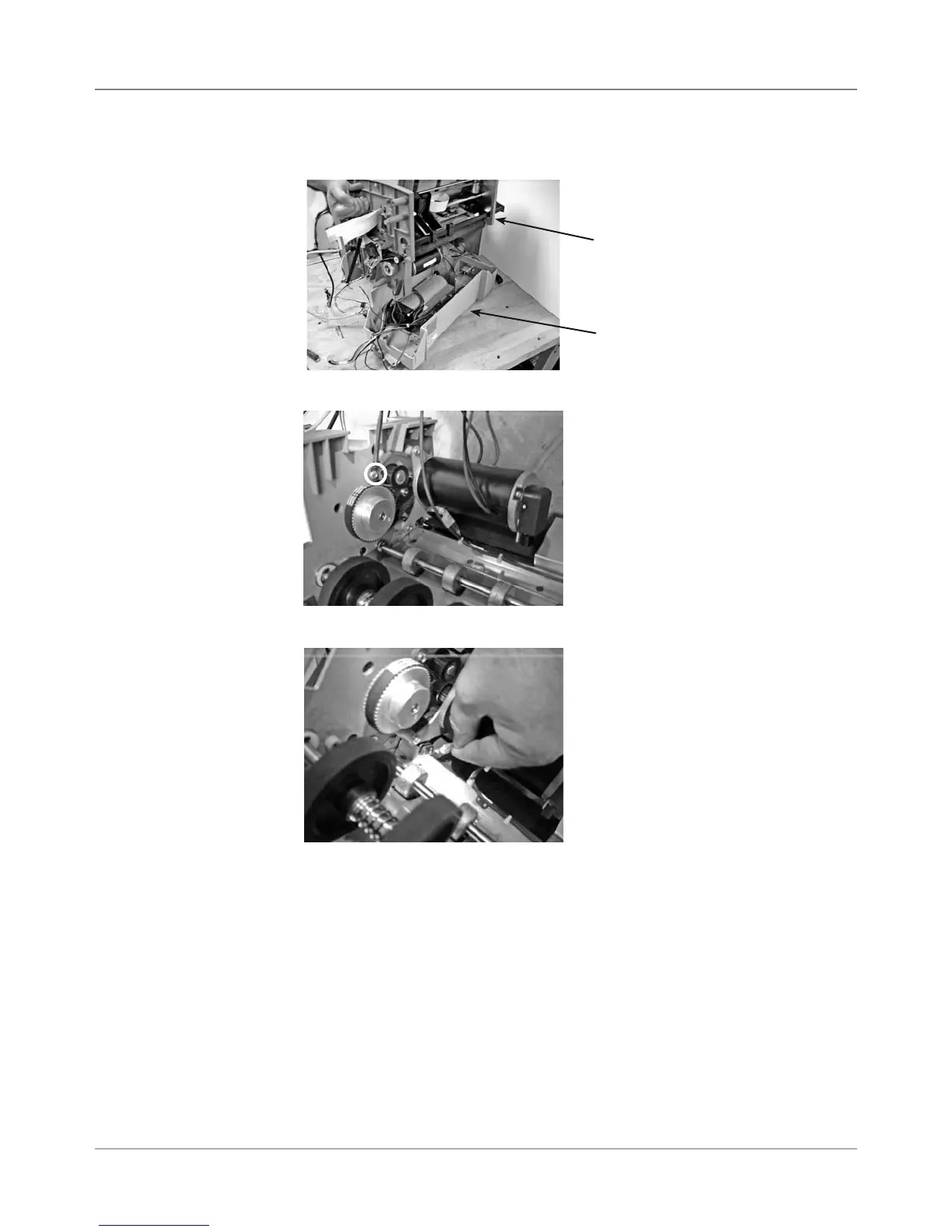

7. Lift and remove top chassis assembly from bottom gray tray.
9. Remove ground strap from motor (force fit).
10. Remove three screws that hold motor to side frame and remove motor.
11. Remove belt.
5.7 Paper
Transport
Motor/Belt
(continued)
Top Chassis
Bottom Tray
To Next Page
