5-12 SV61831 Rev. A DA50S/DA55S/DA70S/DA75S AddressRight™ Printers Service Manual
5 • Removal & Replacement
DA50S/DA55S (WS51/WS56) Parts Removal

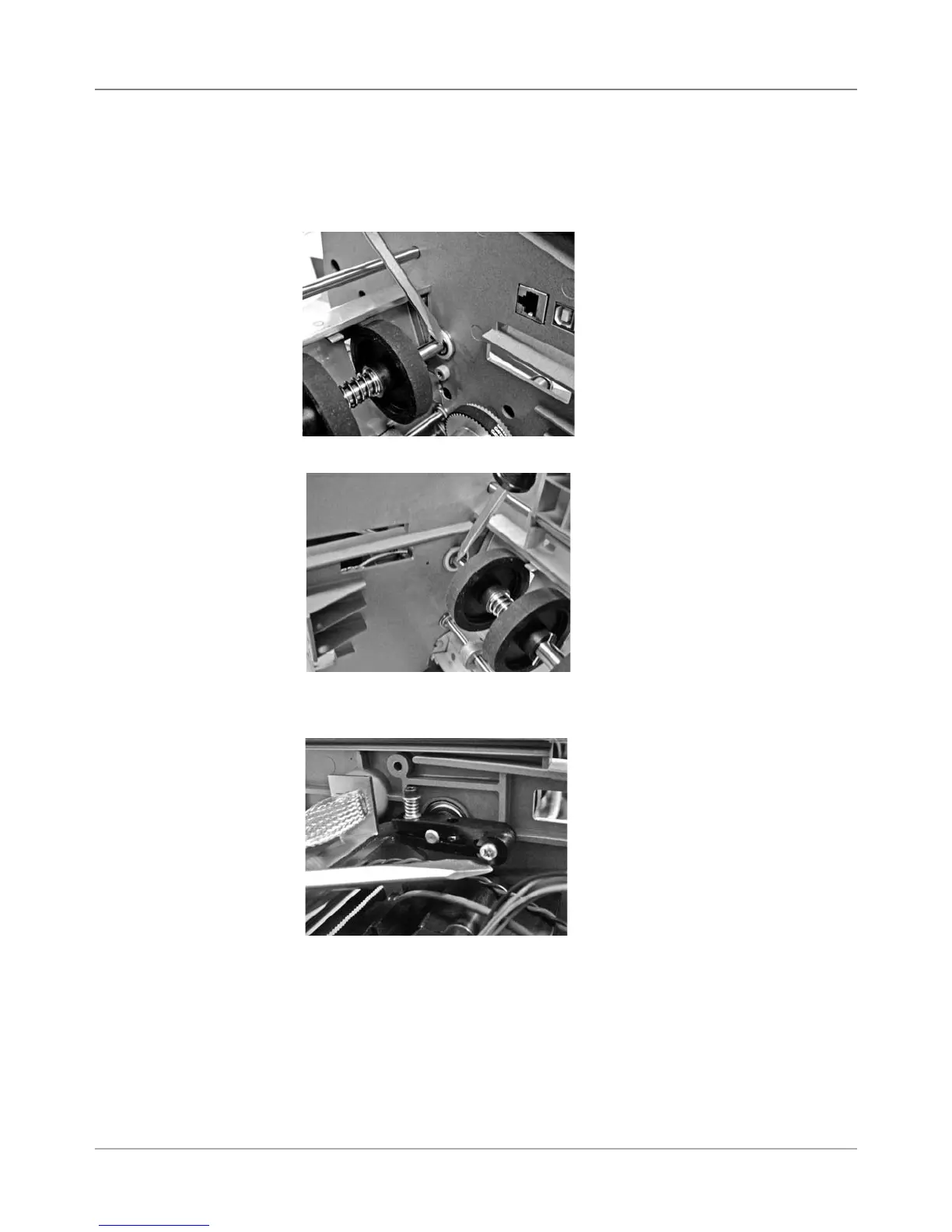

9. Remove e-clip on both sides of shaft (pointed to by screwdriver below).
11. Remove four screws holding (two on each side) holding H block assem-
bly to chassis.
12. Remove three phillips and one allen head screws holding deck to chas-
sis. Remove grounding strap. Remove deck.
13. Separate blue side frames and remove feed roller assembly.
10. On non-operator side, remove black brake (allen and phillips screw),
pointed to by screwdriver below.
5.9 Feed
Roller
Assembly
(continued)
7. Slide belt off pulley.
8. Remove e-clip and nylon washer (pointed to by screwdriver below). Re-
move pulley from shaft. Remove nylon washer and other metal washer.
To Next Page
