5-22 SV61831 Rev. A DA50S/DA55S/DA70S/DA75S AddressRight™ Printers Service Manual
5 • Removal & Replacement
DA70S/DA75S (WS71/WS76) Parts Removal
5.17 Motor
Drive Belts
and Main
Motor
(continued)
9. Disconnect encoder harness (ENC) at motor and J2 from main board and
remove main motor.
10. Remove e-clip and wave washer from inside side frame holding the jack
shaft to frame.
11. Unplug cable to encoder (ENC).
12. Remove main drive belt (see photo above).

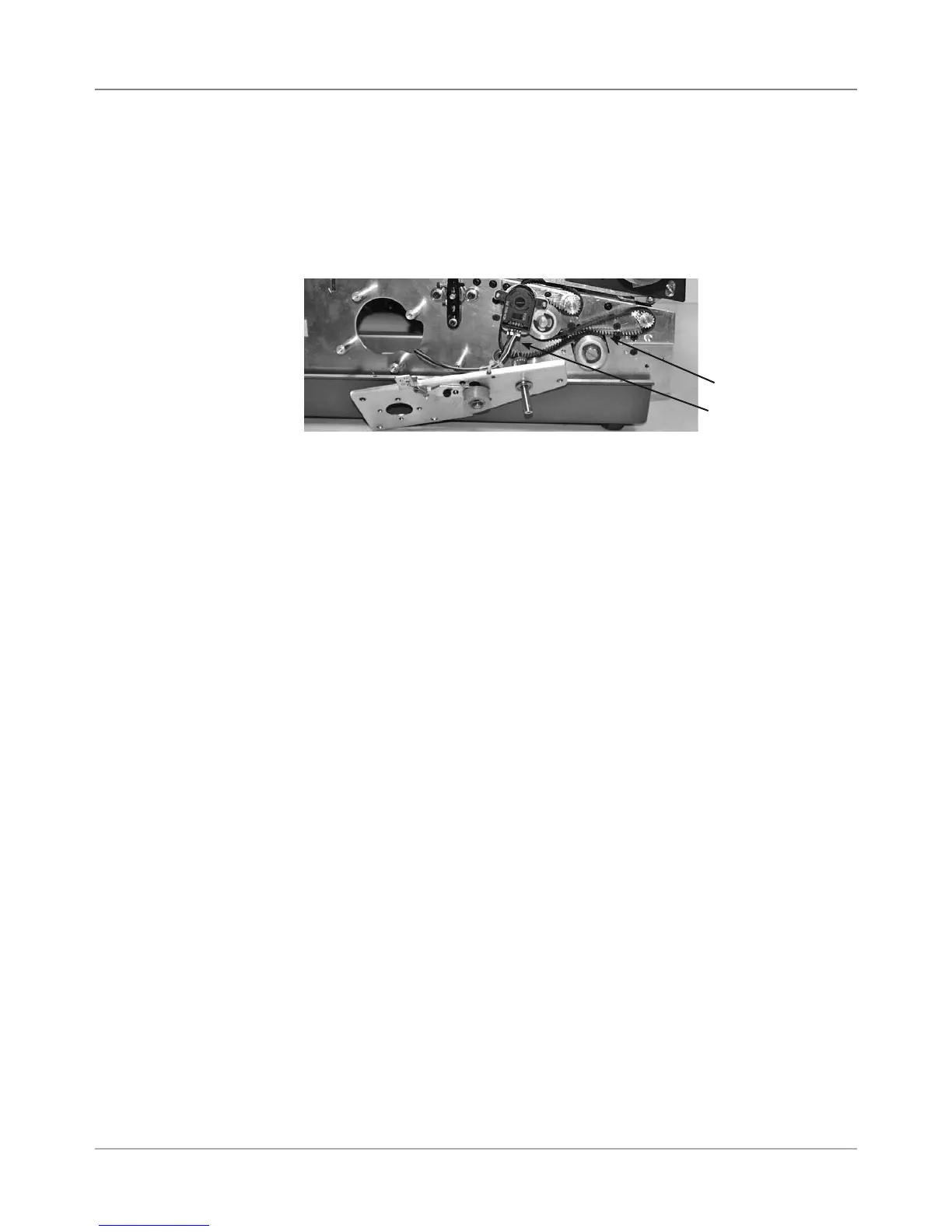

Encoder Cable
Main Drive Belt
To Next Page
