12
1112

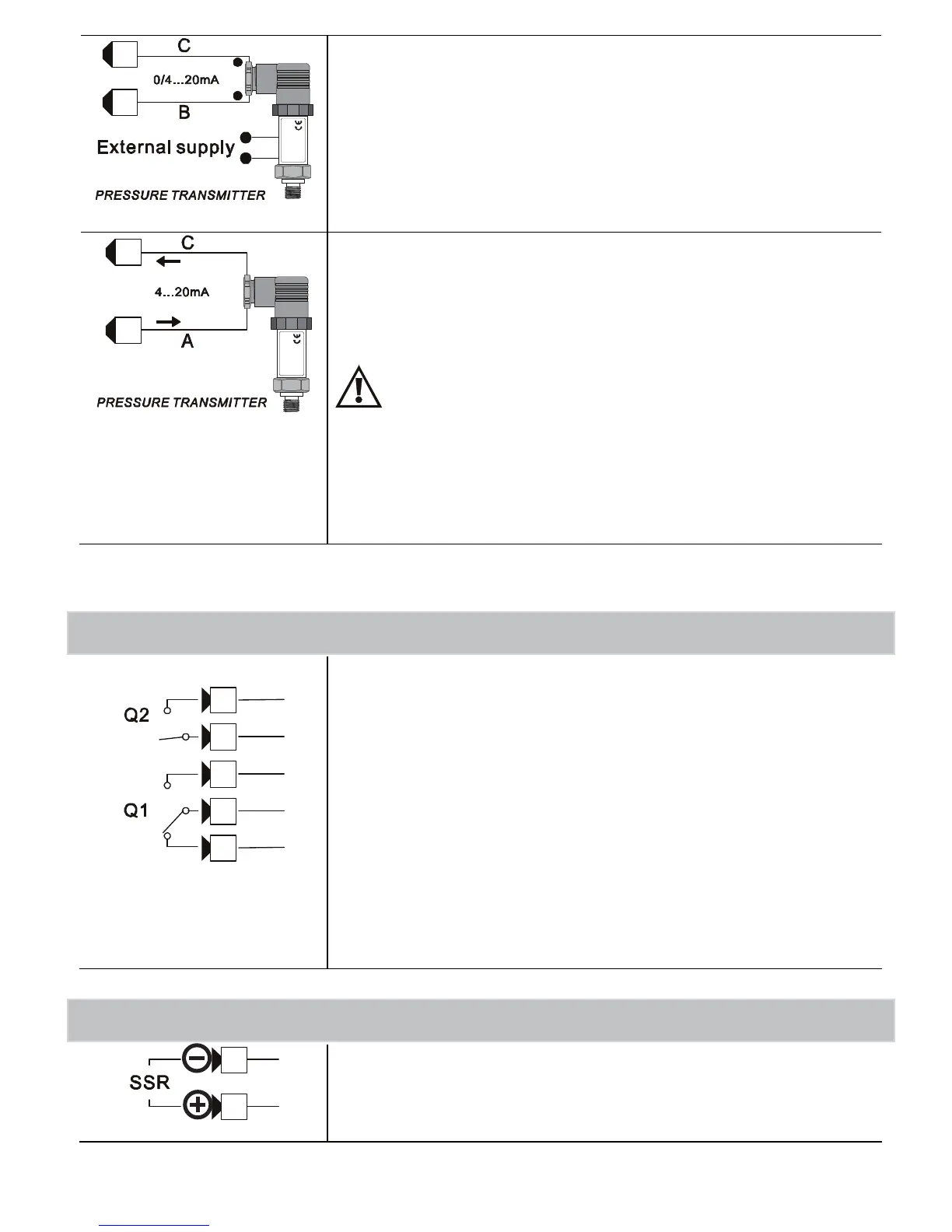

For signals 0/4…20mA with external
power of sensor
Comply with polarity
B= sensor ground
C= sensor output
12 9
For signals 0/4…20mA with two-wires
sensors
Comply with polarity
A= sensor supply
Check power supply requirements on
technical data sheet of sensor!
Capacity 12…24V / 30mA for models AD
Capacity 8V / 20mA for models A-B-C
C= sensor output
10.5 Relay outputs
7 6 5 4 3
•
Q1 capacity 8A/250V~ (Models A-B-C)
resistive (manoeuvre 2x10
5
min -
8A/250V~)
• Q1 capacity 10A/250V~ (Model AD)
resistive (manoeuvre 2x10
5
min -10A
/250V~)
• Q2 capacity 5A/250V~ resistive
(manoeuvre 2x10
5
min a 3A /250V~)
10.6 SSR output
98
Capacity 12…24V/30mA on model AD
Capacity 8V/20mA on models A-B-C
Command output if configured as SSR
