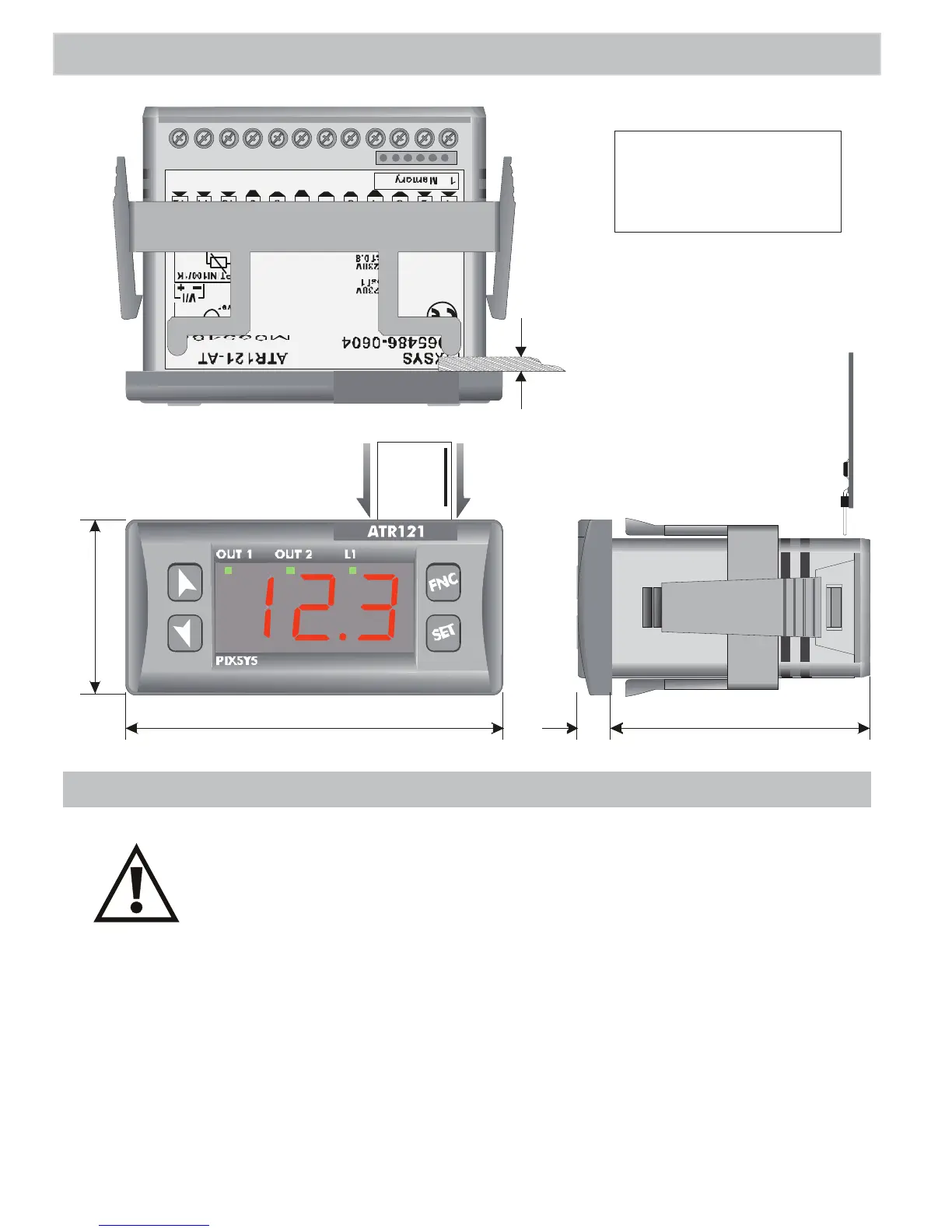

8.1 Sizes and installation
I
6 7
Dima di foratura
28.5 x 70.5 mm
Frontal panel cut-out
Spessore suggerito
2 mm
Suggested thickness
÷8
77 mm
35 mm
53 mm
7
42mm
inserimento
Memory Card
42mm
insert
Memory Card
9 - ELECTRICAL WIRINGS
Although this controller has been designed to resist
the noises in an industrial environment, please
notice the following safety guidelines:
• Separate control lines from the power wires.
• Avoid the proximity of remote control switches,
electromagnetic meters, powerful engines.
• Avoid the proximity of power groups, especially
those with phase control
