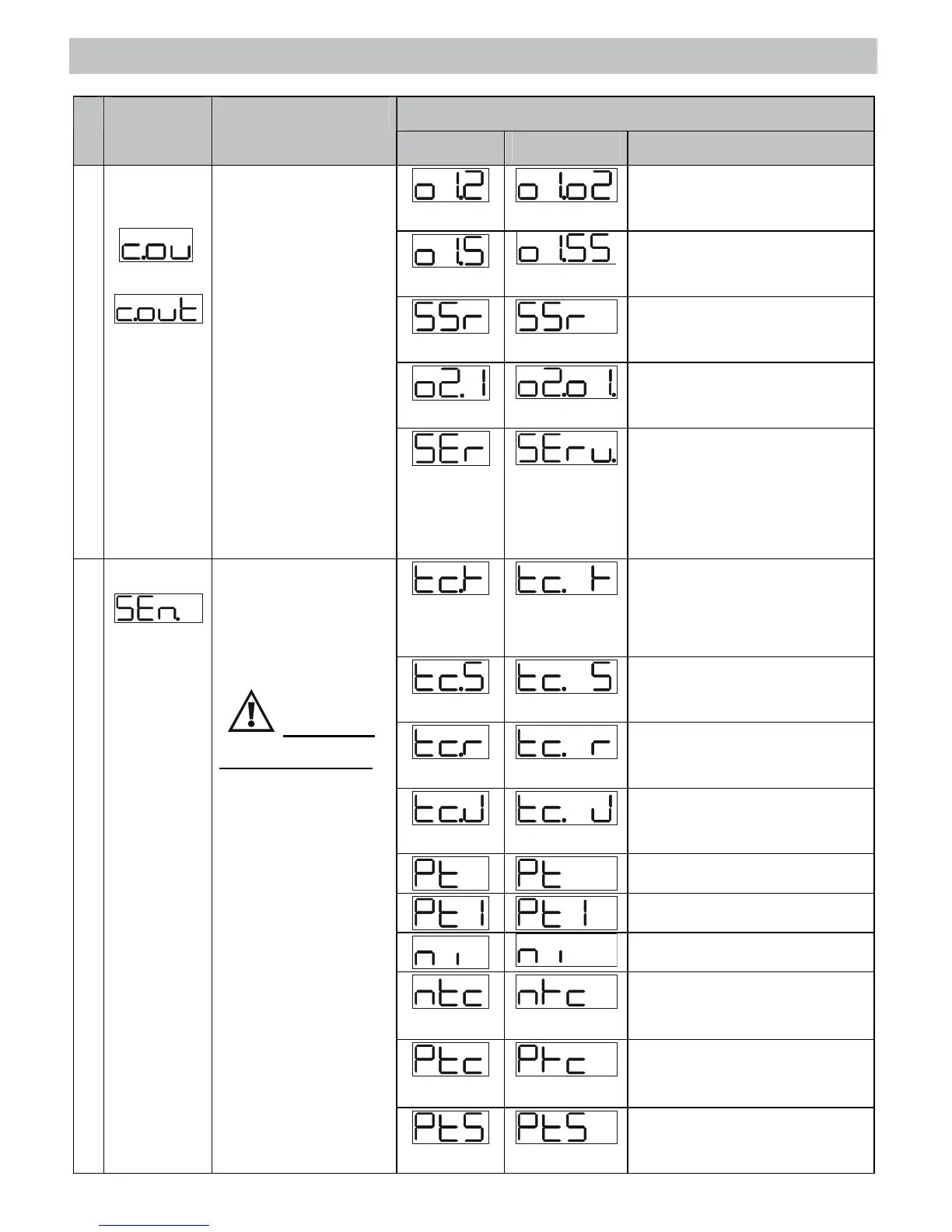

13 - CONFIGURATION PARAMETERS
Range P
Display Description
ATR121 ATR141
Description
Control Q1
Alarm Q2 (default)
Control Q1
Alarm SSR
Control SSR
Alarm Q1
Control Q2
Alarm Q1
1
ATR121
ATR141
Select type
of control
output
Open Q1
Close Q2 (SSR
on versions with
RS485)
TC type K
-260…1360 °C
(default)
TC type S
-40…1760°C
TC type R
-40…1760°C
TC type J
-200…1200°C
Pt100-200..600°C
Pt100-200..140°C
Ni100 -60..180°C
Ntc 10KΩ
-40…125°C
Ptc 1KΩ
-50…150°C
2
Select type
of connected
sensor
only for
AD models :
To assure
optimal working
of the unit, use
ground-isolated
sensors.
Otherwise use
single isolated
transformers for
each controller.
Pt500-
100…600°C
