ATR401 - User manual 15

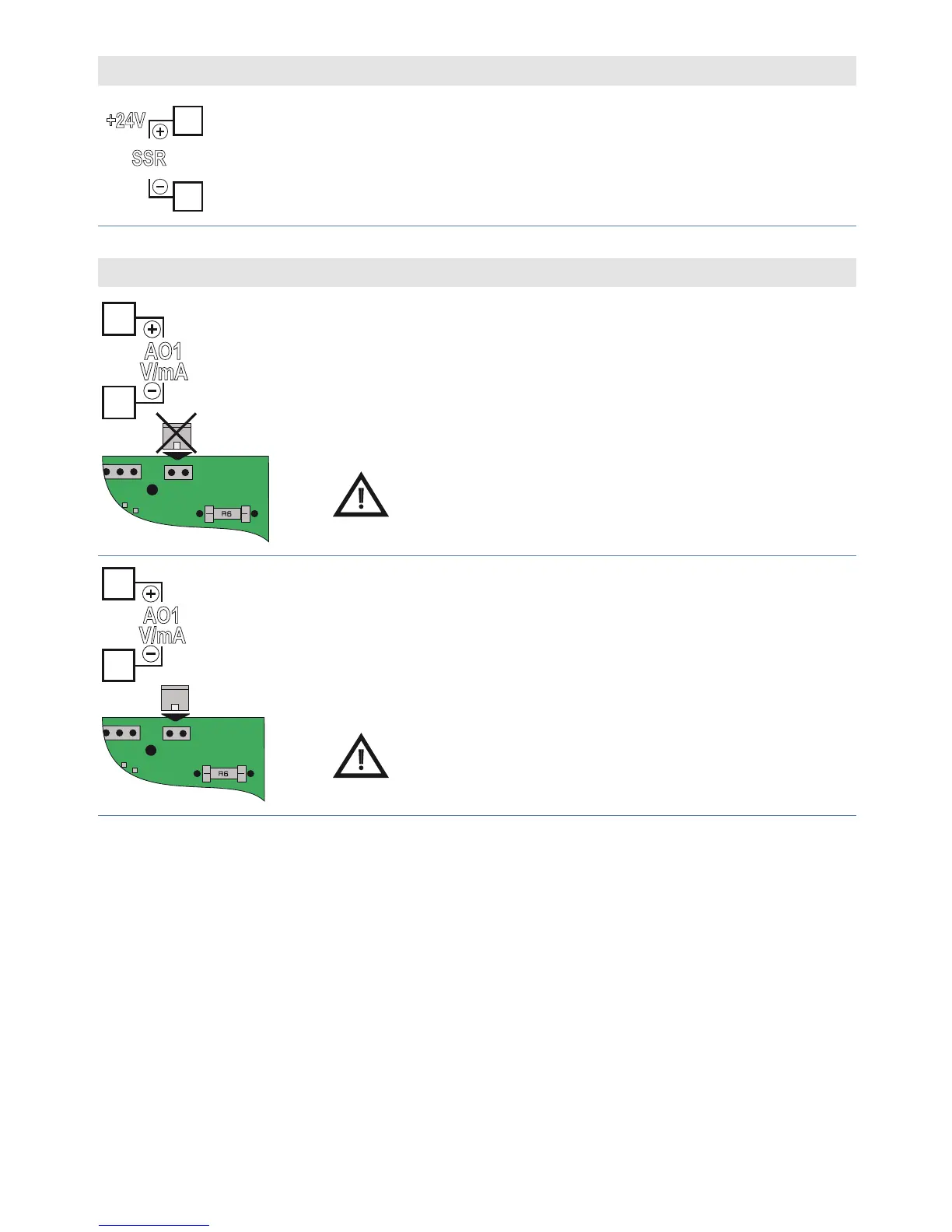

SSR output
18
17
+24V
SSR
SSR Command output capacity 24 V / 25 mA.
Output mA or Volt (ATR401-22ABC-T e ATR401-22ABC-D)
9
10
AO1
V/mA
JP3
Analogue output in mA (galvanic isolated)
con gurable using parameters as command (par. 1
) or retransmission of process-setpoint (par.
88 ).
To use analogue output in mA do not place
JP3.
9
10
AO1
V/mA
JP3
Analogue output in Volt (galvanic isolated)
con gurable using parameters as command (par. 1
) or retransmission of process-setpoint (par.
88 ).
To use analogue output in Volt place JP3 as
indicated in the  gure.
