56 ATR401 - User manual

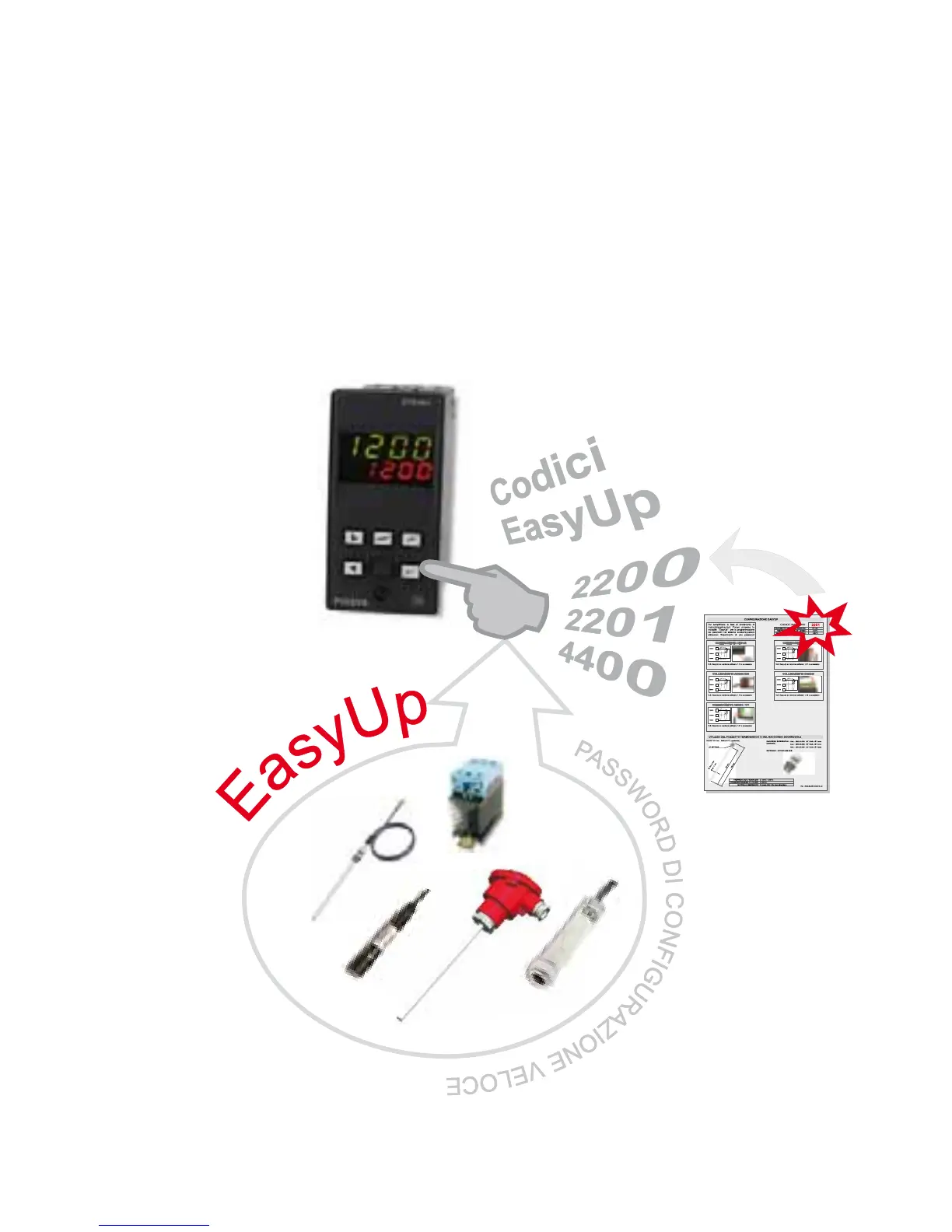

15 Con guration EASY-UP
To simplify the setting of parameters and the integration of the di erent
components involved in the control system, Pixsys introduces the EASY-UP
coding which allows to set sensors and/or command outputs in one single
step. By means of the code listed in the data sheet enclosed to the sensor or
actuator (SSR, motorized valve, etc.) the EASY-UP coding will set the relevant
main parameters on the controllers (ex. selection of PT100 on parameter
“Sensor” and the corresponding measuring range on parameters “Lower
and Upper limits of the setpoint”). Di erent codes may be entered on the
controllers in sequence to con gure inputs, control output or retransmission
of signal.
