Pixsys ATR 401 - Dimensions and Installation

8 ATR401 - User manual
Derivative time 0,0...999,9 sec. (0 excludes derivative function)
Controller
functions
Manual or automatic tuning, selectable alarms,
protection of control and alarm setpoints.
3 Dimensions and Installation
U1
C1
CN1
16
MEMORY C.121
FNC
PRGM
SET
PIXSYS
ATR401
A 3
MAN TUN REM
C 1
C 2
A 1
A 2

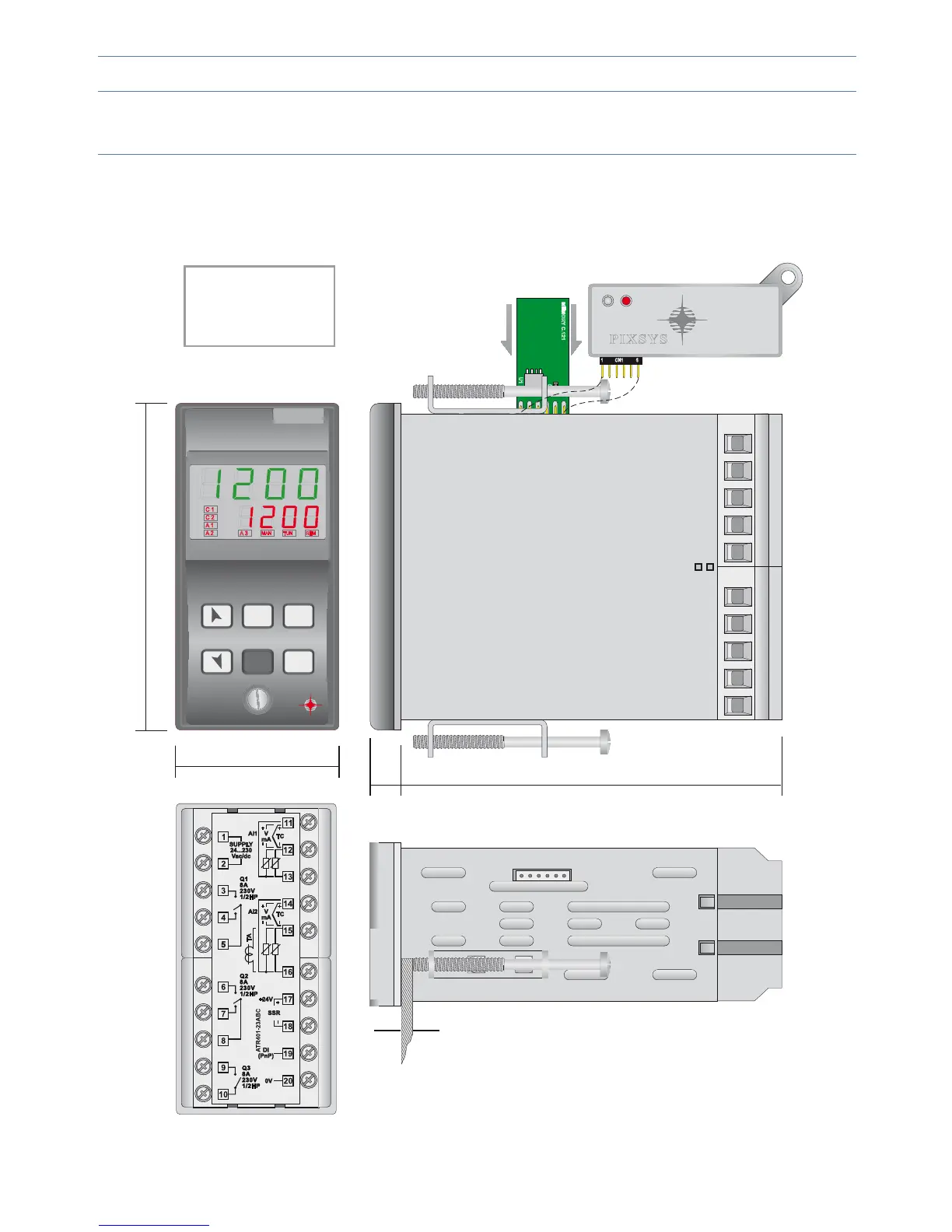

Dima di foratura
46 x 91 mm
Frontal panel cut-out
1
Memory Card
6
48 mm
112 mm
96 mm
11
Spessore suggerito / Suggested thickness
2÷8 mm
42mm
inserimento / insert
Memory Card
CN1
1 6
PIXSYS
Memory Card (optional)
with battery
Cod. 2100.30.003
Memory Card (optional)
Cod. 2100.30.002
