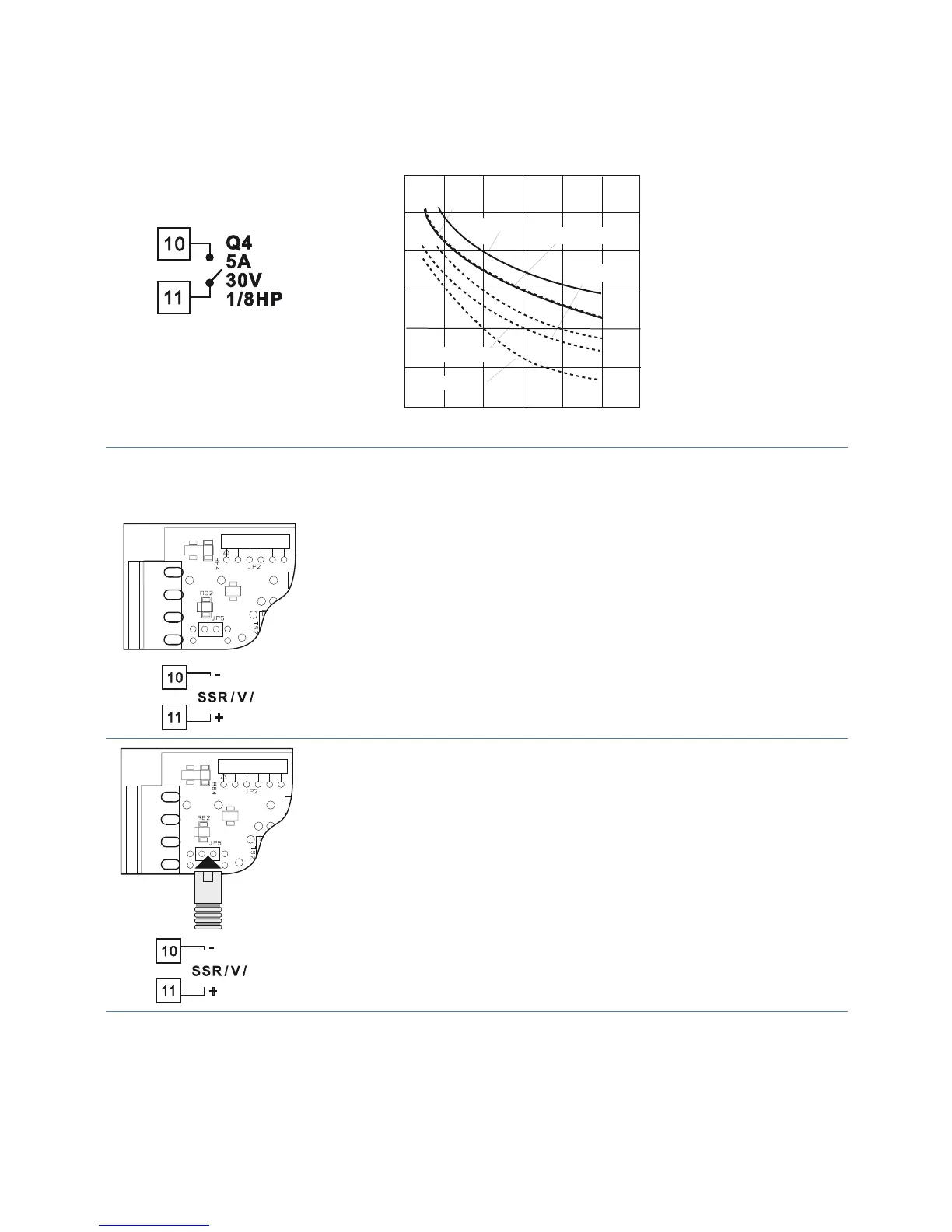

Relay outputs Q4 (ATR621-14ABC)
Contacts capacity:
• 5A, 250Vac, resistive charge 18x10
4
operations.
50
20
10
5
0
1
23 4
Contact load current (A)
5
Service life (x10
4
operations)
100
AC125 V
AC125V COS ø=0.4
DC30 V t=7ms
Life Curve
AC250V COS ø=0.4
DC30 V t=15ms
200
AC250V
DC30 V
Output mA / Volt (ATR621-13ABC-T)
J
Analogue output in mA con gurable as command
(Par.  ) or retransmission of process-setpoint
(Par. ).
To use analogue output in mA, JP5 has not to
be entered.
I
Analogue output in Volt con gurable as command
(Par.  ) or retransmission of process-setpoint
(Par. ).
To use analogue output in Volt, enter JP5 as
indicated in the  gure.
