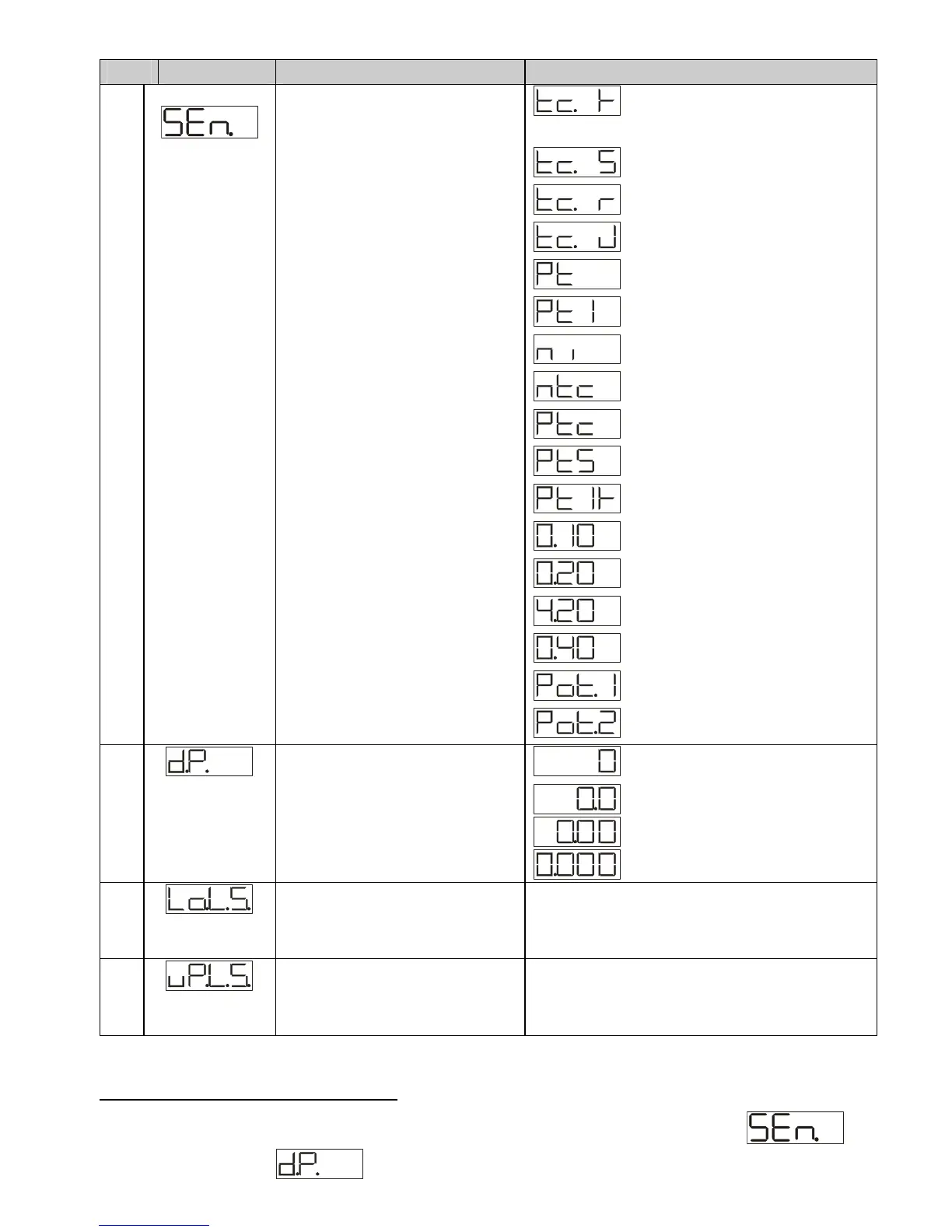

no. Display Parameter description Entering range
2
Sensor
Analog input
configuration
Tc-K (-260…1360°C)
(Default)
Tc-S (-40…1760°C)
Tc-R (-40…1760°C)
Tc-J (-200…1200°C)
PT100 (-200…600°C)
PT100 (-200…140°C)
NI100 (-60…180°C)
NTC10K (-40…125°C)
PTC1K (-50…150°C)
PT500 (-100…600°C)
PT1000 (-100…600°C)
0…10Volt
0…20mA
4…20mA
0…40mVolt
Pot. max 6Kohm
Pot. max 150Kohm
3
Decimal Point
Select number of
displayed decimal points
Default
4
Lower Limit
Setpoint
Lower limit setpoint
-999…+9999 digit
∗
(degrees if temperature)
Default: 0.
5
Upper Limit
Setpoint
Upper limit setpoint
-999…+9999 digit*
(degrees if temperature)
Default: 1750.
∗
The display of the decimal point depends on the setting of parameter
and the parameter .
