Pixsys ATR142 - Page 29

29

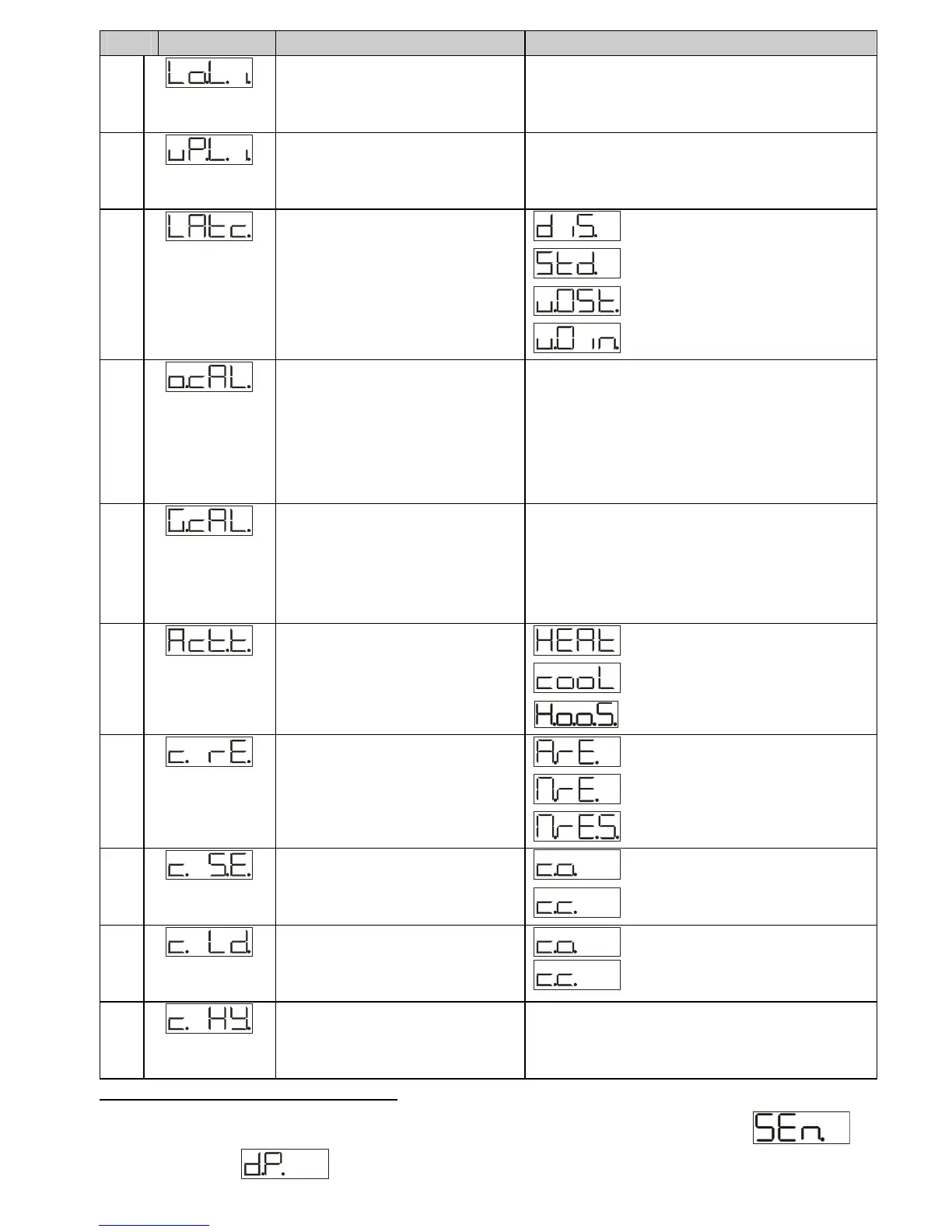

no. Display Parameter description Entering range
6
Lower Linear
Input
Lower range limit An1
only for linear input
-999…+9999 digit*
Default: 0.
7
Upper Linear
Input
Upper range limit An1
only for linear input
-999…+9999 digit*
Default: 1000.
8
Latch On
Function
Automatic setting of limits
for Linear input
(Disabled) Default
(Standard)
(Virtual Zero Stored)
(Virtual Zero Initialized)
9
Offset
Calibration
Offset calibration
Number added to
displayed value of
process (normally
corrects the room
temperature value)
-999…+1000 digit* for linear sensors
and potentiometers.
-200.0…+100.0 tenths for
temperature sensors.
Default: 0.0.
10
Gain
Calibration
Gain calibration
Value multiplied with
process value to perform
calibration on working
point
-10.0%…+10.0%
Default: 0.0.
11
Action type
Regulation type
: Heating (N.O.) Default
: Cooling (N.C.)
: HEat Off Over Setpoint
12
Command
Reset
Type of reset for state of
command contact
(always automatic in PID
functioning)
(Automatic Reset) Default
(Manual Reset)
(Manual Reset Stored)
13
Command
State Error
State of contact for
command output in case
of error
Default
14
Command
Led
State of the OUT1 led
corresponding to the
relevant contact
Default
15
Command
Hysteresis
Hysteresis in ON/OFF or
dead band in P.I.D.
-999…+999 digits
∗
(tenths of degree if temperature)
Default: 0.0.
∗
The display of the decimal point depends on the setting of parameter
and parameter .
