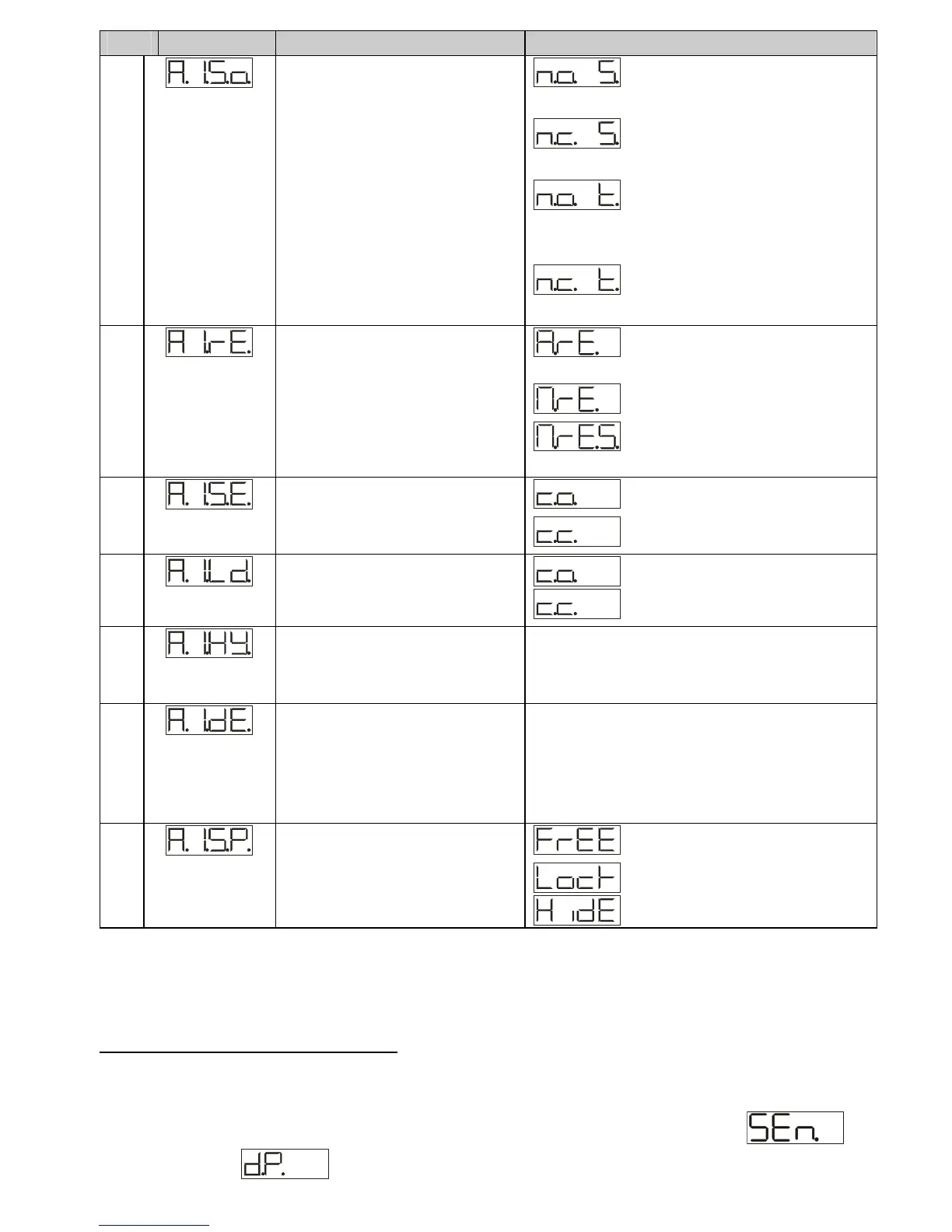

no. Display Parameter description Entering range
24
Alarm 1 State
Output
Alarm 1 output contact
and intervention type
(n.o. start) Default
Normally open, active at start
(n.c. start)
Normally closed, active at start
(n.o. threshold)
Normally open, active on reaching
alarm
4
(n.c. threshold)
Normally closed on reaching alarm
4
25
Alarm 1
Reset
Type of Reset for contact
of alarm 1
(Automatic Reset) Default
(Manual Reset)
(Manual Reset Stored)
26
Alarm 1 State
Error
State of contact for alarm
1 output in case of error
Default
27
Alarm 1 Led
State of the OUT2 led
corresponding to the
relative contact
Default
28
Alarm 1
Hysteresis)
Alarm 1 hysteresis
-999…+999 digit
∗
(tenths of degree if temperature).
Default: 0.
29
Alarm 1 Delay
Alarm 1 delay
-180…+180 Seconds
Negative: delay in alarm output
phase.
Positive: delay in alarm entry phase.
Default: 0.
30
Alarm 1
Setpoint
Protection
Alarm 1 set protection.
Does not allow user to
modify setpoint
Default
4
On activation, the output is inhibited if the controller is in alarm mode. Activates only
if alarm condition reappers, after that it was restored.
∗
The display of the decimal point depends on the setting of parameter
and parameter .
