INTRODUCTION

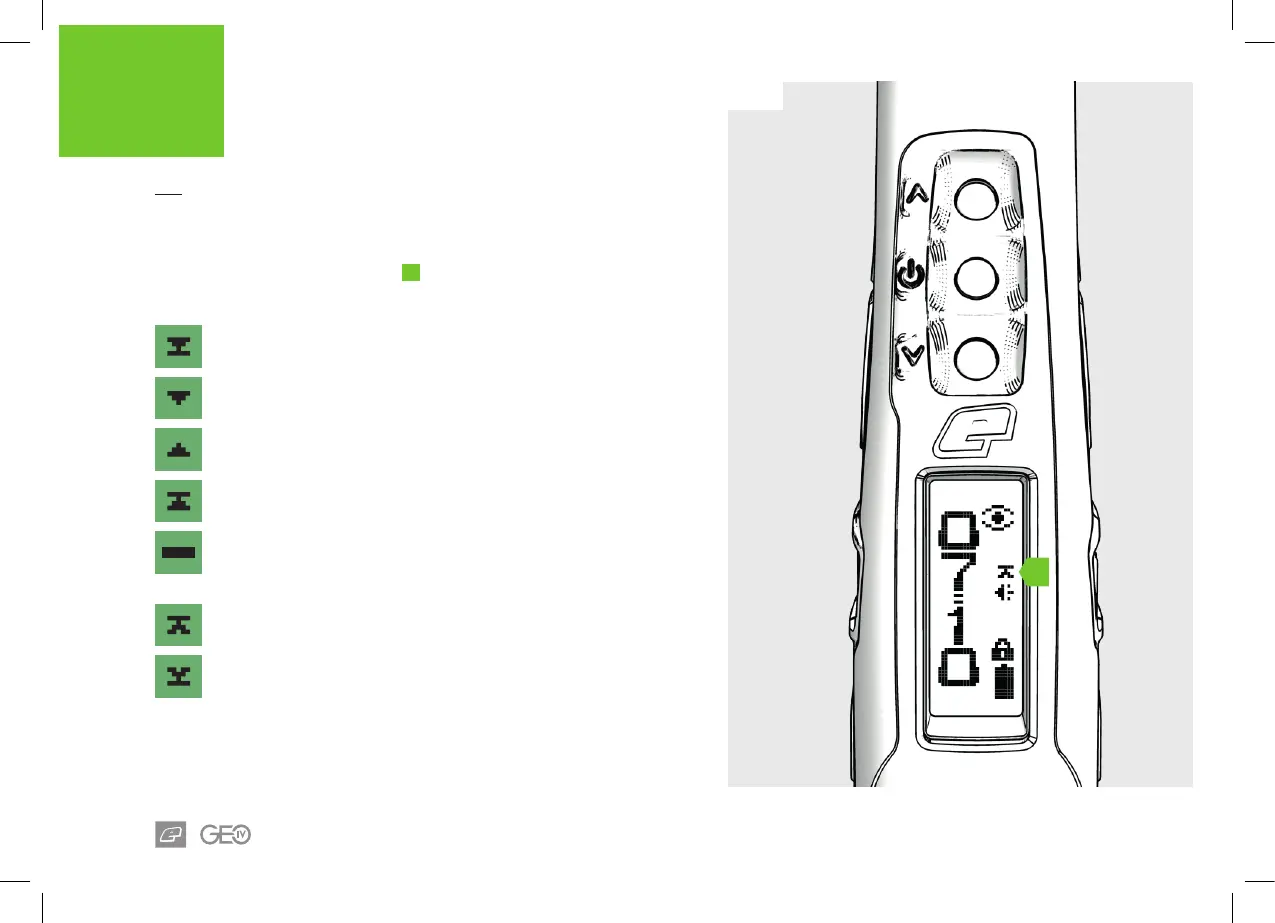

TRIGGER DETECTION INDICATOR
FIG-1
The trigger detection Indicator (TDI)
A
relays the state of the trigger,
ranging from fully released to fully depressed:
OPTO sensor selected, reading 0%
OPTO reads 0% meaning the trigger is fully released.
OPTO sensor selected, reading below RELEASE point
OPTO senses that the trigger is in a released state.
OPTO sensor selected, reading above PULL point
OPTO senses the trigger is in a pulled state.
OPTO sensor selected, reading 100%
OPTO reads 100% meaning the trigger is fully depressed.
OPTO sensor selected, reading mid-range
OPTO senses that the trigger is in a half-pulled state.
Microswitch selected, actuated
The trigger is in a pulled state.
Microswitch selected, non actuated
The trigger is in a released state.
The OPTO is the factory default trigger sensor setting. This can be
changed to the microswitch via the HARDWARE menu (page 33).
