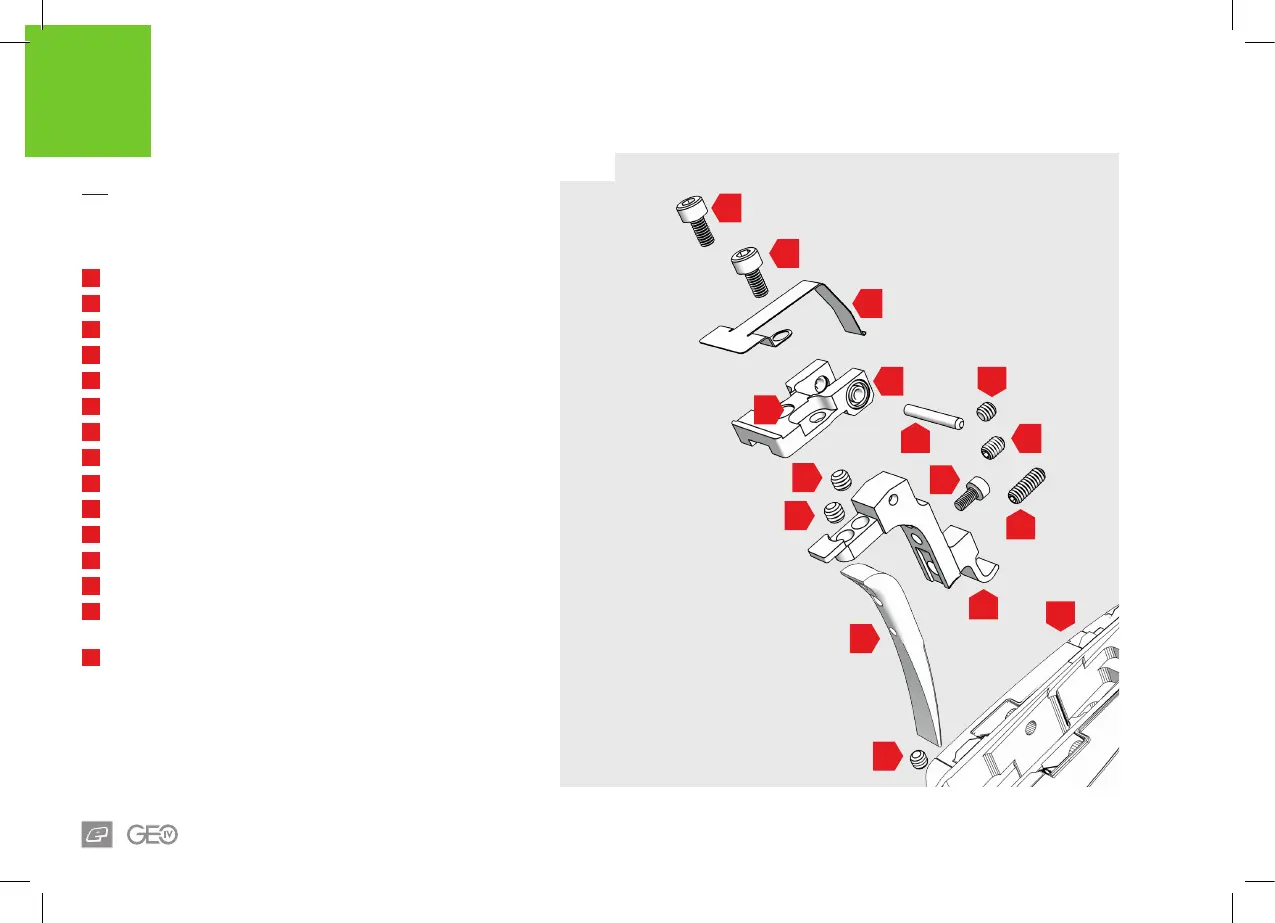

PLANET ECLIPSE GEO 4 - Trigger Assembly

FIG-1
F
C
E
M
N
K
J
L
G
H
O
A
A
B
D
I
54
FIG-1
A
Bearing carrier screws (M2.5 x 5 cap-head socket)
B
Trigger spring
C
Magnet
D
Bearing carrier
E
Pre-travel adjuster screw (6-32 UNC x 1/8” socket set)
F
Magnet adjuster screw (6-32 UNC x 1/8” socket set)
G
Trigger pin
H
Trigger pin locking screw (6-32 UNC x 1/8” socket set)
I
Spring adjuster screw (6-32 UNC x 3/16” socket set)
J
Microswitch screw (6-32 UNC x 3/8” socket set)
K
Trigger shoe retaining screw
L
Trigger
M
Trigger shoe
N
Post-travel adjuster screw (in frame)
6-32 UNC x 1/8” socket set
O
GEO 4 frame
TECHNICAL INFORMATION
TRIGGER ASSEMBLY
