PLANET ECLIPSE GEO 4 - Frame Assembly

FIG-1
B
A
J
D
C
L
K
I
E
C
A
F
M
H
G
56
TECHNICAL INFORMATION

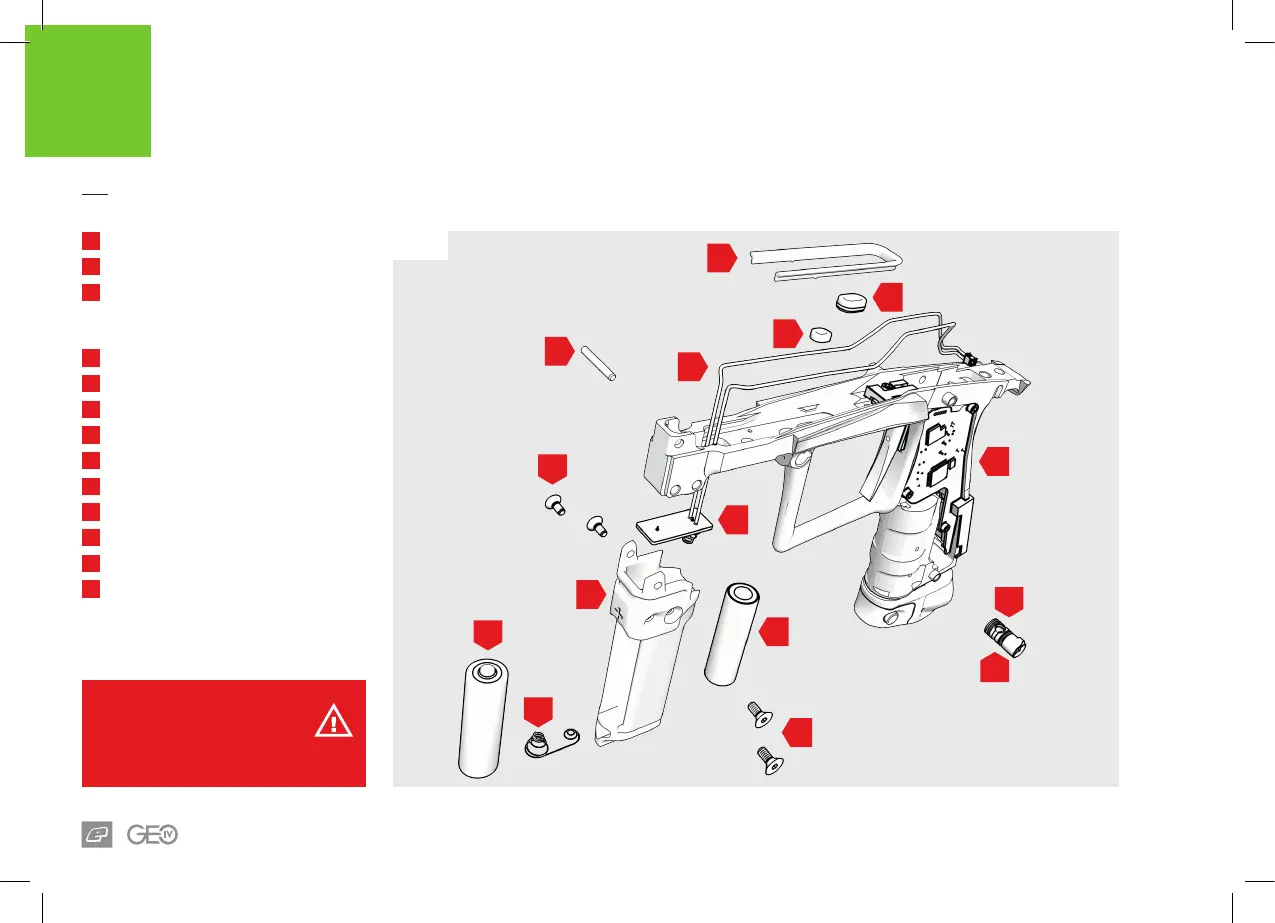

FRAME ASSEMBLY
A
AA battery
B
Battery holder
C
Battery holder screws (x4)
6-32UNC x 5/16
countersunk socket screws
D
SFR assembly
E
Frame assembly
F
Power cable
G
Wire tidy
H
Solenoid output seal
I
Solenoid input seal
J
Battery terminal circuit board
K
4 x 1 o-ring (x2)
L
Battery jumper
M
Foregrip pin
WARNING!
DO NOT use poor quality batteries.
WARNING
