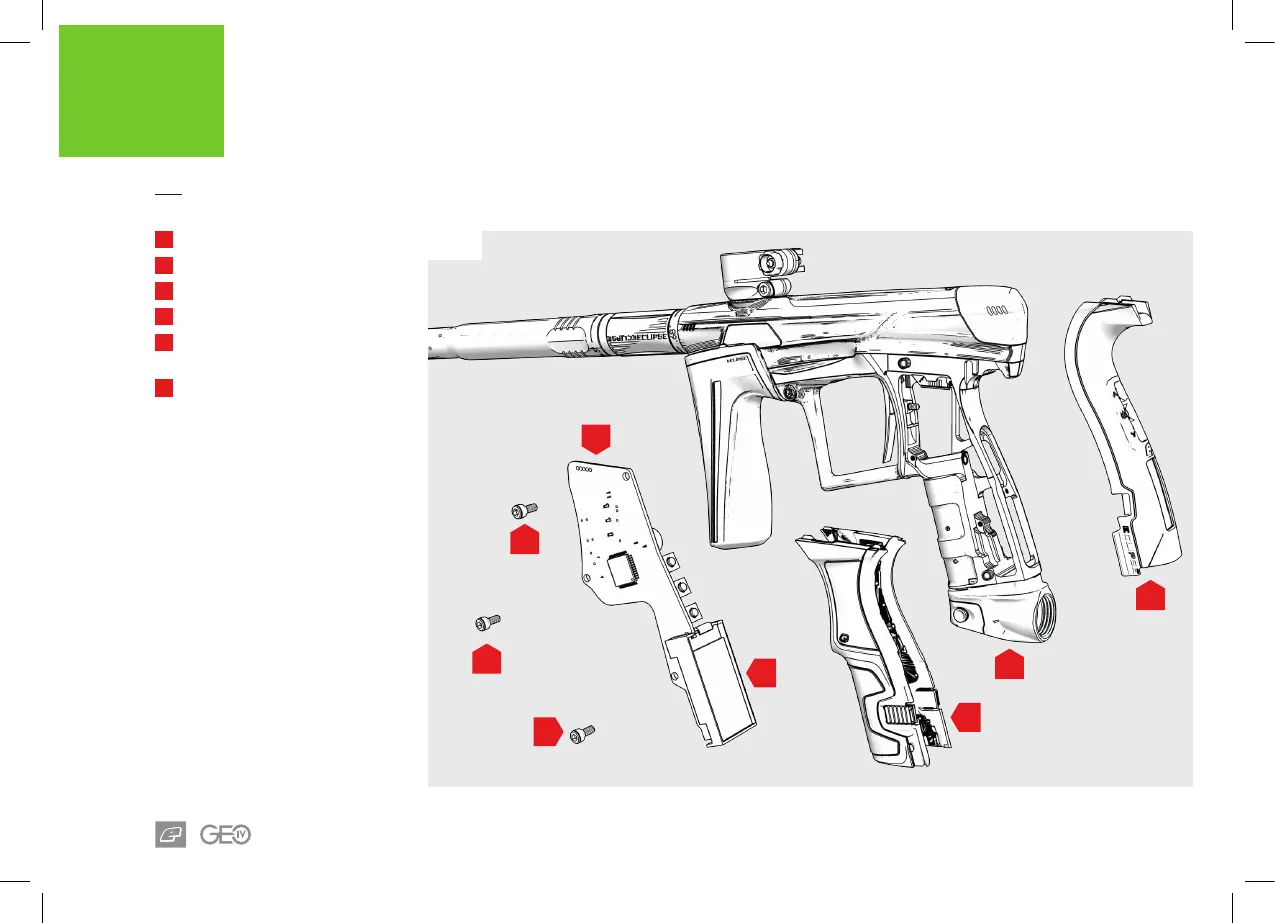

FRAME ASSEMBLY
A
POPS (built into frame)
B
Rear grip section
C
Front grip section
D
Primary circuit board
E
GEO 4 Circuit board screws (x3)
M2.5 x 5 socket cap-head
F
LCD module
