ELECTRONICS
NAVIGATING THE
USER INTERFACE

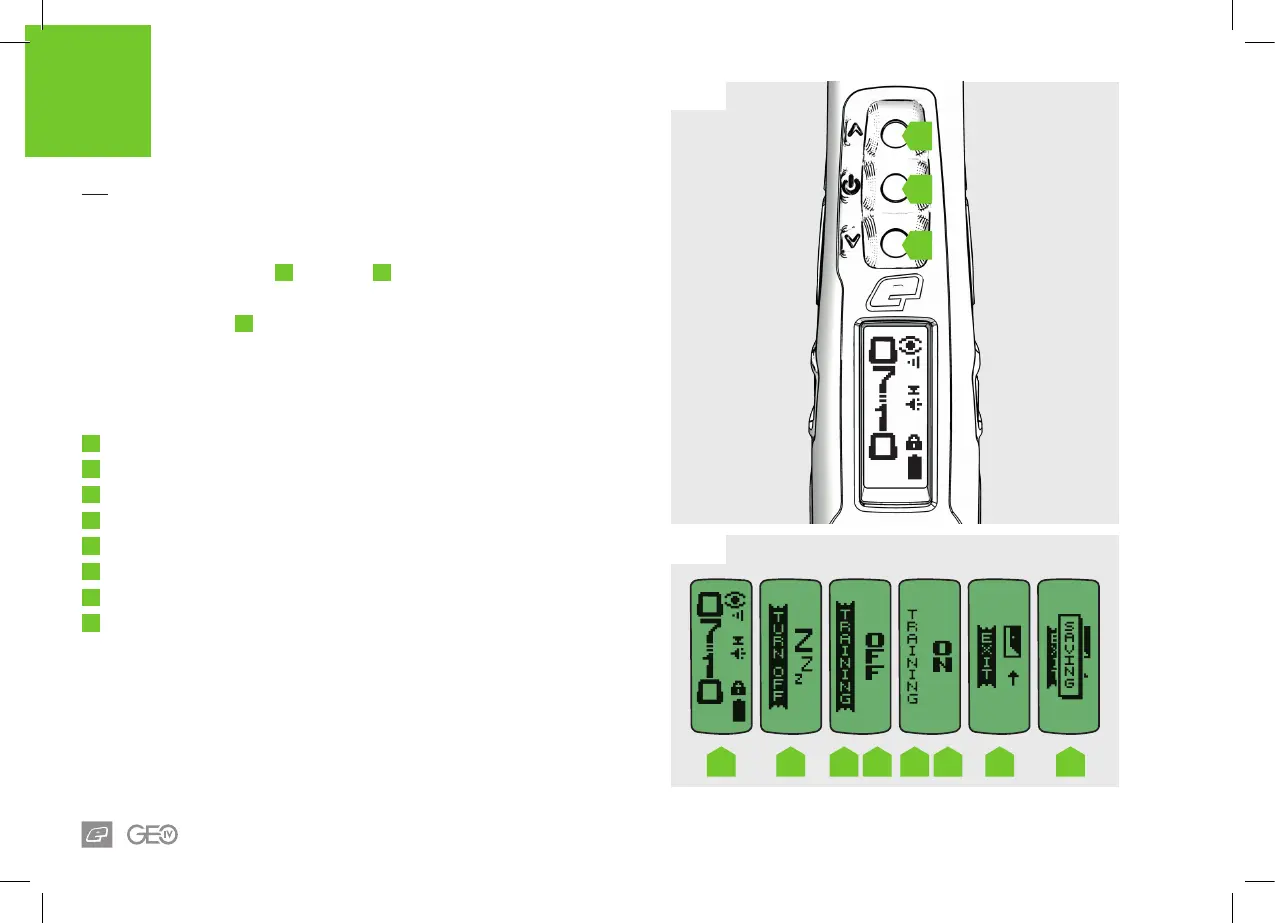

FIG-1
Once in a menu use the Up
B
and Down
C
buttons to navigate through the
menu items.
Use the Select button
A
to select the item. If the item is an editable
parameter then it can be adjusted with the Up and Down buttons and
accepted with another push of the Select button.
FIG-2 - Navigation example
1
Marker is On.
2
Push and hold Select button until the TURN OFF menu item appears.
3
Up or Down buttons are used to nd TRAINING.
4
Select button selects the TRAINING parameter for editing.
5
Up and Down buttons scroll the TRAINING parameter options (ON/OFF).
6
Select button conrms the desired option.
7
Up or Down buttons are used to nd exit.
8
Select button saves the change and returns the user to the run screen.
