PLANET ECLIPSE GEO 4 - SL5 Inline Regulator

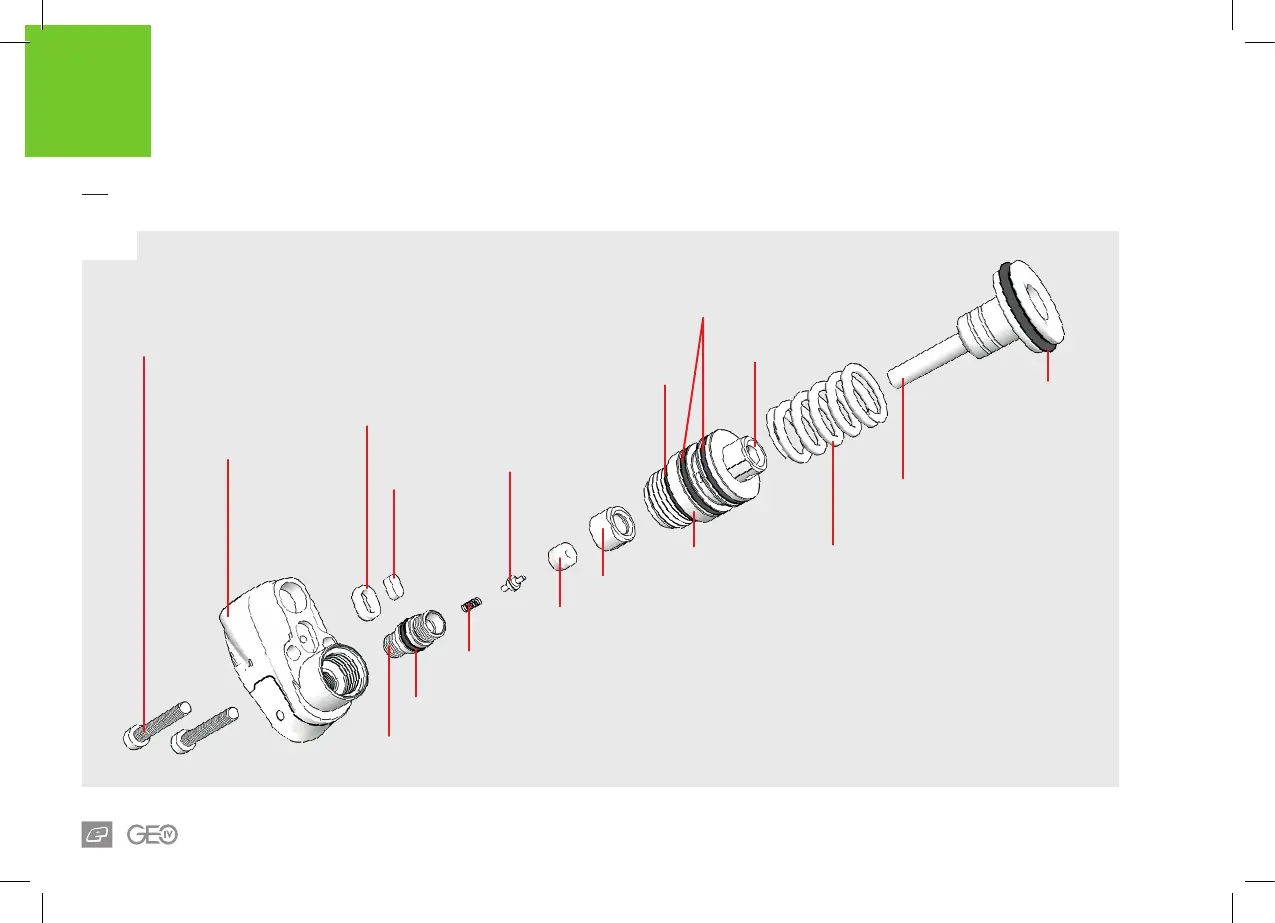

FIG-1
POPS screws
10-32 UNF x 1.25” cap head socket
POPS seal
Piston o-ring
14 x 2 NBR70
Regulator piston
Regulator spring
3
Adjuster top
Regulator body
Regulator seal
Purge poppet spring
4
POPS lter
Purge poppet
4
#015 NBR70
#016 NBR70
nternal
#008 NBR70
Adjuster bottom
Adjuster o-ring #011 NBR70
POPS assembly
1 Reset the SL5 regulator to factory after re-assembly.
2 Only use the SL5 regulator with the GEO 4.
3 Only use the GEO 4 SL5 spring with the SL5 inline regulator.
4 Failure to re-install the Purge poppet assembly correctly
could seriously damage the GEO 4.
50
TECHNICAL INFORMATION
SL5 INLINE REGULATOR
1,2
