TECHNICAL INFORMATION

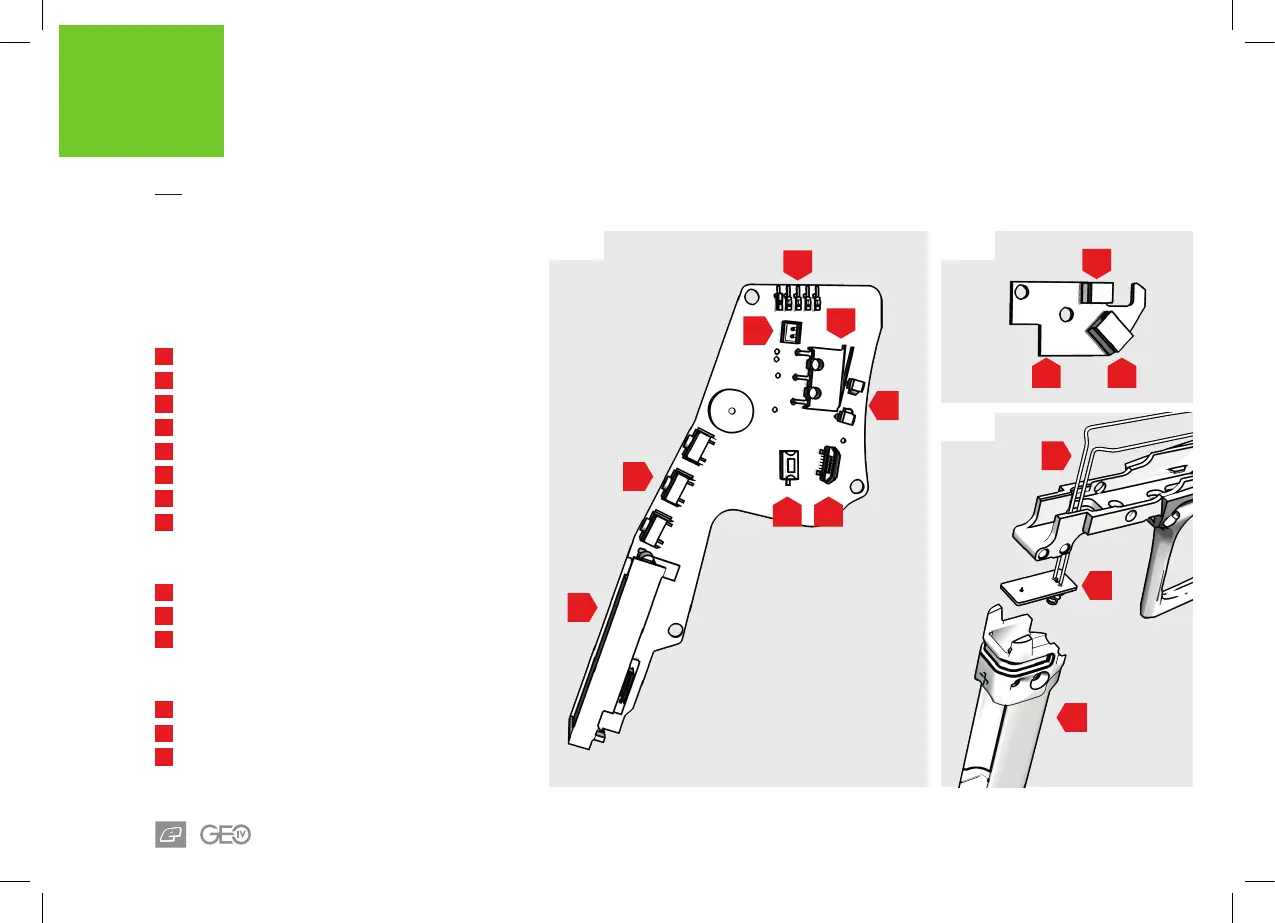

GEO 4 CIRCUIT BOARDS
The GEO 4 has three circuit boards. Two in the
grip frame and the battery terminal board in the
foregrip, which powers the main circuit board.
FIG-1 GEO 4 primary circuit board
A
LCD module
B
Navigation console push buttons
C
Tournament lock button
D
Power supply socket
E
Microswitch
F
Trigger OPTO sensors
G
E-Portal Micro USB socket
H
Secondary circuit board connector
FIG-2 GEO 4 secondary circuit board
I
Solenoid socket
J
Breech sensor socket
K
Secondary circuit board connector contacts
FIG-3 GEO 4 battery terminal circuit board
L
Battery terminal circuit board
M
Primary circuit board power supply
N
Battery holder
