PLANET ECLIPSE GEO 4 - GEO 4 Bolt Assembly

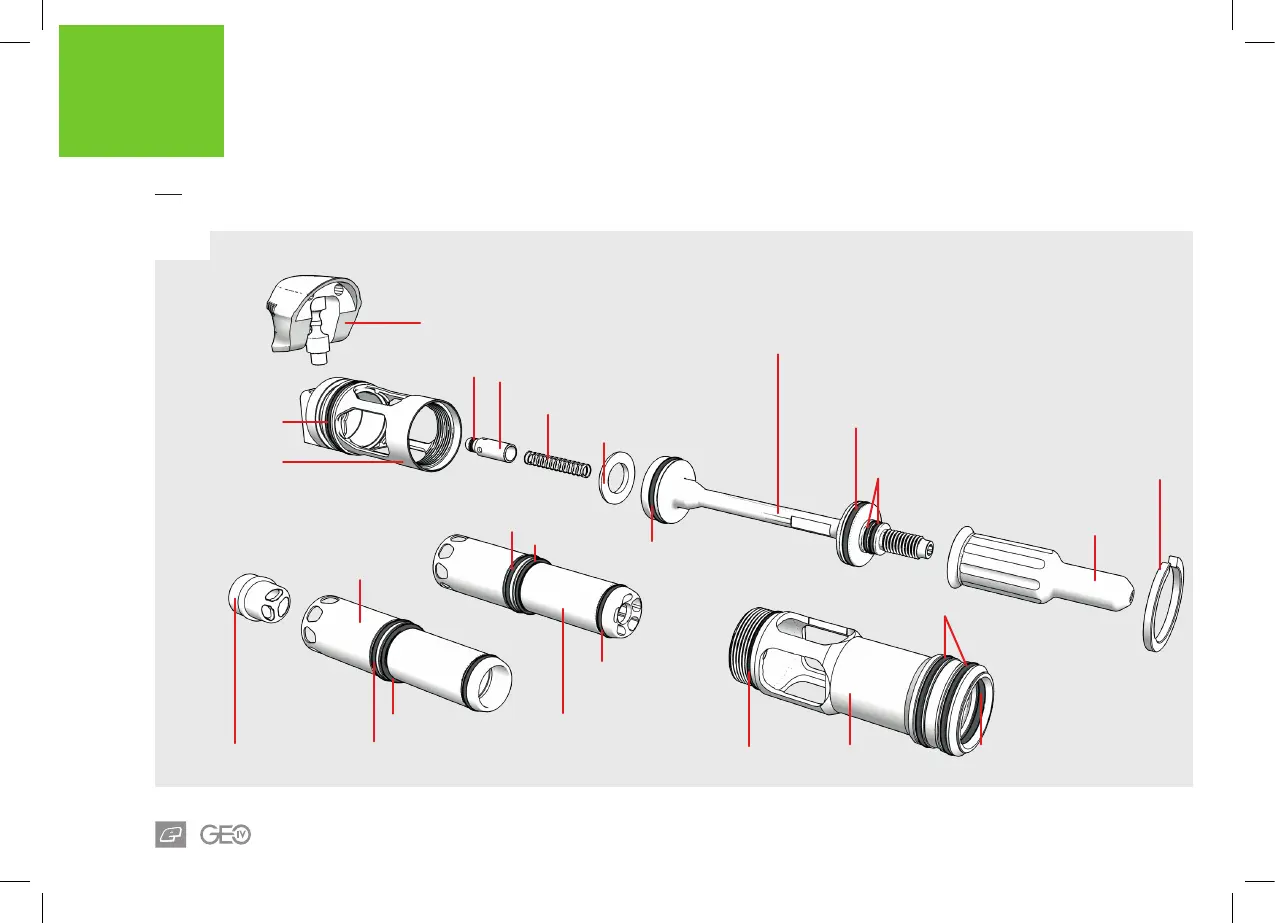

FIG-1
Propshaft
Pin plunger
3 x 1 o-ring
Propshaft spring
14 x 2 NBR70
#020 NBR70
22 x 1 NBR90
7 x 1 NBR70
Retaining ring
Propshaft tip
Propshaft bumper
14 x 2 NBR70
Bolt bonnet
ST2.5 bolt
14 x 2 NBR70
14 x 2 NBR70
#015 NBR90
#013 NBR70
ST Bolt
#015 NBR90
ST2.5 bolt tip
Bolt can
#017 NBR70
#021 NBR70
Valve body
51
TECHNICAL INFORMATION
GEO 4 BOLT ASSEMBLY
