PLANET ECLIPSE GEO CS1 - Reset: Installing the Batteries

FIG-1
FIG-2 FIG-3
–
+
+
–
39
GEO:CS1
RESET
INSTALLING THE BATTERIES
The CS1 uses 2 x AA (LR6, 1.5V) batteries situated in the foregrip.
Switch o the CS1 and place on a at surface - with the feed neck
facing away from you and the barrel pointing to the right.

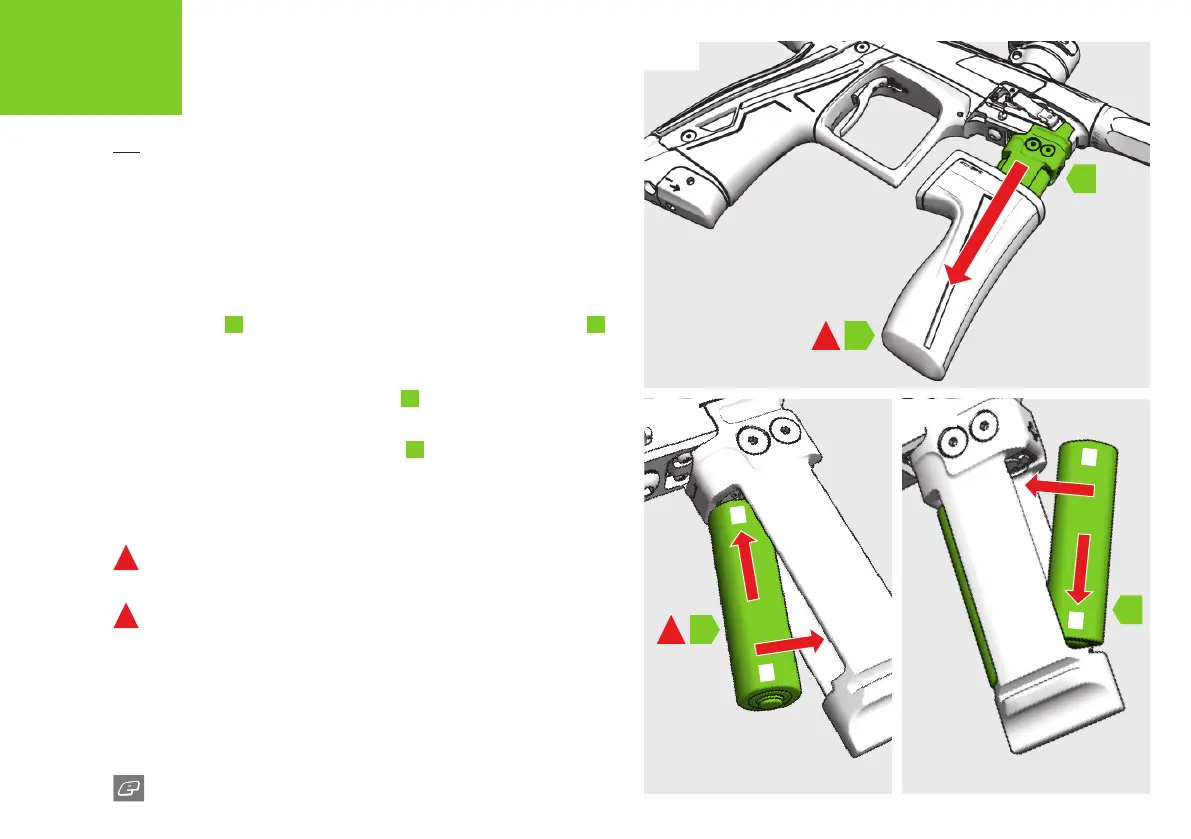

FIG-1
Pull the foregrip
A
away from the body to expose the battery holder
B
.
FIG-2 / FIG-3
Insert a new AA battery in the rear recess
C
with the positive terminal
pointing down as shown.
Insert a new AA battery in the front recess
D
with the positive terminal
pointing up as shown.
Replace the rubber foregrip as in FIG-1.
1
ALWAYS pull in a straight, downwards motion NOT at an angle or
with a twist.
2
DO NOT use poor quality batteries.
B
D
1
2
A
C
