GEO:CS1
TECHNICAL INFORMATION
CS1 CIRCUIT BOARDS
The CS1 has three circuit boards. Two in the grip
frame and the battery terminal board in the top of
the foregrip, which powers the main circuit board.

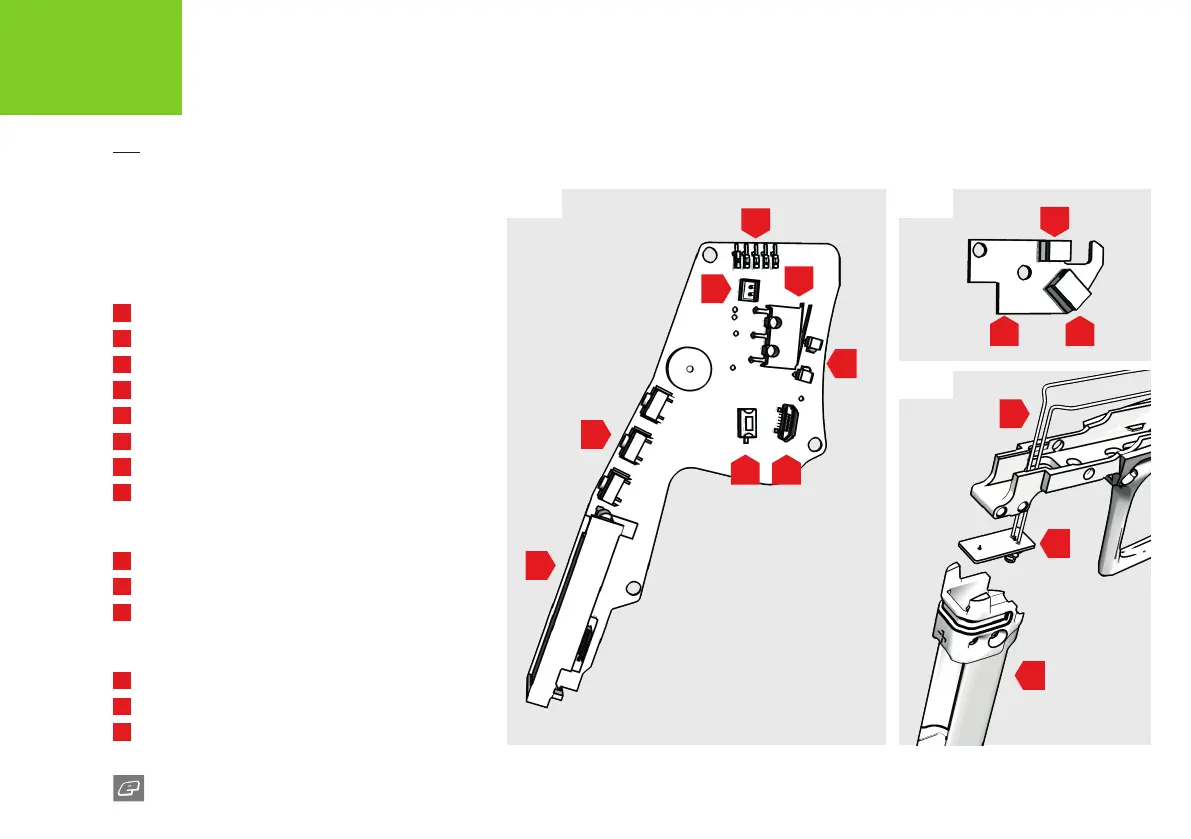

FIG-1 - CS1 primary circuit board
A
LCD module
B
Navigation console push buttons
C
Tournament lock button
D
Power supply socket
E
Microswitch
F
Trigger OPTO sensors
G
E-Portal Micro USB socket
H
Secondary circuit board connector
FIG-2 - CS1 secondary circuit board
I
Solenoid socket
J
Breech sensor socket
K
Secondary circuit board connector contacts
FIG-3 - CS1 battery terminal circuit board
L
Battery terminal circuit board
M
Primary circuit board power supply
N
Battery holder
B
M
D
A
JK
C G
I
E
H
F
L
N
