PLANET ECLIPSE GEO CS1 - Technical Information: Rear Frame Assembly

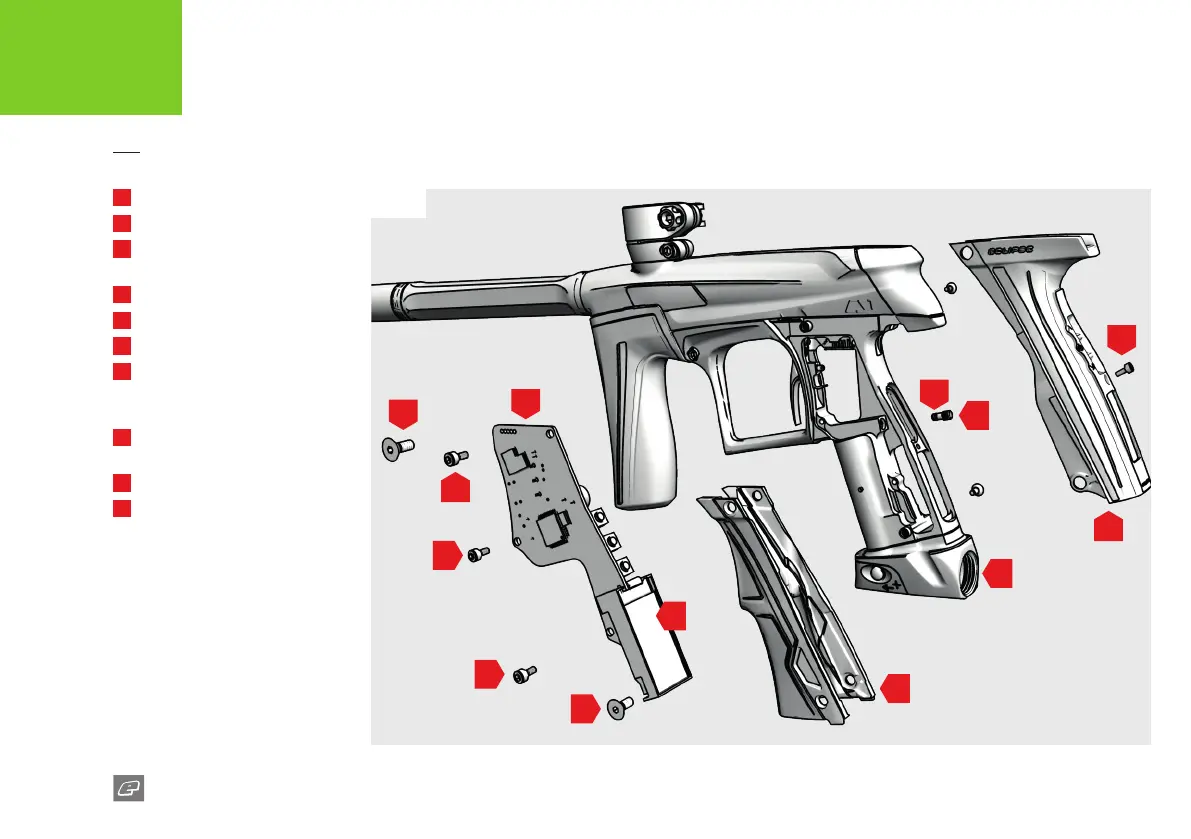

FIG-1
53
GEO:CS1
TECHNICAL INFORMATION
REAR FRAME ASSEMBLY
D
H
G
C
F
J
E
I
B
A
H
H
G
A
POPS (built into frame)
B
Frame plug
C
Rear grip screw
M2.5 x 5 socket cap-head
D
Rear grip section
E
Front grip section
F
Primary circuit board
G
Grip screws x4
6-32UNC x 5/16
countersunk socket screws
H
CS1 Circuit board screws (x3)
M2.5 x 5 socket cap-head
I
LCD module
J
2 x 1 o-ring
