PLANET ECLIPSE GEO CS1 - Technical Information: CS1 Bolt Assembly

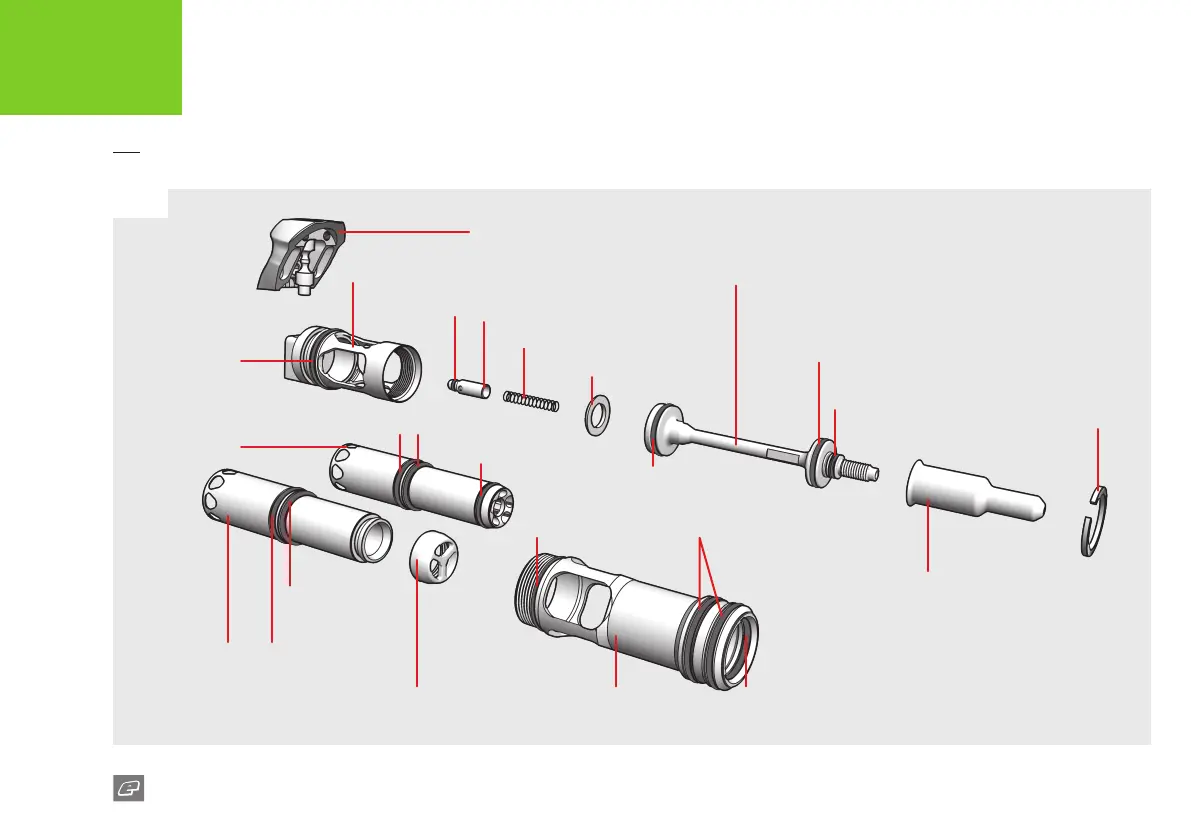

FIG-1
47
GEO:CS1
TECHNICAL INFORMATION
CS1 BOLT ASSEMBLY
Propshaft back cap
Propshaft
Pin plunger
3 x 1 o-ring
Plunger spring
14 x 2 NBR70
#020 NBR7022 x 1 NBR90
7 x 1 NBR70
Retaining ring
Propshaft bumper
Propshaft tip
14 x 2 NBR70
Bolt bonnet
ST3 bolt 14 x 2 NBR70
14 x 2 NBR70 #015 NBR90
#013 NBR70
#015 NBR90
ST3 bolt tip Bolt can #017 NBR70
#021 NBR70
ST Bolt
