PLANET ECLIPSE GEO CS1 - Technical Information: Front Frame Assembly

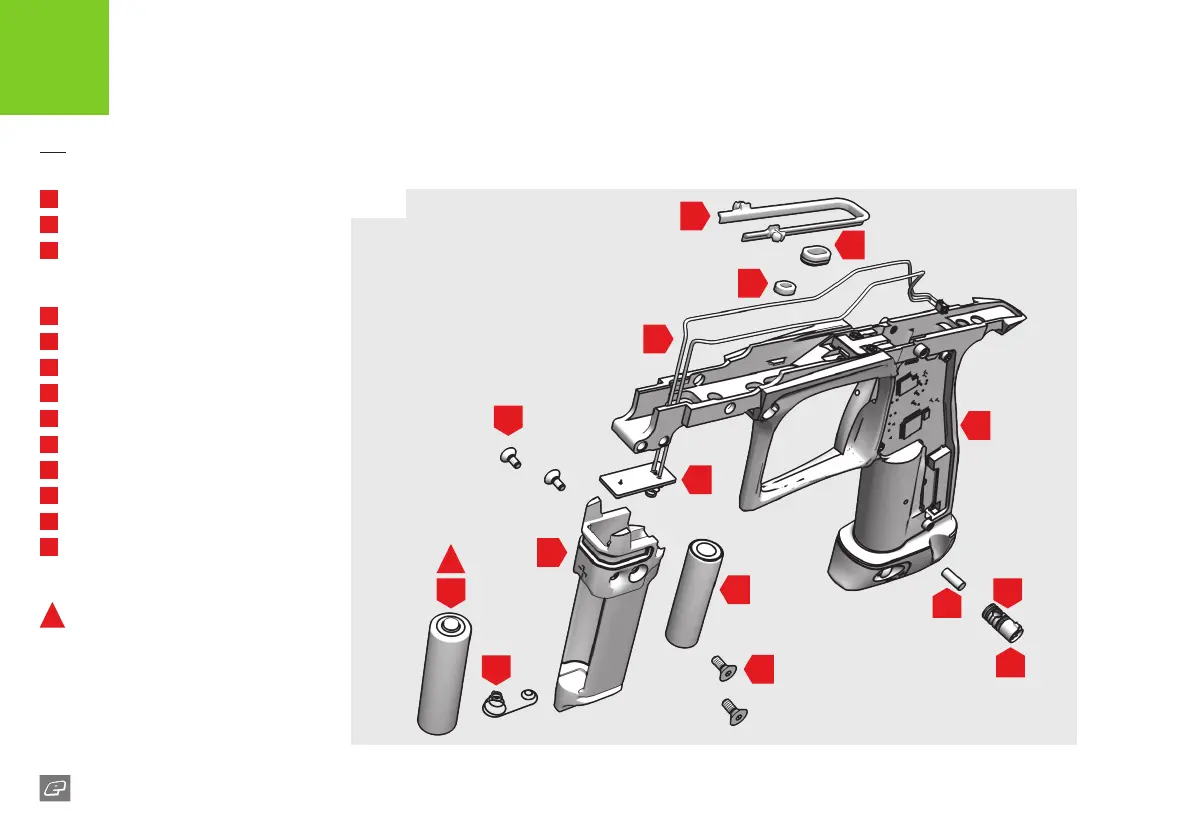

FIG-1
B
A
K
52
GEO:CS1
TECHNICAL INFORMATION
FRONT FRAME ASSEMBLY
A
AA battery
B
Battery holder
C
Battery holder screws (x4)
6-32UNC x 5/16
countersunk socket screws
D
SFR assembly
E
SFR lter
F
Frame assembly
G
Power cable
H
Wire tidy
I
Solenoid output seal
J
Solenoid input seal
K
Battery terminal circuit board
L
4 x 1 o-ring (x2)
M
Battery jumper
1
DO NOT use poor quality batteries.
D
E
C
M
L
J
F
C
A
G
I
H
1
