PLANET ECLIPSE GEO CS1 - Technical Information: Clamping Feed Tube Assembly

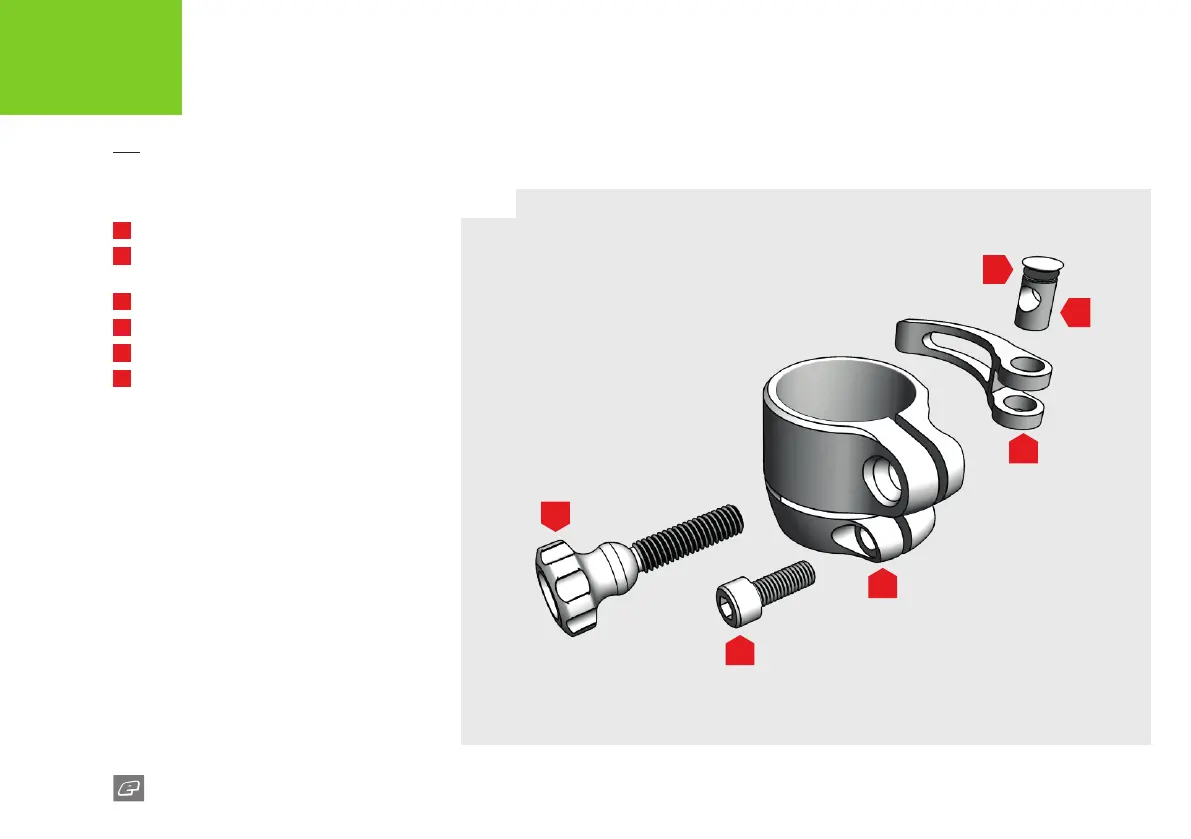

FIG-1
51
GEO:CS1
TECHNICAL INFORMATION
CLAMPING FEED TUBE ASSEMBLY
FIG-1
A
Feed neck lever screw
B
Short clamping feed screw
10-32 UNF x 1/2”
C
Feed tube
D
Feed lever
E
Feed swivel
F
Feed swivel o-ring
#006 NBR70
F
D
B
C
A
E
